Toyota NOAH/VOXY — CRANKSHAFT & PISTON

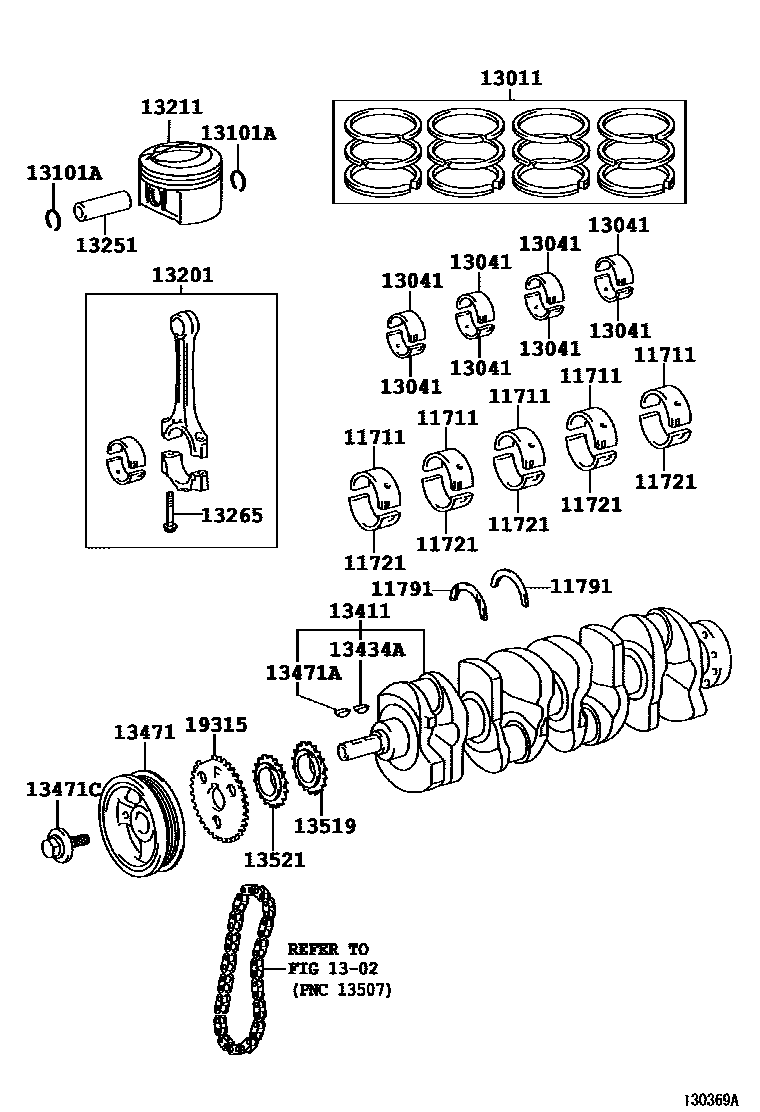

Parts diagram
11711BEARING, CRANKSHAFT
main11711-28010-01i200111-200511
sub11711-28020
main11711-28010-02i200111-200511
sub11711-28020
main11711-28010-03i200111-200511
sub11711-28020
main11711-28010-04i200111-200511
sub11711-28020
main11711-28020-01i200511
sub11711-28021
main11711-28020-02i200511
sub11711-28021
main11711-28020-03i200511
sub11711-28021
main11711-28020-04i200511
sub11711-28021
11721BEARING, CRANKSHAFT, NO.2
main11721-28010-01i200111-200511
sub11721-28020
main11721-28010-02i200111-200511
sub11721-28020
main11721-28010-03i200111-200511
sub11721-28020
main11721-28010-04i200111-200511
sub11721-28020
main11721-28020-01i200511
sub11721-28021
main11721-28020-02i200511
sub11721-28021
main11721-28020-03i200511
sub11721-28021
main11721-28020-04i200511
sub11721-28021
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-28020i200111-200408
13011RING SET, PISTON
main13011-28110i200111-200408
main13011-28200i200408
1302
13041BEARING, CONNECTING ROD
main13281-28010-01i200111-200408
sub13281-28011
main13281-28010-02i200111-200408
sub13281-28011
main13281-28010-03i200111-200408
sub13281-28011
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i200111-200408
13201ROD SUB-ASSY, CONNECTING
main13201-09790-A0i200504-200706
sub13201-09791
main13201-09790-B0i200504-200706
sub13201-09791
main13201-09790-C0i200504-200706
sub13201-09791
main13201-29125-A0i200111-200408
sub13201-29685
main13201-29125-B0i200111-200408
sub13201-29685
main13201-29125-C0i200111-200408
sub13201-29685
main13201-29685-A0i200408-200504
sub13201-29686
main13201-29685-B0i200408-200504
sub13201-29686
main13201-29685-C0i200408-200504
sub13201-29686
13211PISTON
main13211-28040-A0i200111-200408
main13211-28040-B0i200111-200408
main13211-28040-C0i200111-200408
main13211-28090-A0i200408
main13211-28090-B0i200408
main13211-28090-C0i200408
13251PIN, PISTON
main13251-28010-A0i200111-200612
sub13251-28020
main13251-28010-B0i200111-200612
sub13251-28020
main13251-28010-C0i200111-200612
sub13251-28020
main13251-28020-A0i200612
main13251-28020-B0i200612
main13251-28020-C0i200612
13265BOLT, CONNECTING ROD
main13265-28010i200111-200408
sub13265-28020
13411CRANKSHAFT
main13411-28040i200112-200408
main13411-28902i200111-200112
sub13411-28040
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30416i200111-200408
13471PULLEY, CRANKSHAFT
main13470-28020i200111-200408
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30416i200111-200408
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-14106i200111-200408
13519GEAR, OIL PUMP DRIVE
main13519-28010i200111-200408
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-28010i200111-200601
sub13521-28030
main13521-28030i200601
19315PLATE, CRANK ANGLE SENSOR, NO.1
main19315-28010i200111-200408

19 parts on this diagram · 1 diagram in section
