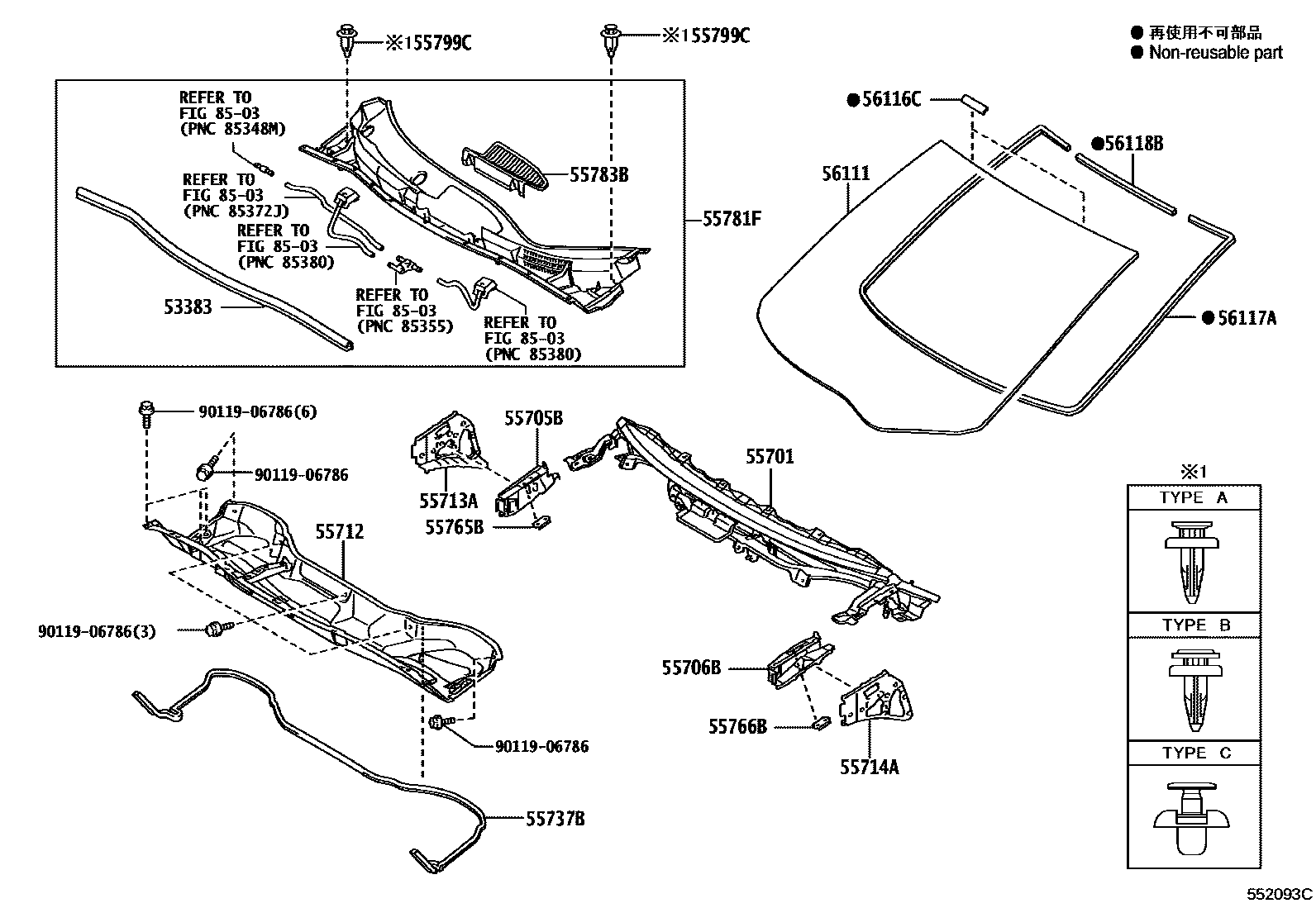

Toyota NOAH/VOXY — COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-28070iZRR7#..CBU,IV5200706-201004

55701PANEL SUB-ASSY, COWL

main55700-28070iZRR7#..CBU,IV5200706-200805

main55700-28071iZRR7#..CBU,IV5200805-201004

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-28040iZRR7#..CBU,IV5200706-201004

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-28070iZRR7#..CBU,IV5200706-201004

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-28170iZRR7#..CBU,IV5200706-201004

55713APANEL, COWL TOP SIDE, RH

main55713-28050iZRR7#..CBU,IV5200706-201004

55714APANEL, COWL TOP SIDE, LH

main55714-28040iZRR7#..CBU,IV5200706-201004

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-28040iZRR7#..CBU,IV5200706-201004

55765BBRACKET, HOOD DAMPER MOUNTING

main55765-44010iZRR7#..CBU,IV5200706-201004

55766BBRACKET, HOOD DAMPER MOUNTING

main55765-44010iZRR7#..CBU,IV5200706-201004

55781FLOUVER, COWL TOP VENTILATOR

main55708-28210supersedes 55708-28202iZRR7#..CBU,IV5200706-200712

main55708-28211supersedes 55708-28202iZRR7#..CBU,IV5200801-200804

main55708-28212supersedes 55708-28202iZRR7#..CBU,IV5200805-201004

main55708-28213supersedes 55708-28203iZRR7#..CBU,IV5201203-201401

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-28080supersedes 55783-28070iZRR7#..CBU,IV5200706-201004

55799CCLIP, COWL TOP VENTILATOR LOUVER

main53879-60010×2iZRR7#..CBU,IV5201004-201401

main55799-28010×2iZRR7#..CBU,IV5201004-201401

main55799-28020×2iZRR7#..CBU,IV5200706-201004

56111GLASS, WINDSHIELD

main56101-28400supersedes 56101-28381iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)200706-200804

main56101-28401supersedes 56101-28381iZRR7#..(S,SI,TRASX,X,YY,Z,ZS)..(CBU,IV5)200805-201004

main56101-28410supersedes 56101-28391iZRR7#..G,V200706-200804

main56101-28411supersedes 56101-28391iZRR7#..G,V201004-201401

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZRR7#..CBU,IV5201309-201401

main56116-35050×2iZRR7#..CBU,IV5201004-201308

56117ADAM, WINDOW GLASS ADHESIVE

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

8503

9011906786

main90119-06786

19 parts on this diagram · 2 diagrams in section
