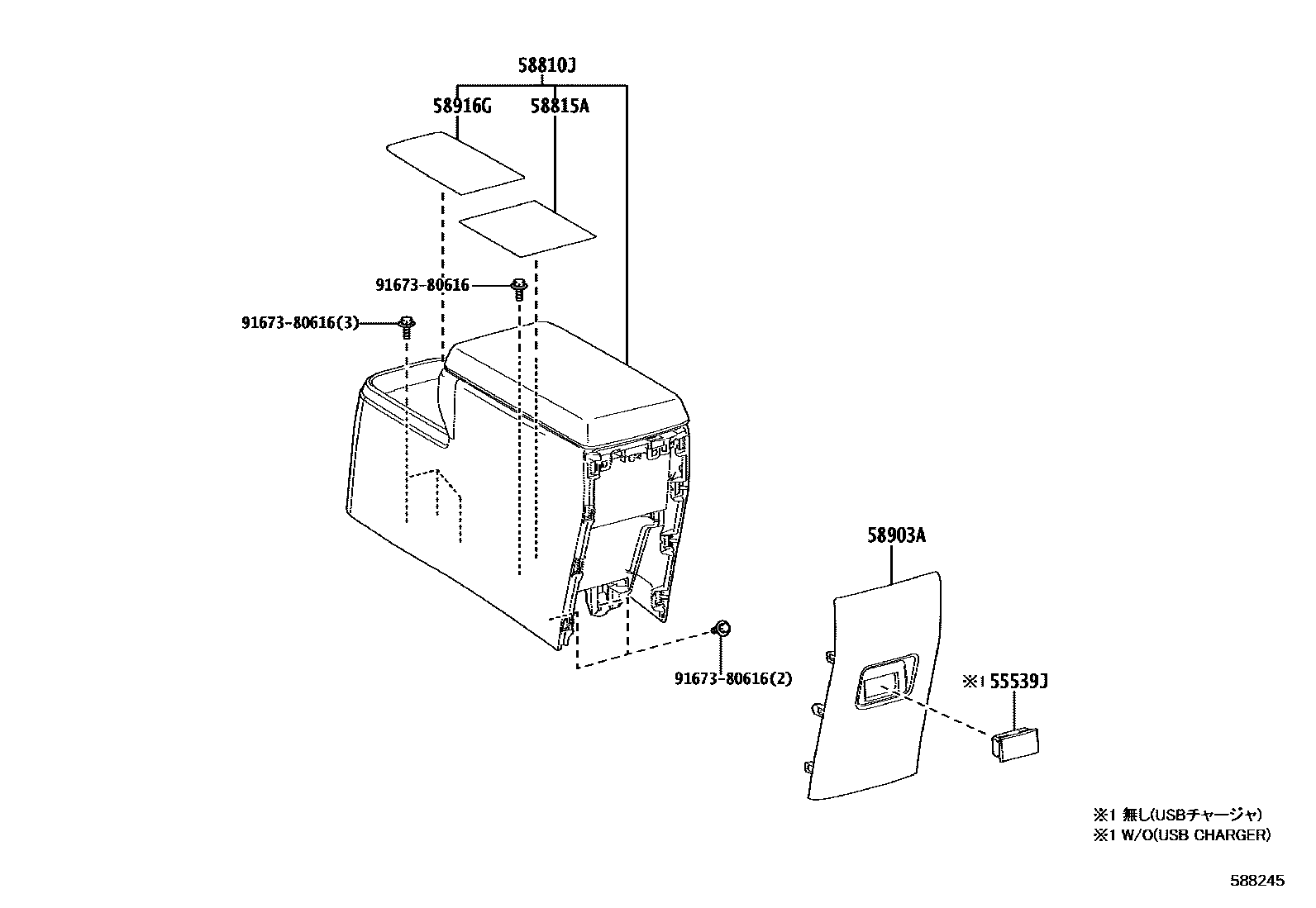

Toyota NOAH/VOXY — CONSOLE BOX & BRACKET

0001 1 0002 1

55539JCOVER, SPARE SWITCH HOLE

main55539-26210-C0iMZRA90,95,ZWR90,95..Z202201-202501

BLACK

58810JBOX ASSY, CONSOLE

main58810-V1010-C0iZWR9#..X202201

BLACK,TRIM1#

main58810-V1030-C0iMZRA90,95..SZ202201

main58810-V1040-C0iZWR90,95..G202201-202501

main58810-V1070-C0iZWR9#..SG202201

BLACK,TRIM2#

58815ACARPET, CONSOLE BOX

main58815-V1020iMZRA9#..G;MZRA92..08S..SG;MZRA95..SG..IV5202201-202501

main58815-V1030iZWR9#..G,Z202201-202501

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-V1010-C0iMZRA9#..G202201-202501

BLACK,TRIM0#,2#

main58903-V1020-C0iZWR90,95..SG202201

58916GMAT, BOX BOTTOM, NO.2

main58916-V1020iMZRA90,95..SZ202201

main58916-V1030iZWR90,95..G202201-202501

9167380616

main91673-80616

6 parts on this diagram · 2 diagrams in section
