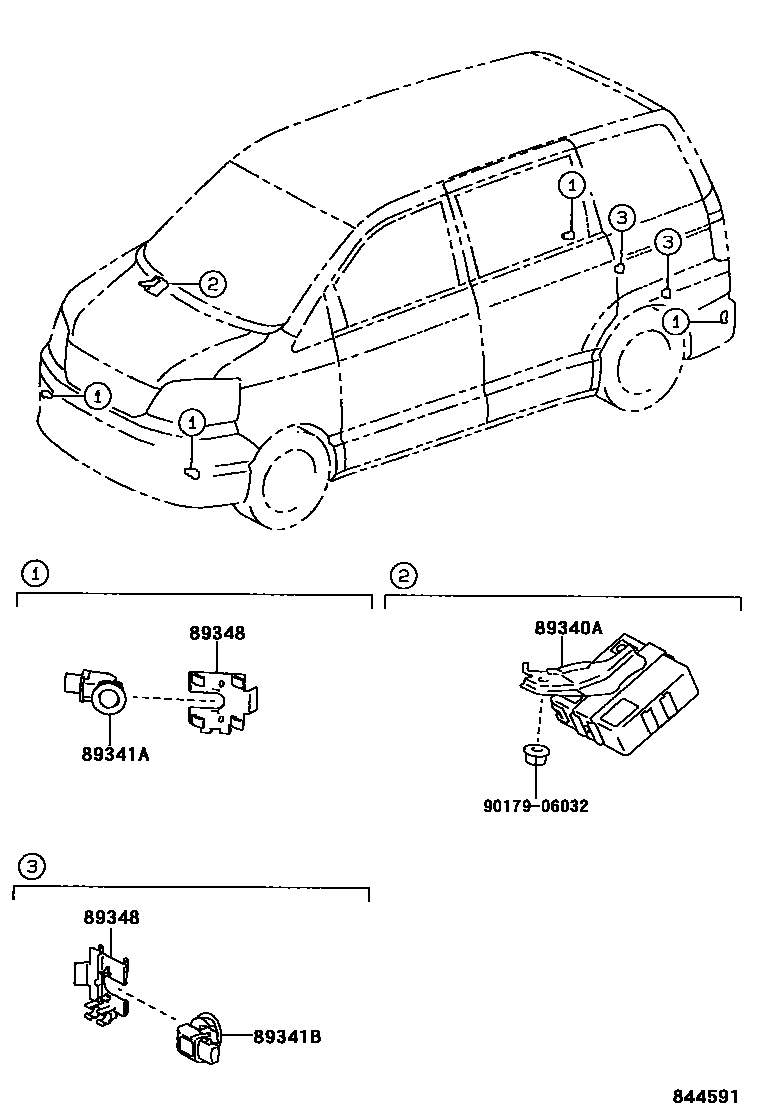

Toyota NOAH/VOXY — CLEARANCE & BACK SONAR

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-28130i200111-200408

main89340-28170i200408

main89340-28180i200408

89341ASENSOR, ULTRASONIC, NO.1

main89341-28370×4i200111-200408

main89341-28430×4i200408

89341BSENSOR, ULTRASONIC, NO.2

main89341-28360×2i200111-200408

main89341-28440×2i200408

89348RETAINER, ULTRASONIC SENSOR, NO.1

main89348-28040×6i200111-200408

main89348-28060×4i200408

9017906032

main90179-06032

5 parts on this diagram · 2 diagrams in section

CLEARANCE & BACK SONAR for Toyota NOAH/VOXY

This section contains 7 genuine Toyota parts for the CLEARANCE & BACK SONAR system of the Toyota NOAH/VOXY. Key components include: COMPUTER ASSY, CLEARANCE WARNING, SENSOR, ULTRASONIC, NO.1, SENSOR, ULTRASONIC, NO.2, RETAINER, ULTRASONIC SENSOR, NO.1, RETAINER, ULTRASONIC SENSOR, NO.2.
