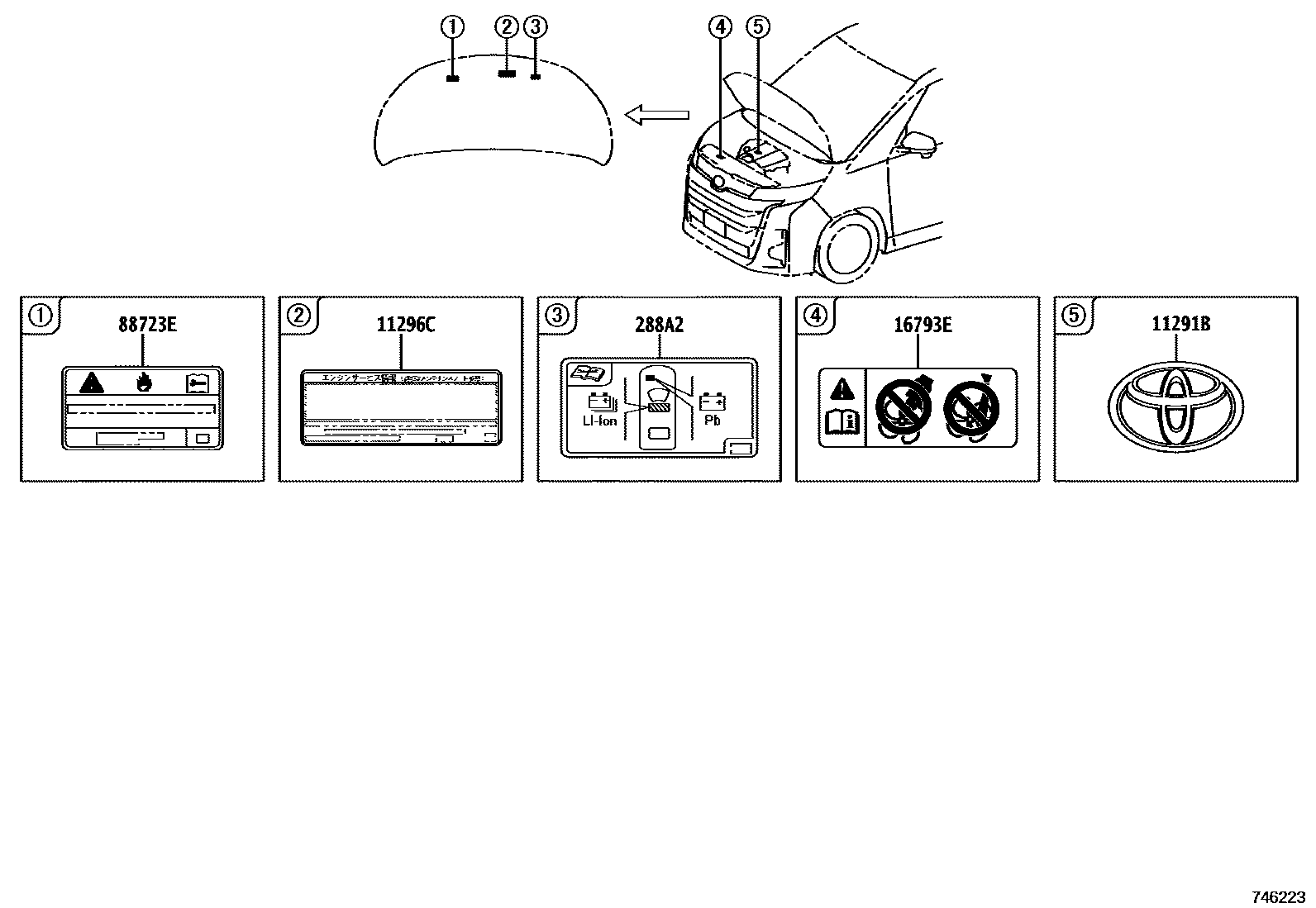

Toyota NOAH/VOXY — CAUTION PLATE

0001 1ENGINE ROOM 0002 1EXTERIOR(1/2) 0003 1EXTERIOR(2/2) 0004 1INTERIOR(1/2) 0005 1INTERIOR(2/2)

11291BPLATE, ENGINE NAME

main11291-37100i2ZRFXE..ZWR9#..SG,SZ,X202201-202502

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-24020iM20AFKS..MZRA95..IV5;M20AFKS..MZRA92..08S..SG;M20AFKS,2ZRFXE..MZRA9#,ZWR9#..G,Z202201-202501

16793ELABEL, COOLING FAN CAUTION

main16793-36030iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS,2ZRFXE..MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201

288A2LABEL, BATTERY LOCATION

main288A2-V1010i2ZRFXE..ZWR9#..G,Z202201-202501

88723ELABEL, COOLER SERVICE CAUTION

main88723-60410iMZRA9#..G,Z;MZRA95..IV5;MZRA92..08S..SG202309-202501

main88723-V1010iMZRA9#202201-202309

main88723-V1020iZWR9#..G,Z202201-202501

5 parts on this diagram · 5 diagrams in section
