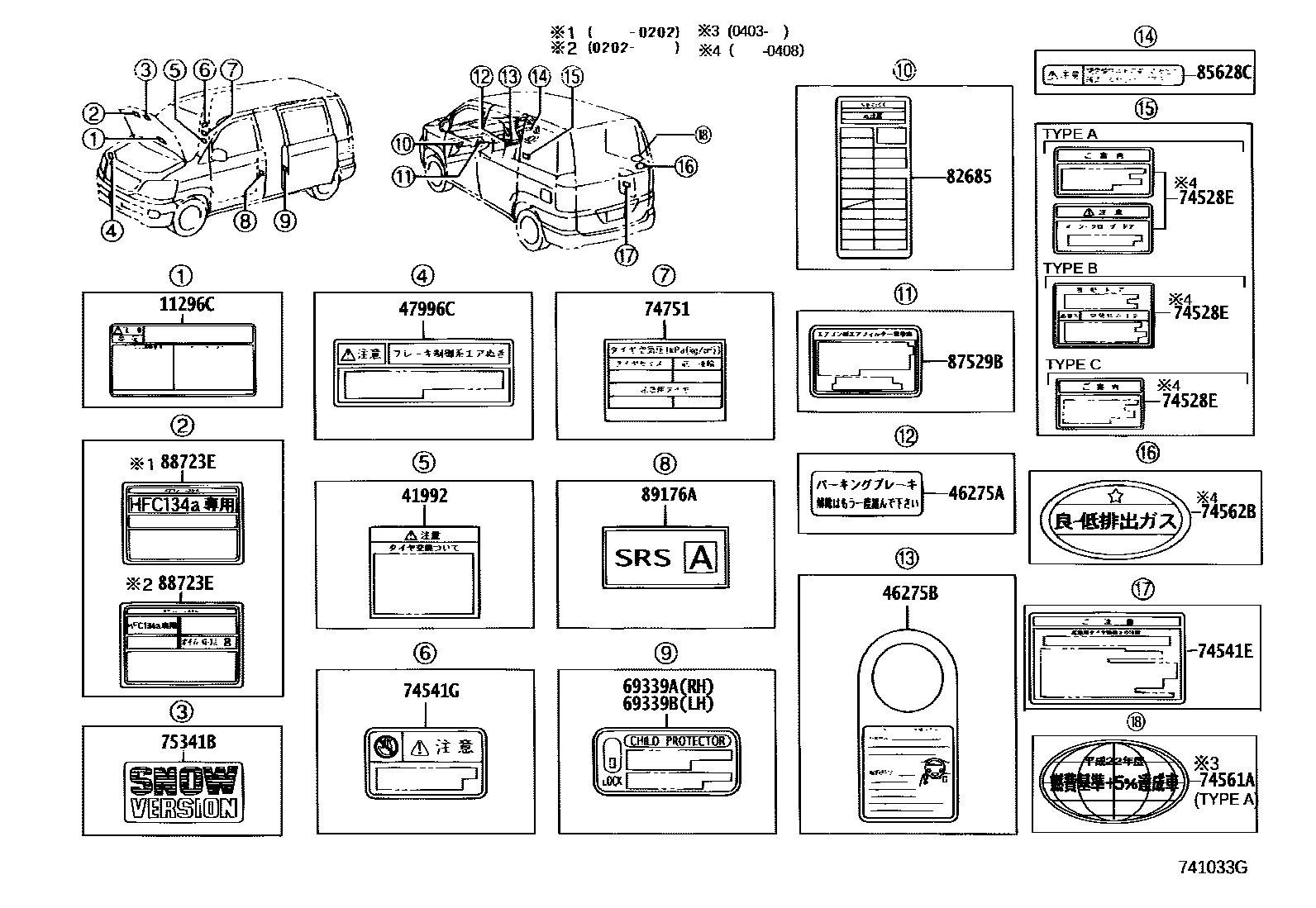

Toyota NOAH/VOXY — CAUTION PLATE
11296CLABEL, ENGINE SERVICE INFORMATION
41992LABEL, DIFFERENTIAL NOTICE
46275ALABEL, PARKING BRAKE RELEASE INFORMATION, NO.1
WHITE,TRIM1#
WHITE,TRIM1#
46275BLABEL, PARKING BRAKE RELEASE INFORMATION, NO.2
47996CLABEL, BRAKE BLEED CAUTION
69339APLATE, CHILD PROTECTOR LOCK CAUTION
69339BPLATE, CHILD PROTECTOR LOCK CAUTION
74541EPLATE, COMPACT SPARE TIRE CAUTION
74541GPLATE, SAFETY CAUTION
sub74541-26010
74561ALABEL, FUEL CONSUMPTION INFORMATION
74562BLABEL, EMISSION INFORMATION
74751LABEL, TIRE PRESSURE INFORMATION
75341BPLATE, HOOD NAME
82685PLATE, CAUTION
85628CLABEL, AUTOMATIC DOOR
sub85628-58010
87529BLABEL, A/C FILTER INFORMATION
89176ALABEL, AIRBAG DEPLOYMENT INFORMATION
19 parts on this diagram · 2 diagrams in section
