Toyota NOAH/VOXY — BRAKE PEDAL & BRACKET

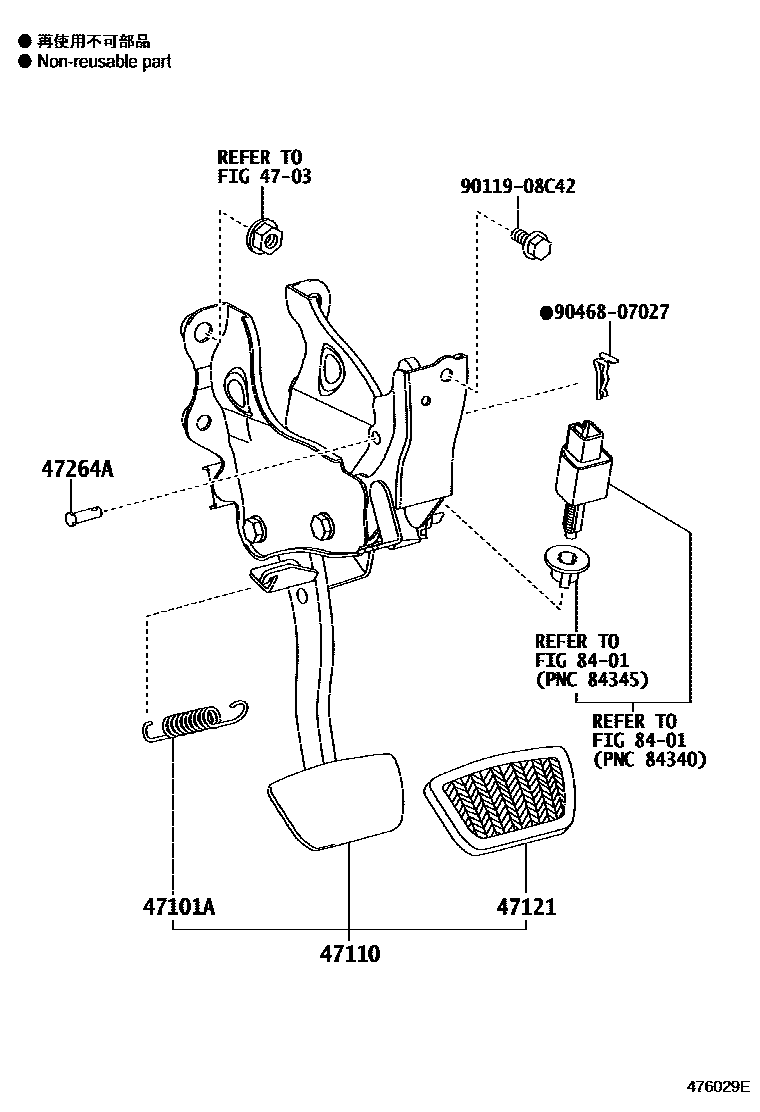

Parts diagram

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47101ASPRING(FOR BRAKE PEDAL RETURN)

main47146-28020i201004-201401

47110SUPPORT ASSY, BRAKE PEDAL

main47110-28210i200706-201001

main47110-28211i201002-201004

main47110-WY030i201109-201401

47121PAD, BRAKE PEDAL

main47121-42010i200706-201004

main47121-D8010i201006-201109

47264APIN(FOR PUSH ROD)

main90240-08078i200706-201004

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9046807027

main90468-07027

8 parts on this diagram · 3 diagrams in section

BRAKE PEDAL & BRACKET for Toyota NOAH/VOXY

This section contains 8 genuine Toyota parts for the BRAKE PEDAL & BRACKET system of the Toyota NOAH/VOXY. Key components include: BRAKE BOOSTER & VACUUM TUBE, SPRING(FOR BRAKE PEDAL RETURN), SUPPORT ASSY, BRAKE PEDAL, PAD, BRAKE PEDAL, PIN(FOR PUSH ROD).
