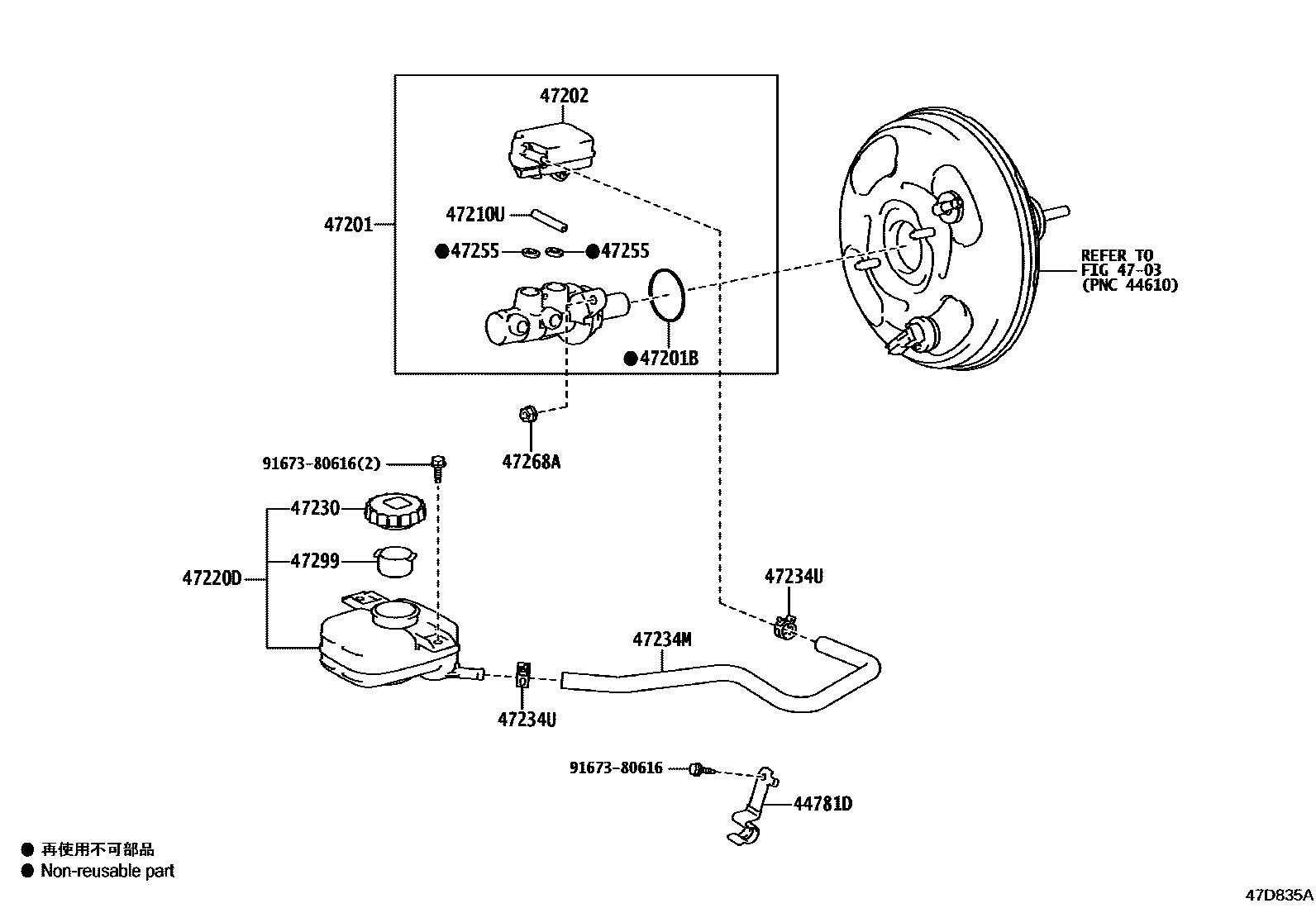

Toyota NOAH/VOXY — BRAKE MASTER CYLINDER

44781DBRACKET, RESERVOIR HOSE

main44781-V1010i202201

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-28740i202201

main47201-29045i202201

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002i202201-202501

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-28360i202201

main47220-29015i202201-202501

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-15803i202201-202501

main90069-35007i202201-202501

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-V1010i202201

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090i202201-202501

47234MHOSE, RESERVOIR, NO.1

main47234-V1010i202201

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96136-41801×2i202201-202501

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040i202201-202501

main90029-48001×2i202201-202501

47268ANUT, BRAKE MASTER CYLINDER

main90179-08204×2i202201-202501

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060i202201-202501

9167380616

main91673-80616

14 parts on this diagram · 2 diagrams in section

BRAKE MASTER CYLINDER for Toyota NOAH/VOXY

This section contains 18 genuine Toyota parts for the BRAKE MASTER CYLINDER system of the Toyota NOAH/VOXY. Key components include: BRACKET, RESERVOIR HOSE, GASKET, BRAKE BOOSTER, BRAKE BOOSTER & VACUUM TUBE, CYLINDER SUB-ASSY, BRAKE MASTER, RING, O(FOR BRAKE MASTER CYLINDER).
