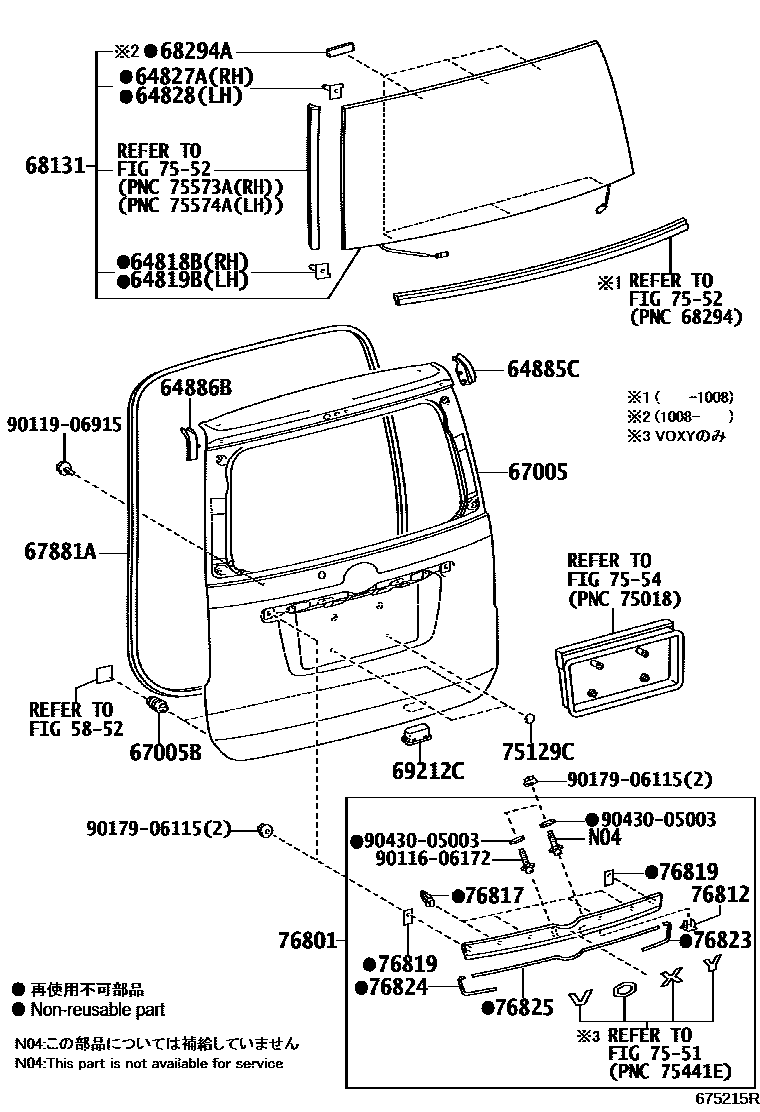

Toyota NOAH/VOXY — BACK DOOR PANEL & GLASS
5852REAR FLOOR PANEL & REAR FLOOR MEMBER
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
64885CCHANNEL, BACK DOOR GLASS, RH
64886BCHANNEL, BACK DOOR GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
68294ADAM, BACK DOOR GLASS ADHESIVE
69212CHANDLE, BACK DOOR INSIDE
main69212-12190-C0iZRR7#..G; ZRR7#..NOAH..X..(CBU,IV5); ZRR7#..VOXY..X..(CBU,IV5);ZRR7#..(S,SI,TRASX,V,YY,Z,ZS)..(CBU,IV5)200706-200803
BLACK,TRIM1#; BLACK,TRIM1#,4#; BLACK,TRIM4#
main74811-28020-C0iZRR7#..G; ZRR70..(SI,ZS)..IV5;ZRR7#..VOXY..X..(CBU,IV5);ZRR7#..(S,TRASX,V,YY,Z,ZS)..CBU; ZRR70..NOAH..X..IV5;ZRR70..NOAH..(SI,X)..CBU;ZRR75..NOAH..(SI,X)..(CBU,IV5)201004-201401
BLACK,TRIM2#; BLACK,TRIM2#,4#; BLACK,TRIM4#
75129CCUSHION, REAR LICENCE PLATE
7551EMBLEM & NAME PLATE
7552MOULDING
7554TOOL BOX & LICENSE PLATE BRACKET
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
WHITE PEARL CS.,070
SILVER ME.,1F7
GRAY ME.,1G3
BLACK,202
DK. RED M.M.,3Q3
DEEP RED M.M.,3R9
SILKY GOLD M.M.,5A4
DK.BLUE MC.,8S6
LT.BLUE M.M.,8S7
DK.VIOLET M.M.,9AF
76812GARNISH, BACK DOOR, OUTSIDE LOWER
76817CLIP, BACK DOOR OUTSIDE GARNISH
76819SEAL, BACK DOOR OUTSIDE GARNISH
76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH
76824PROTECTOR, BACK DOOR GARNISH MOULDING, LH
76825PROTECTOR, BACK DOOR OUTSIDE GARNISH
9011606172
main90116-06172
9011906915
main90119-06915
9017906115
main90179-06115
9043005003
main90430-05003
28 parts on this diagram · 2 diagrams in section
BACK DOOR PANEL & GLASS for Toyota NOAH/VOXY
This section contains 43 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota NOAH/VOXY. Key components include: REAR FLOOR PANEL & REAR FLOOR MEMBER, SPACER, BACK DOOR GLASS, NO.1, SPACER, BACK WINDOW GLASS, NO.2, CLIP, BACK WINDOW GLASS, RH, CLIP, BACK WINDOW GLASS, LH.
