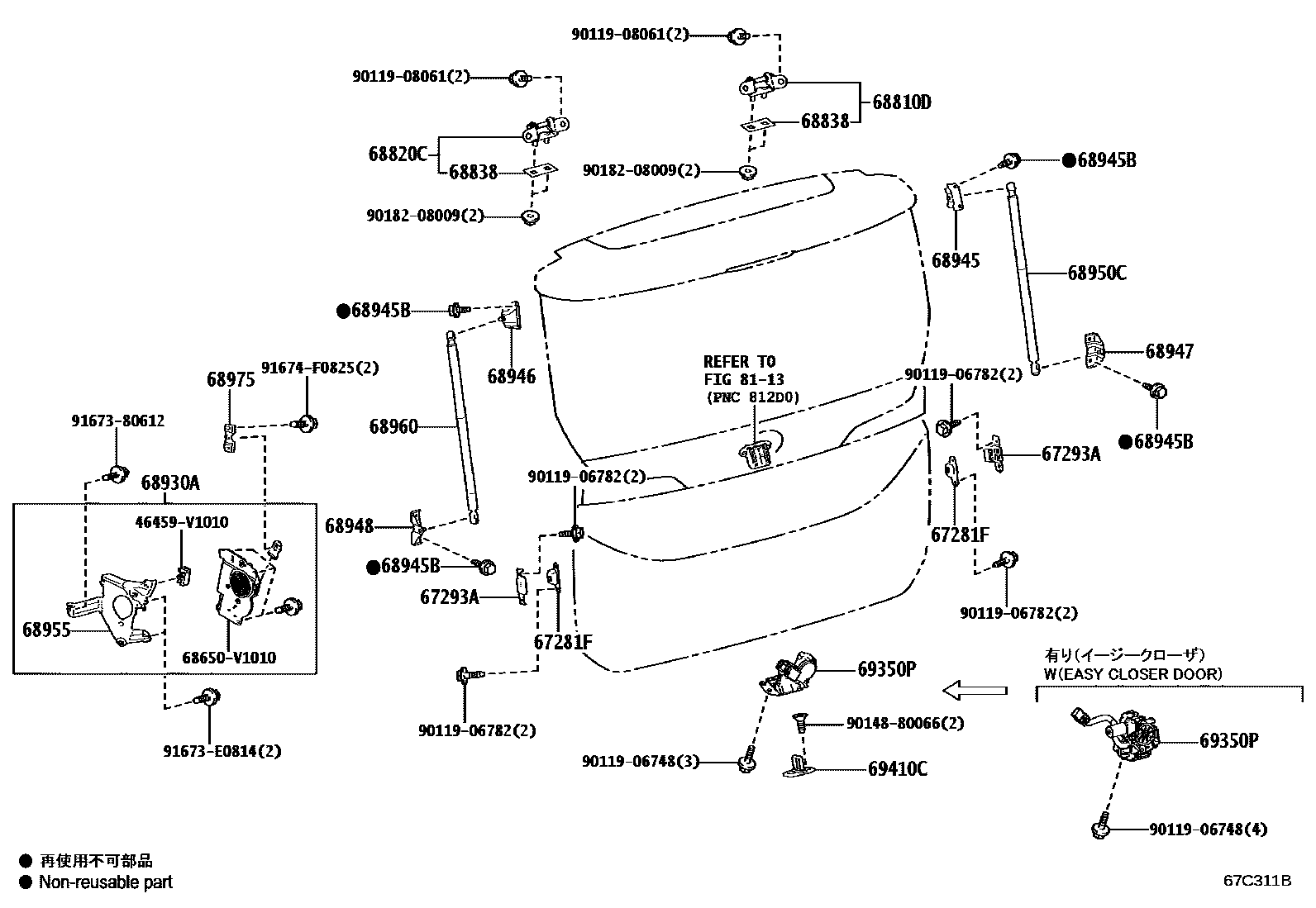

Toyota NOAH/VOXY — BACK DOOR LOCK & HINGE
67281FSTOPPER, BACK DOOR, LOWER
67293ACUSHION, BACK DOOR STOPPER
68810DHINGE ASSY, BACK DOOR, RH
68820CHINGE ASSY, BACK DOOR, LH
68838PAD, BACK DOOR HINGE, NO.1
68930ASUPPORT ASSY, BACK DOOR
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68945BBOLT, BACK DOOR DAMPER STAY BRACKET
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH
68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH
68950CSTAY ASSY, BACK DOOR, RH
68955BRACKET, BACK DOOR STAY
68960STAY ASSY, BACK DOOR, LH
68975PLATE, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
main69350-28180iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA92,97,ZWR92..G;MZRA90,95,ZWR90,95..Z202201-202501
69410CPLATE ASSY, BACK DOOR LOCK STRIKER
8113REAR LICENSE PLATE LAMP
46459V1010GUIDE, CABLE
main46459-V1010
68650V1010CHECK ASSY, BACK DOOR
main68650-V1010
9011906748
main90119-06748
9011906782
main90119-06782
9011908061
main90119-08061
9014880066
main90148-80066
9018208009
main90182-08009
9167380612
main91673-80612
91673E0814
main91673-E0814
91674F0825
main91674-F0825
28 parts on this diagram · 2 diagrams in section
BACK DOOR LOCK & HINGE for Toyota NOAH/VOXY
This section contains 36 genuine Toyota parts for the BACK DOOR LOCK & HINGE system of the Toyota NOAH/VOXY. Key components include: STOPPER, BACK DOOR, LOWER, CUSHION, BACK DOOR STOPPER, HINGE ASSY, BACK DOOR, RH, HINGE ASSY, BACK DOOR, LH, PAD, BACK DOOR HINGE, NO.1.
