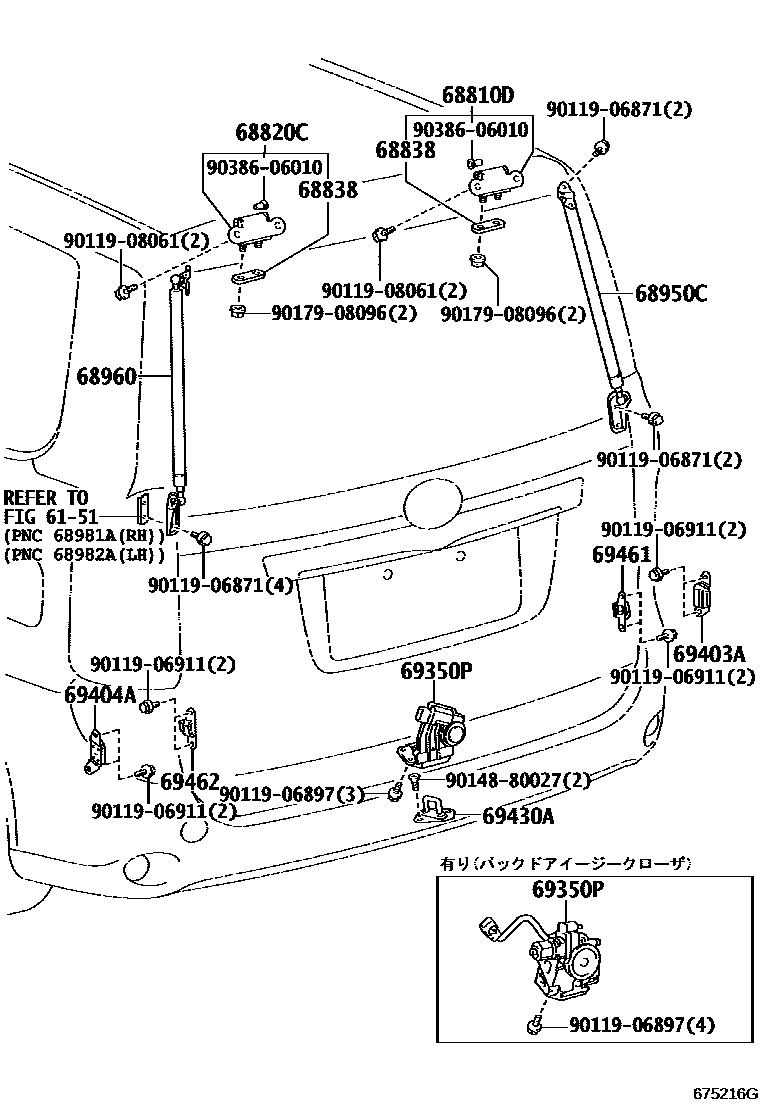

Toyota NOAH/VOXY — BACK DOOR LOCK & HINGE

0001 1 0002 1���������������

6151

68810DHINGE ASSY, BACK DOOR, RH

main68810-21050iZRR7#..CBU,IV5200706-201401

68820CHINGE ASSY, BACK DOOR, LH

main68810-21050iZRR7#..CBU,IV5200706-201401

68838PAD, BACK DOOR HINGE, NO.1

main68838-44020iZRR7#..CBU,IV5200706-201401

68950CSTAY ASSY, BACK DOOR, RH

main68950-28380iZRR7#..CBU200706-201001

sub68950-28381

main68950-28381iZRR7#..CBU201002-201208

sub68950-28382

main68950-28382iZRR7#..CBU201209-201401

68960STAY ASSY, BACK DOOR, LH

main68960-28380iZRR7#..CBU200706-201001

sub68960-28381

main68960-28381iZRR7#..CBU201002-201208

sub68960-28382

main68960-28382iZRR7#..CBU201209-201401

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-28150iZRR7#..CBU,IV5200706-201401

sub69350-28151

69403ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, RH

main67293-28030iZRR7#..CBU,IV5200706-201401

69404ASTOPPER SUB-ASSY, BACK DOOR SIDE FEMALE, LH

main67294-28020iZRR7#..CBU,IV5200706-201401

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-28050iZRR7#..CBU200706-201401

69461STOPPER, BACK DOOR SIDE MALE, RH

main67281-28010iZRR7#..CBU,IV5200706-201401

69462STOPPER, BACK DOOR SIDE MALE, LH

main67282-28010iZRR7#..CBU,IV5200706-201401

9011906871

main90119-06871

9011906897

main90119-06897

9011906911

main90119-06911

9011908061

main90119-08061

9014880027

main90148-80027

9017908096

main90179-08096

9038606010

main90386-06010

19 parts on this diagram · 2 diagrams in section
