Toyota NOAH/VOXY — ARMREST & VISOR

0001 1������ 0002 1����� & ����������

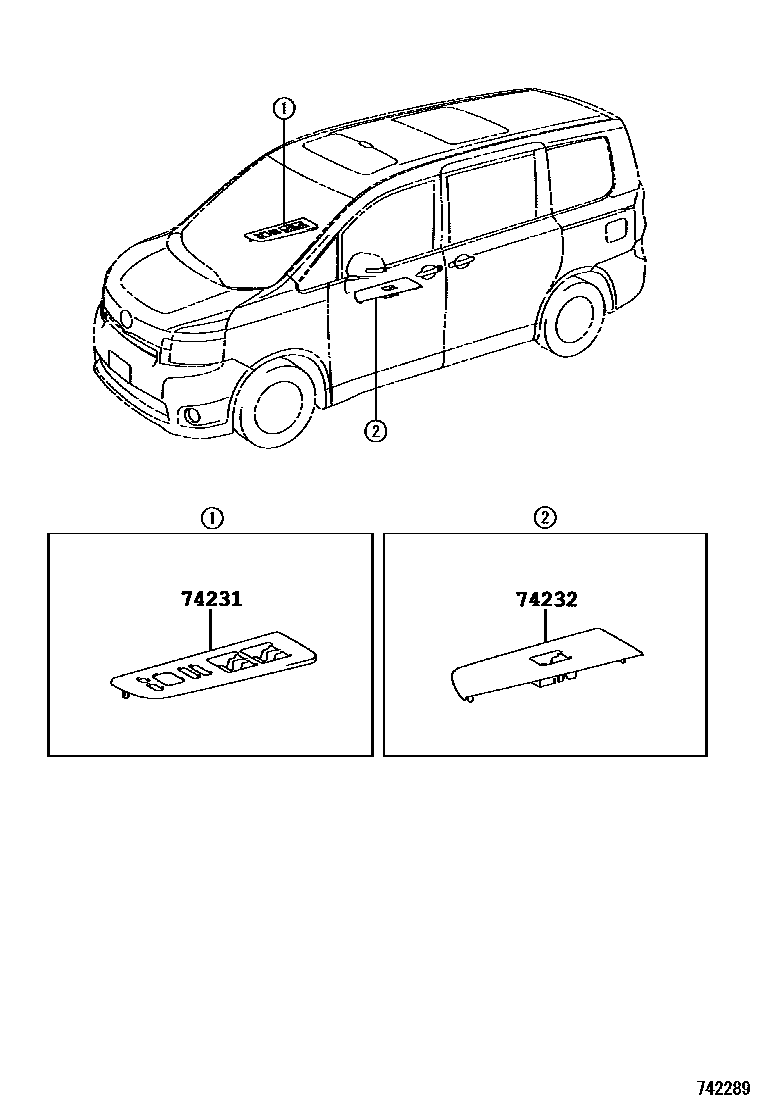

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-28A10-B1iZRR7#..(TRASX,X,YY)..(CBU,IV5)200706-201004

DK.GRAY,TRIM1#

main74231-28A10-C0iZRR7#..(TRASX,X,YY)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main74231-28A10-E1iZRR7#..NOAH..X..(CBU,IV5)201004-201401

ASH BROWN,TRIM4#

main74231-28A20iZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

main74231-28B20iZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)201004-201401

main74231-28A30iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

main74231-28A60iZRR70..(SI,ZS)..CBU201006-201106

main74231-28A61iZRR70..(SI,ZS)..CBU201106-201401

main74231-28B30iZRR70..(G,S,SI,V,Z,ZS)..CBU;ZRR75..07S..(G,S,SI,V,Z,ZS)..CBU201004-201401

main74231-28B40iZRR70..(SI,ZS)..CBU201006-201106

main74231-28B41iZRR70..(SI,ZS)..CBU201106-201401

main74231-28B50iZRR7#..SI..CBU201106-201204

main74231-28B60iZRR7#..ZS..CBU201305-201401

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-28580-B1iZRR7#..(TRASX,X,YY)..(CBU,IV5)200706-201004

DK.GRAY,TRIM1#

main74232-28580-C0iZRR7#..(TRASX,X,YY)..(CBU,IV5)201004-201401

BLACK,TRIM2#

main74232-28580-E1iZRR7#..NOAH..X..(CBU,IV5)201004-201401

ASH BROWN,TRIM4#

main74232-28590iZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)200706-201004

main74232-28660iZRR7#..(G,S,SI,V,Z,ZS)..(CBU,IV5)201004-201401

main74232-28610iZRR70..(SI,ZS)..CBU201006-201106

main74232-28611iZRR70..(SI,ZS)..CBU201106-201401

main74232-28670iZRR7#..SI..CBU201106-201204

main74232-28680iZRR7#..ZS..CBU201210-201305

2 parts on this diagram · 2 diagrams in section
