Toyota NOAH/VOXY — ANTENNA
86077COVER KIT, ANTENNA
main86077-28010-A0supersedes 86077-60020-A1iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502
main86077-28010-B0supersedes 86077-60020-B2iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501
main86077-28010-B1supersedes 86077-60020-B3iMZRA92..VOXY..07S;MZRA90,95,ZWR9#..VOXY..CBU202201-202502
main86077-28010-C0supersedes 86077-60020-C1iMZRA95..IV5;MZRA92..08S..SG;MZRA9#,ZWR9#..G,Z202201-202501
main86077-28010-C1supersedes 86077-60020-C3iMZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97,ZWR9#..(SG,SZ,X)..CBU202201-202502
main86077-28010-D0supersedes 86077-60020-D0iMZRA92..NOAH..07S..SG;MZRA90,95,ZWR9#..NOAH..(SG,SZ)..CBU202201-202502
86101CORD SUB-ASSY, ANTENNA
main86101-V1020supersedes 86101-V1180iMZRA9#,ZWR9#..X..CBU; MZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202502
main86101-V1030supersedes 86101-V1180iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA95..X..IV5202201-202501
main86101-V1040supersedes 86101-V1180iMZRA9#,ZWR9#..X..CBU; MZRA92..07S..SG;MZRA90,95,ZWR9#..(SG,SZ)..CBU202201-202502
main86101-V1170supersedes 86101-V1030iMZRA92..08S..SG;MZRA95..SG..IV5;MZRA9#,ZWR9#..G,Z; MZRA95..X..IV5202201-202501
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
main86101-V1080supersedes 86101-V1070iMZRA9#,ZWR9#..X..CBU; MZRA92..07S..SG;MZRA90,95,ZWR9#..SG..CBU202201-202605
main86101-V1090supersedes 86101-V1070iMZRA9#,ZWR9#..X..CBU; MZRA92..07S..SG;MZRA90,95,ZWR9#..SG..CBU202201-202605
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86300BANTENNA ASSY, AMPLIFIER, NO.1
86760AANTENNA ASSY, TELEPHONE
main86760-62030iZWR9#..X;MZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97..(SG,SZ,X)..CBU202201-202605
86769HOUSING, ROOF ANTENNA
main86769-62010iZWR9#..X;MZRA92..08S..X;MZRA92..07S..(SG,X);MZRA90,95,97..(SG,SZ,X)..CBU202201-202605
9011906A06
main90119-06A06
10 parts on this diagram · 1 diagram in section

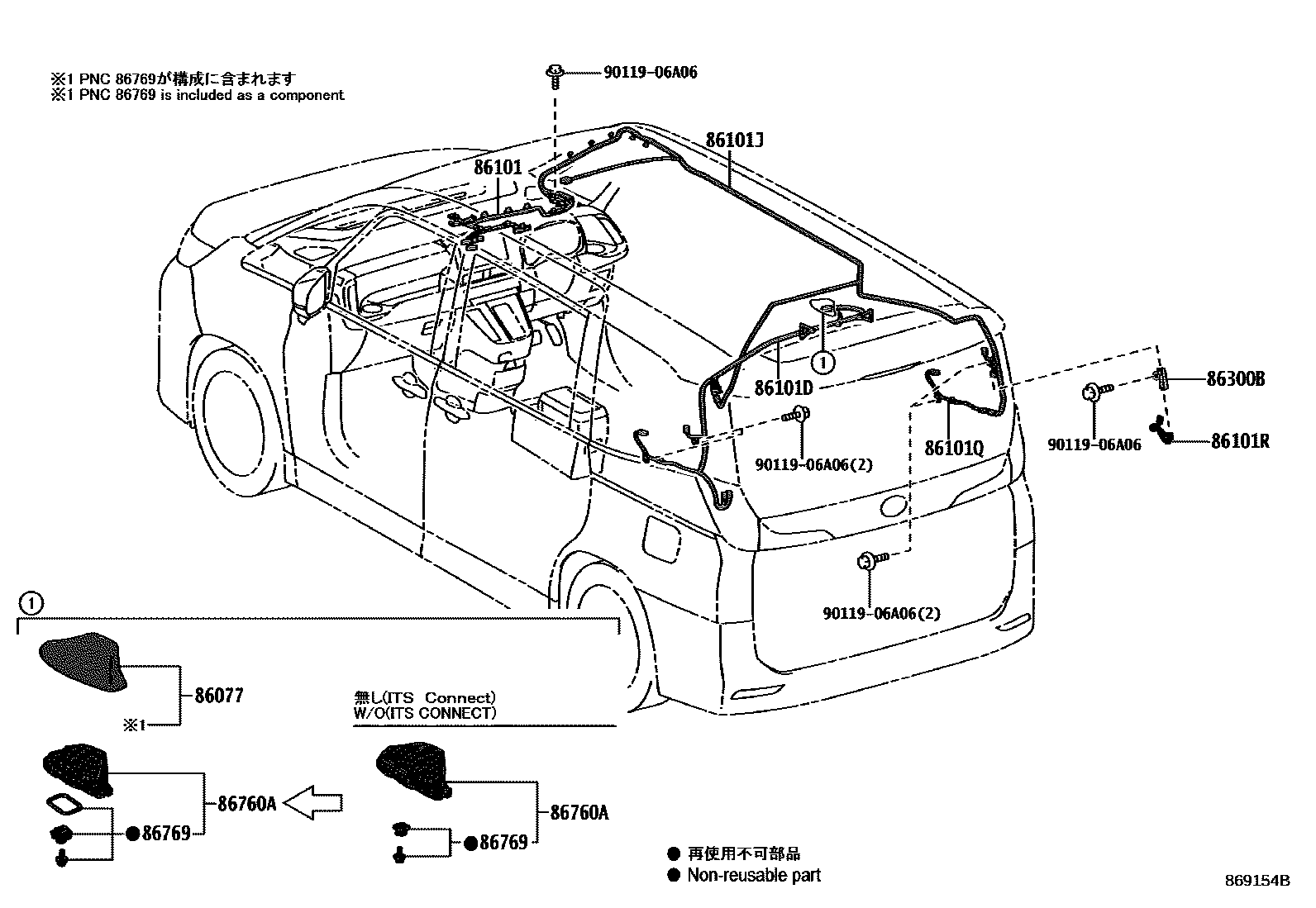

ANTENNA for Toyota NOAH/VOXY
This section contains 10 genuine Toyota parts for the ANTENNA system of the Toyota NOAH/VOXY. Key components include: COVER KIT, ANTENNA, CORD SUB-ASSY, ANTENNA, CORD SUB-ASSY, ANTENNA, NO.3, CORD SUB-ASSY, ANTENNA, NO.2, CORD SUB-ASSY, ANTENNA, NO.4.
