Toyota NOAH/VOXY — ANTENNA

86050ANTENNA ASSY, TELEVISION

main86050-28130iZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-201004

86101CORD SUB-ASSY, ANTENNA

main86101-28800iZRR7#..CBU,IV5200706-201004

main86101-28830iZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-201004

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-28810iZRR7#..CBU,IV5200706-201004

main86101-28820iZRR70..(G,S,SI,V,Z,ZS)..CBU;ZRR75..07S..(G,S,SI,V,Z,ZS)..CBU201004-201401

main86101-28840iZRR70..CBU,IV5;ZRR75..07S..HTWC..CBU;ZRR75..(05S,08S)..(CBU,IV5)200706-201004

main86101-28850iZRR75..08S..(S,SI,Z,ZS)..CBU;ZRR70..08S..(G,S,SI,V,Z,ZS)..CBU200706-201004

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-28500iZRR7#..CBU,IV5201004-201401

9011906915

main90119-06915

9017906274

main90179-06274

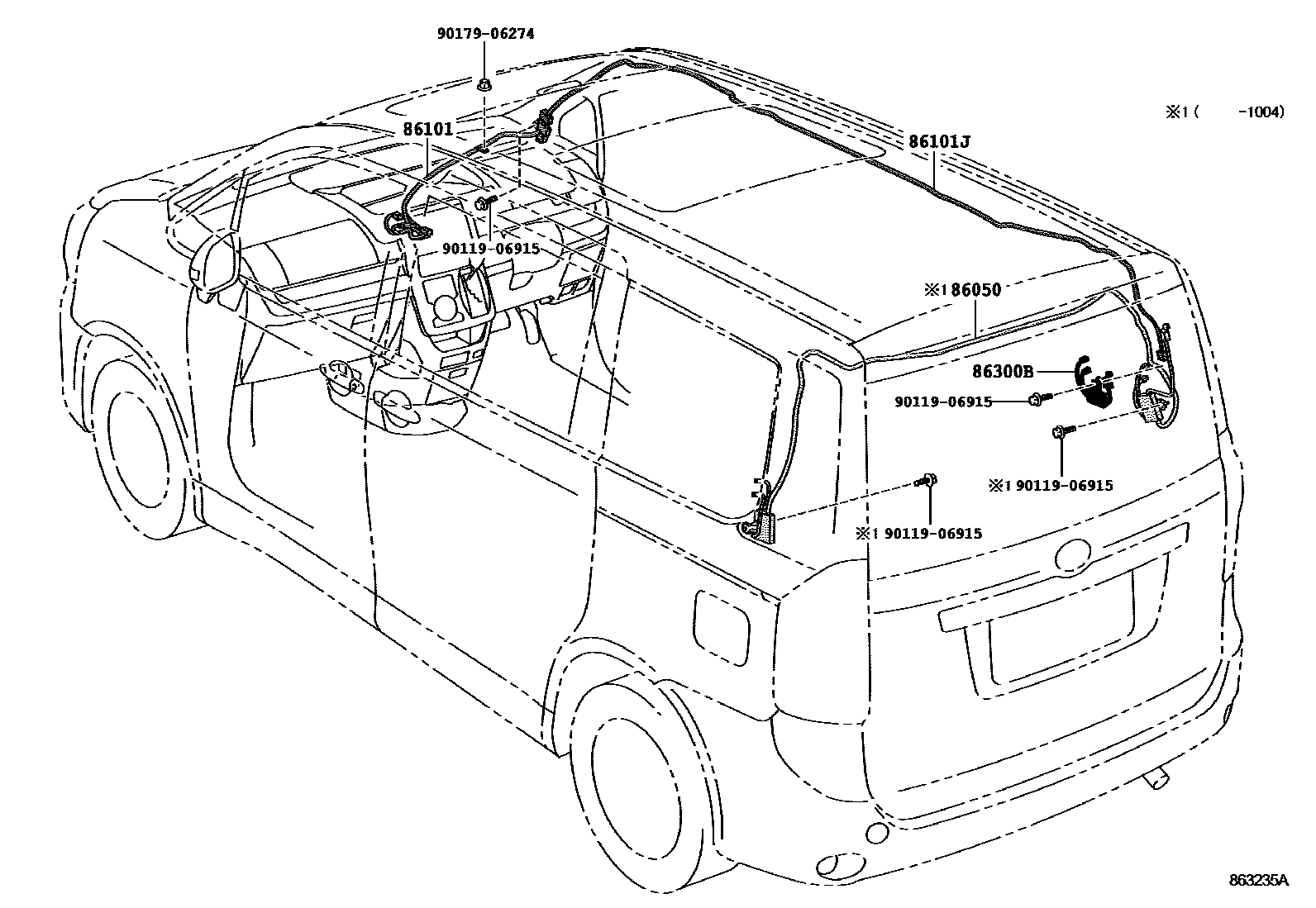

6 parts on this diagram · 1 diagram in section
