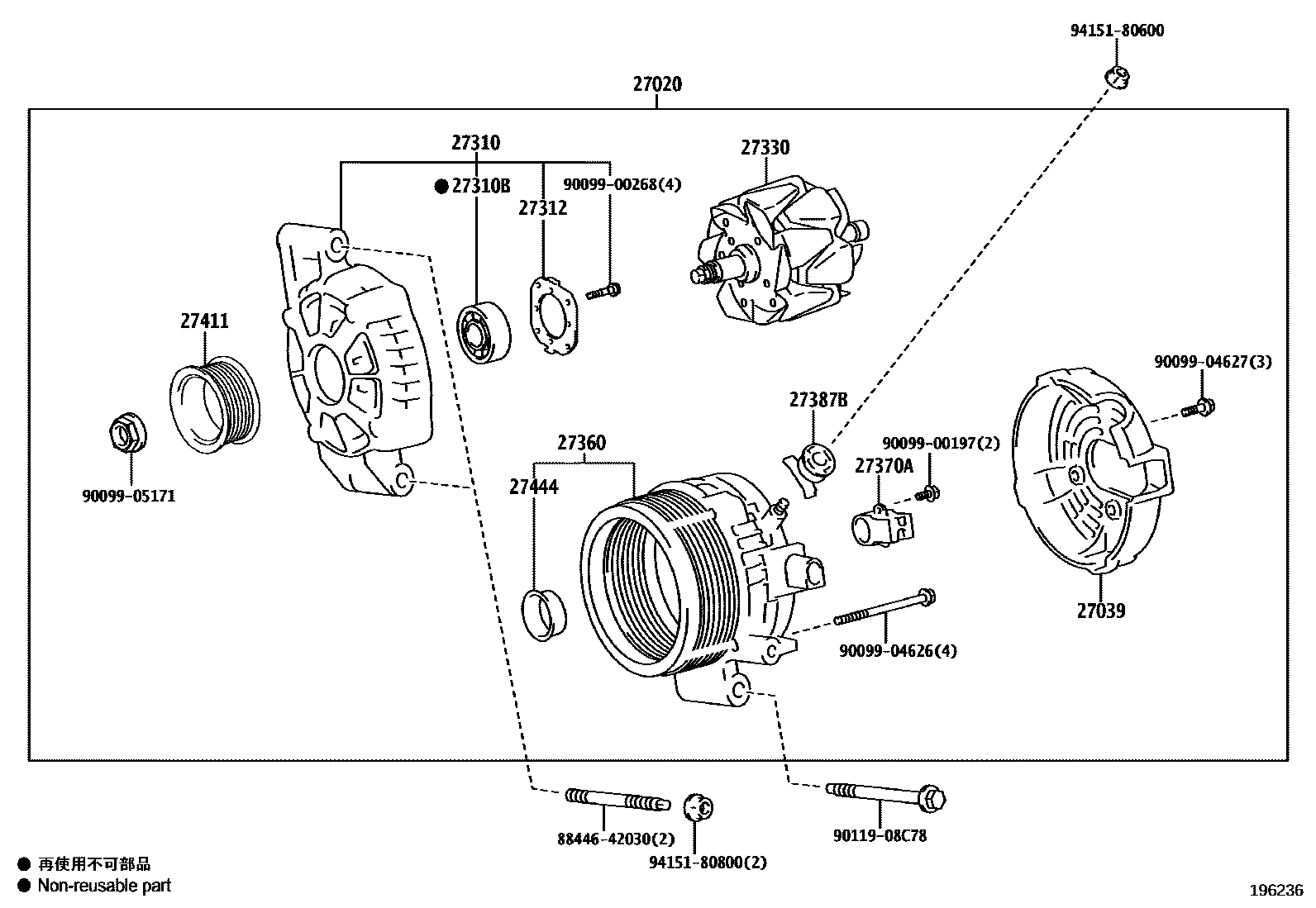

Toyota NOAH/VOXY — ALTERNATOR
27020ALTERNATOR ASSY
main27060-24070iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201
27039COVER, ALTERNATOR REAR END
27310FRAME ASSY, DRIVE END, ALTERNATOR
27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)
27312PLATE, RETAINER
27330ROTOR ASSY, ALTERNATOR
27360COIL ASSY, ALTERNATOR
27370AHOLDER ASSY, ALTERNATOR BRUSH
27387BINSULATOR, ALTERNATOR TERMINAL
main27387-20130iM20AFKS..MZRA92..08S..X;M20AFKS..MZRA92..07S..(SG,X);M20AFKS..MZRA90,95,97..(SG,SZ,X)..CBU202201
27411PULLEY, ALTERNATOR
27444PACKING, ALTERNATOR BEARING COVER
8844642030BOLT, IDLE PULLEY
main88446-42030
9009900197
main90099-00197
9009900268
main90099-00268
9009904626
main90099-04626
9009904627
main90099-04627
9009905171
main90099-05171
9011908C78
main90119-08C78
9415180600
main94151-80600
9415180800
main94151-80800
20 parts on this diagram · 2 diagrams in section
ALTERNATOR for Toyota NOAH/VOXY
This section contains 25 genuine Toyota parts for the ALTERNATOR system of the Toyota NOAH/VOXY. Key components include: ALTERNATOR ASSY, COVER, ALTERNATOR REAR END, FRAME ASSY, DRIVE END, ALTERNATOR, BEARING(FOR ALTERNATOR DRIVE END FRAME), PLATE, RETAINER.
