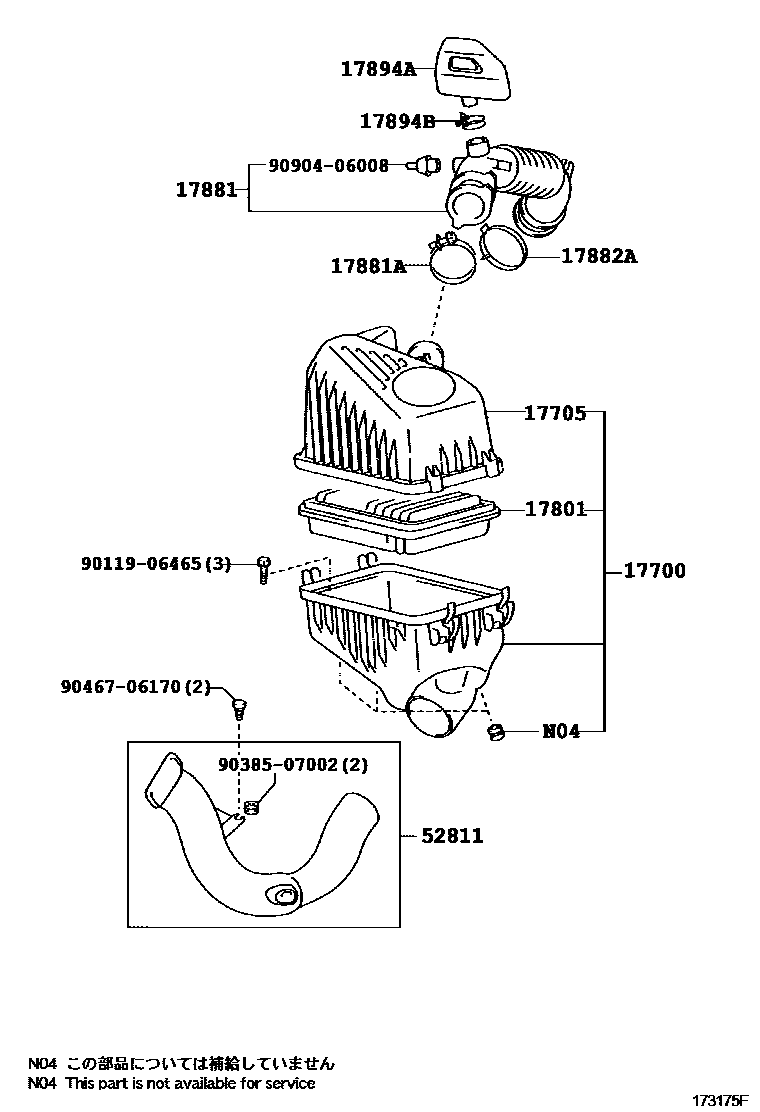

Toyota NOAH/VOXY — AIR CLEANER

17700CLEANER ASSY, AIR

main17700-28180i200408

main17700-28200i200111-200408

17705CAP SUB-ASSY, AIR CLEANER

main17705-28140i200408

main17705-28150i200111-200408

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-22020i200408

17881HOSE, AIR CLEANER, NO.1

main17881-28150i200111-200408

main17881-28240i200408

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10830i200111-200408

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i200111-200408

17894ARESONATOR, INTAKE AIR, NO.2

main17894-28040i200111-200408

17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)

main96111-10450i200111-200408

52811DUCT, COOL AIR INTAKE, NO.1

main52811-28120i200111-200408

9011906465

main90119-06465

9038507002

main90385-07002

9046706170

main90467-06170

9090406008

main90904-06008

13 parts on this diagram · 2 diagrams in section

AIR CLEANER for Toyota NOAH/VOXY

This section contains 16 genuine Toyota parts for the AIR CLEANER system of the Toyota NOAH/VOXY. Key components include: CLEANER ASSY, AIR, CAP SUB-ASSY, AIR CLEANER, ELEMENT SUB-ASSY, AIR CLEANER FILTER, HOSE, AIR CLEANER, NO.1, CLAMP(FOR AIR CLEANER HOSE, NO.1).
