Toyota NOAH/VOXY — AIR BAG
89170ACOMPUTER ASSY, AIRBAG
89173ASENSOR, AIRBAG, FRONT RH
89174ASENSOR, AIRBAG, FRONT LH
89833SENSOR, AIRBAG, REAR RH
89834SENSOR, AIRBAG, REAR LH
89835SENSOR, DOOR SIDE AIRBAG, LH
89837SENSOR, FRONT FLOOR SIDE AIRBAG
89837ASENSOR, REAR FLOOR SIDE AIRBAG
89839COVER, FRONT FLOOR SIDE AIRBAG SENSOR
89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR
89860SENSOR ASSY, SIDE AIRBAG, RH
89860ASENSOR ASSY, SIDE AIRBAG, LH
89865SENSOR, DOOR SIDE AIRBAG, RH
9011908C89
main90119-08C89
9046709077
main90467-09077
9155380618
main91553-80618
9155380622
main91553-80622
91553A0625
main91553-A0625
9415180600
main94151-80600
19 parts on this diagram · 1 diagram in section

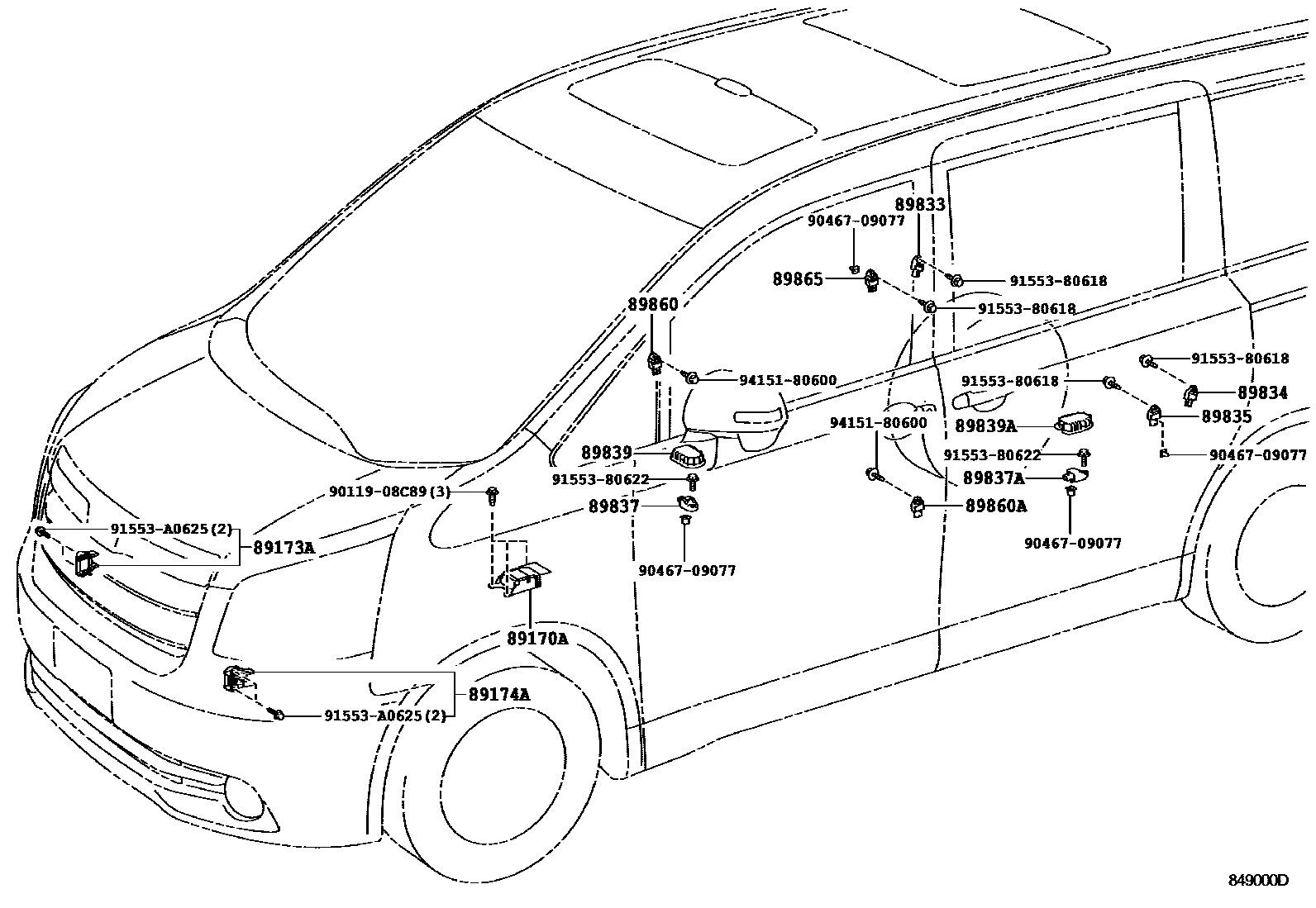

AIR BAG for Toyota NOAH/VOXY
This section contains 19 genuine Toyota parts for the AIR BAG system of the Toyota NOAH/VOXY. Key components include: COMPUTER ASSY, AIRBAG, SENSOR, AIRBAG, FRONT RH, SENSOR, AIRBAG, FRONT LH, SENSOR, AIRBAG, REAR RH, SENSOR, AIRBAG, REAR LH.
