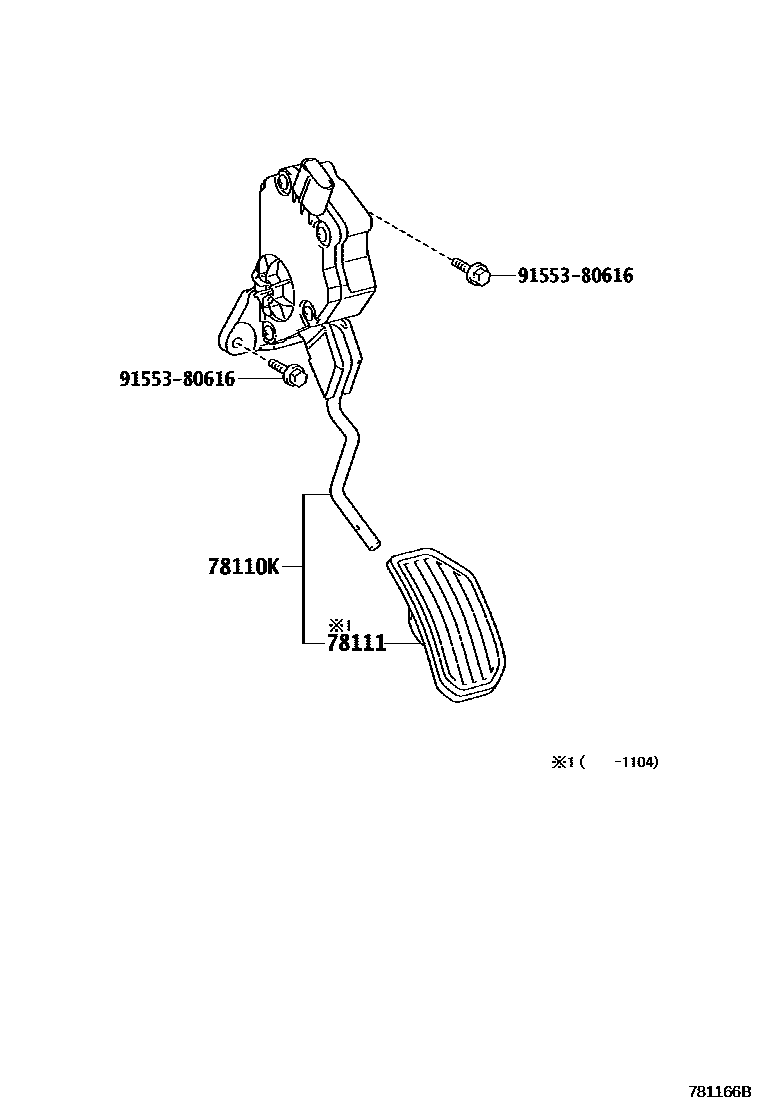

Toyota NOAH/VOXY — ACCELERATOR LINK

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-28030iZRR7#..CBU,IV5200706-201004

main78110-28031iZRR7#..CBU,IV5201105-201401

sub78110-28032

main78110-WY010iZRR70..(SI,ZS)..CBU201006-201204

main78110-WY030iZRR70..(SI,ZS)..CBU201204-201401

sub78110-WY120

78111PEDAL, ACCELERATOR

main78111-42010iZRR7#..CBU,IV5200706-201004

sub78111-12150

9155380616

main91553-80616

3 parts on this diagram · 1 diagram in section
