Toyota NOAH/VOXY — ABS & VSC

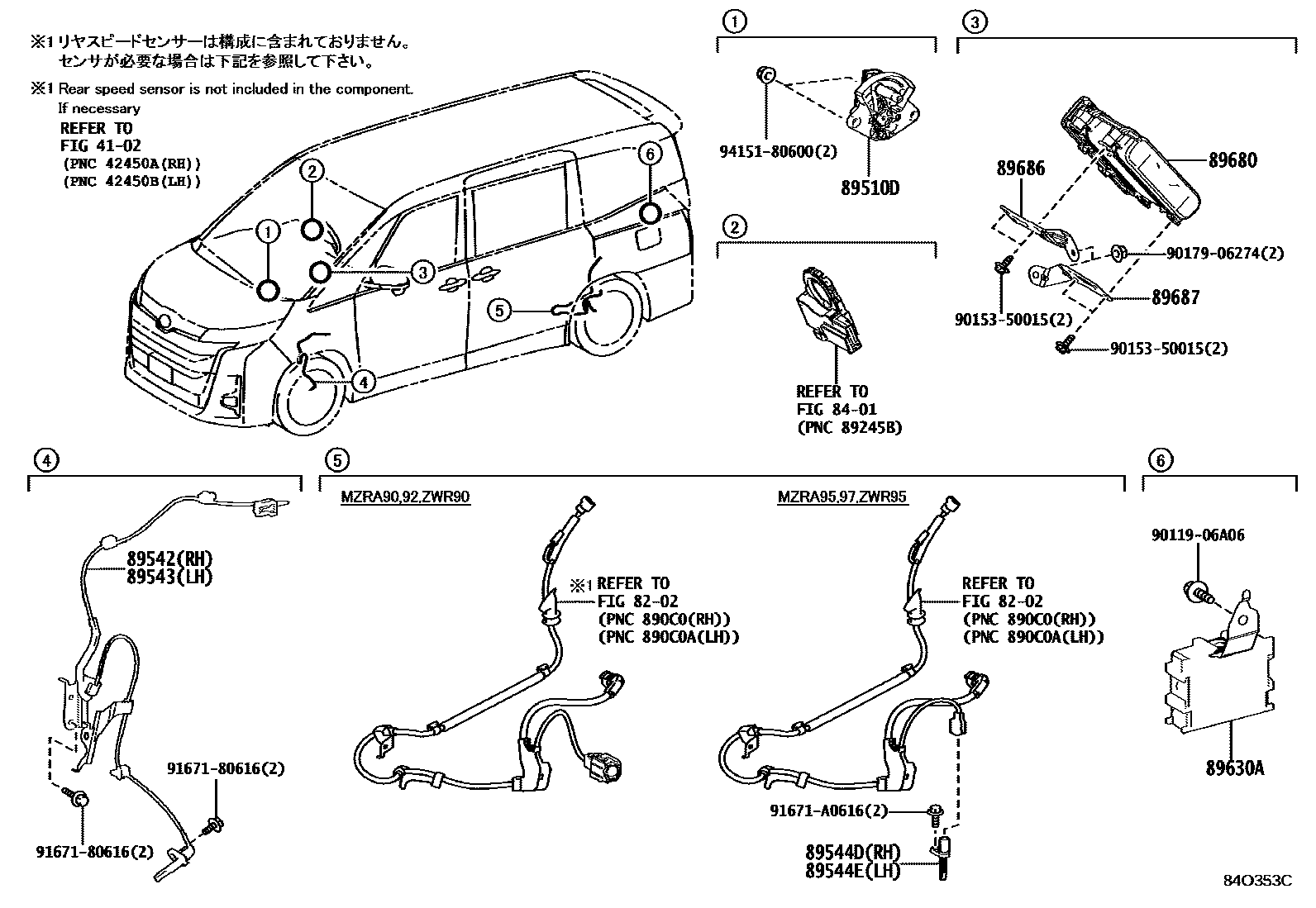

Parts diagram

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-28030i202201-202304

main89510-28031i202304-202501

89542SENSOR, SPEED, FRONT RH

main89542-V1010i202201-202501

89543SENSOR, SPEED, FRONT LH

main89543-V1010i202201-202501

89544DSENSOR, SKID CONTROL, REAR RH

main89544-52050i202201-202501

89544ESENSOR, SKID CONTROL, REAR LH

main89544-52050i202201-202501

89630ACOMPUTER ASSY, 4WD

main89630-28040i202201-202404

main89630-28050i202404-202501

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-K0010i202201-202605

main89680-28020supersedes 89680-K0010i202201-202501

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-28031i202201-202501

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-28031i202201-202501

9011906A06

main90119-06A06

9015350015

main90153-50015

9017906274

main90179-06274

9167180616

main91671-80616

91671A0616

main91671-A0616

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section

ABS & VSC for Toyota NOAH/VOXY

This section contains 18 genuine Toyota parts for the ABS & VSC system of the Toyota NOAH/VOXY. Key components include: REAR AXLE SHAFT & HUB, WIRING & CLAMP, SWITCH & RELAY & COMPUTER, SENSOR ASSY, BRAKE PEDAL STROKE, SENSOR, SPEED, FRONT RH.
