Toyota NOAH/VOXY — ABS & VSC

0001 1 0002 1

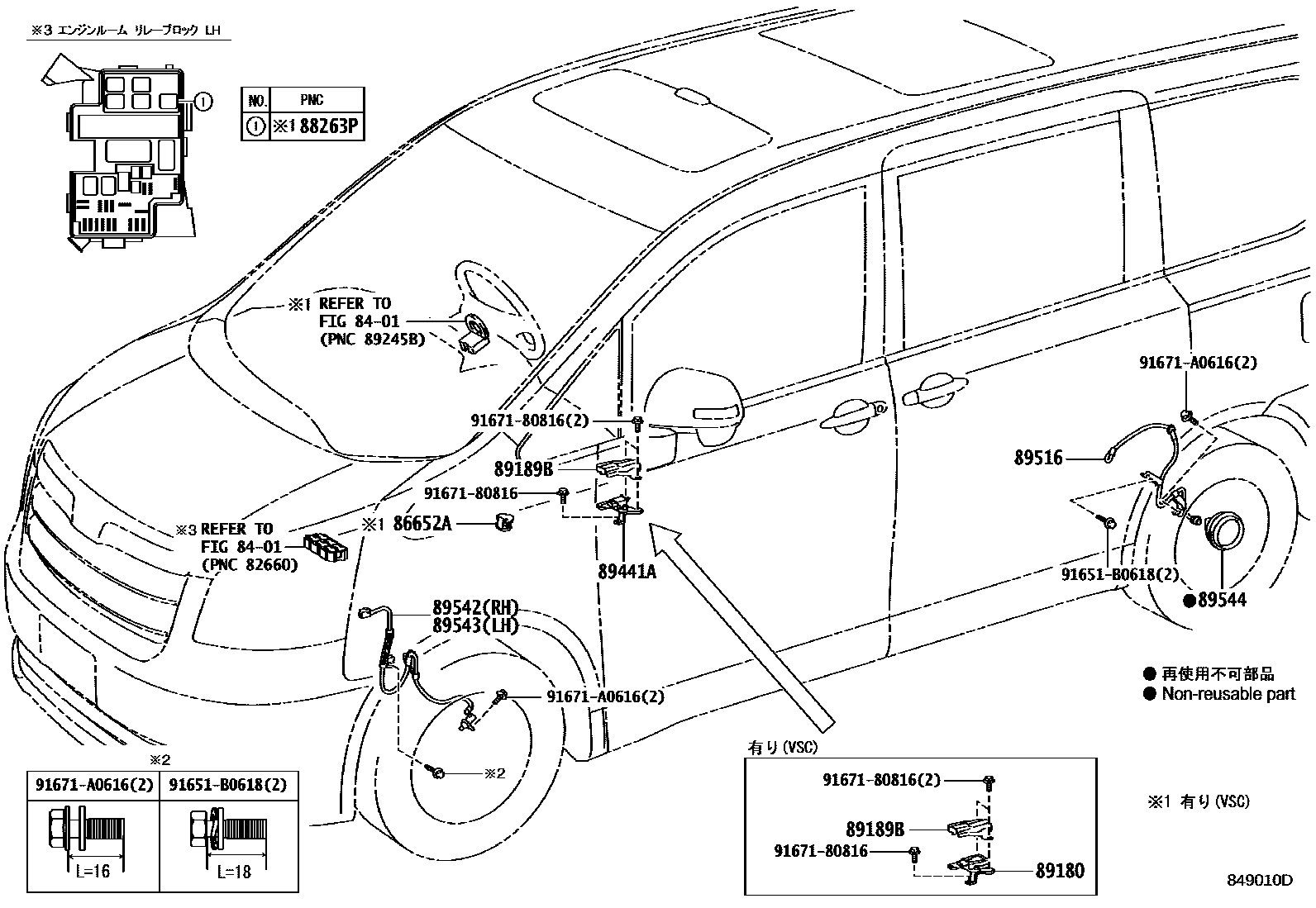

8401

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iZRR7#..CBU,IV5200706-201004

88263PRELAY, STOP LAMP CONTROL

main90987-04004iZRR7#..CBU,IV5200706-201004

89180SENSOR ASSY, YAWRATE

main89180-28030iZRR7#..CBU,IV5200706-201002

main89180-28060iZRR7#..CBU,IV5201004-201401

89189BBRACKET, YAWRATE SENSOR

main89189-28020iZRR7#..CBU,IV5200706-201004

89441ASENSOR, DECELERATION

main89440-28090iZRR7#..CBU,IV5200706-201004

89516WIRE, SKID CONTROL SENSOR

main89516-28070iZRR70..CBU,IV5200706-201004

main89516-28080iZRR70..CBU,IV5201004-201401

89542SENSOR, SPEED, FRONT RH

main89542-28110iZRR7#..CBU,IV5200706-201004

sub89542-28160

89543SENSOR, SPEED, FRONT LH

main89543-28110iZRR7#..CBU,IV5200706-201004

sub89543-28160

89544SENSOR, SKID CONTROL

main89544-52040×2iZRR70..CBU,IV5200706-201004

91651B0618

main91651-B0618

9167180816

main91671-80816

91671A0616

main91671-A0616

13 parts on this diagram · 2 diagrams in section
