Toyota NOAH/VOXY — ABS & VSC
8401SWITCH & RELAY & COMPUTER
86652ABUZZER ASSY, SKID CONTROL
88263MRELAY, ABS SOLENOID
88263NRELAY, ABS MOTOR
89183ASENSOR, YAWRATE
89516CWIRE, SKID CONTROL SENSOR, RH
89516DWIRE, SKID CONTROL SENSOR, LH
89540COMPUTER ASSY, SKID CONTROL
89542SENSOR, SPEED, FRONT RH
89543SENSOR, SPEED, FRONT LH
89545SENSOR, SPEED, REAR RH
89546SENSOR, SPEED, REAR LH
89701ABLOCK SUB-ASSY, ABS RELAY
9011906512
main90119-06512
9011908B27
main90119-08B27
9017906274
main90179-06274
91511B0616
main91511-B0616
91621B0616
main91621-B0616
91631B0618
main91631-B0618
91651B0618
main91651-B0618

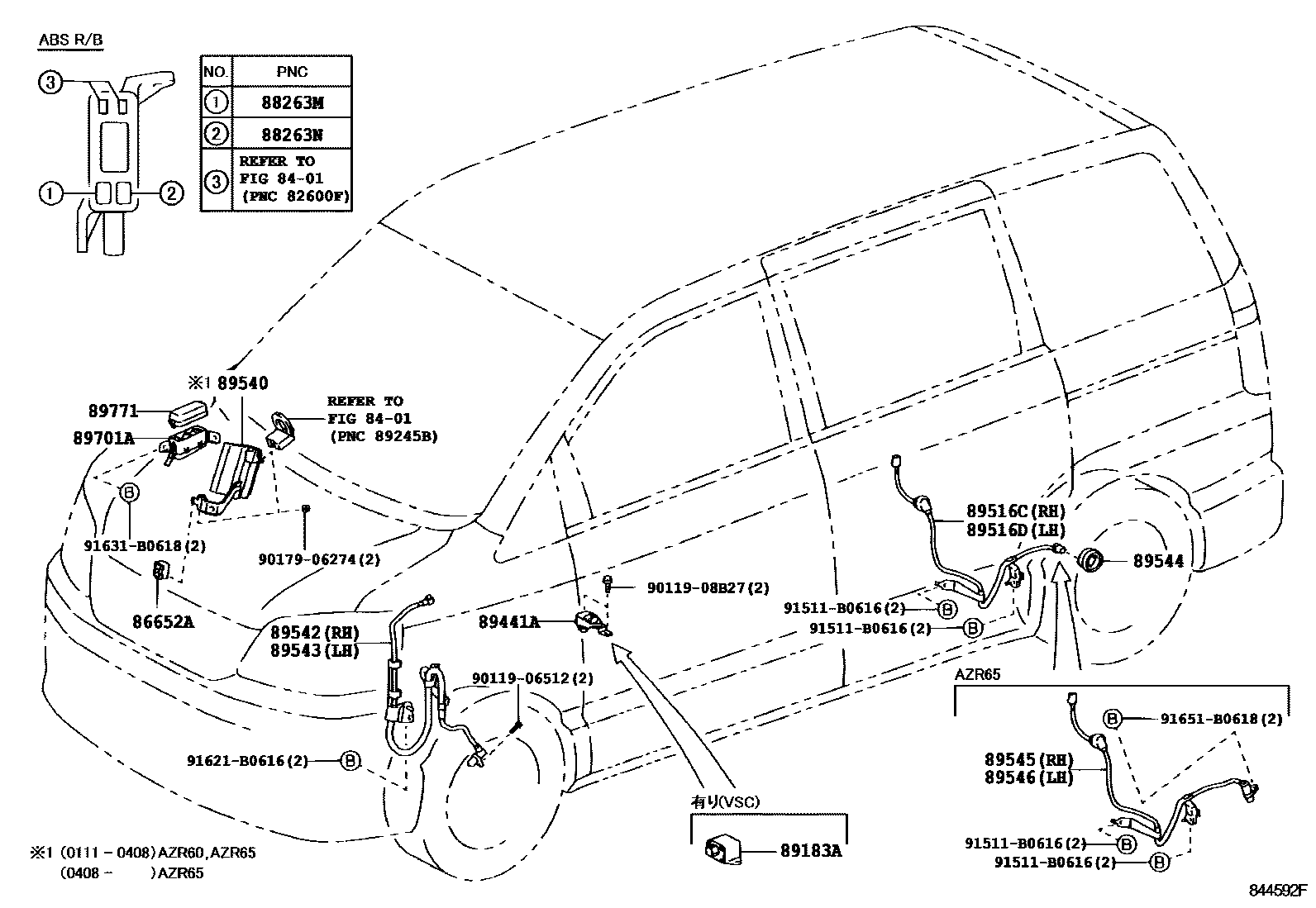

23 parts on this diagram · 1 diagram in section
ABS & VSC for Toyota NOAH/VOXY
This section contains 23 genuine Toyota parts for the ABS & VSC system of the Toyota NOAH/VOXY. Key components include: SWITCH & RELAY & COMPUTER, BUZZER ASSY, SKID CONTROL, RELAY, ABS SOLENOID, RELAY, ABS MOTOR, SENSOR, YAWRATE.
