Toyota NOAH/VOXY — WIRELESS DOOR LOCK

89741RECEIVER, DOOR CONTROL

main89740-V1020i202201

main89740-V1030i202201

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i202201

89990ACOMPUTER ASSY, SMART KEY

main899H0-V1010i202201-202310

MARK 89990-V1010

main899H0-V1011i202310-202404

MARK 89990-V1011

main899H0-V1012i202404

MARK 89990-V1012

main899H0-V1040i202201-202404

main899H0-V1091i202404

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-V1010i202201

89997BANTENNA, ELECTRICAL KEY, NO.3

main89997-V1020i202201

89997CANTENNA, ELECTRICAL KEY, NO.4

main89997-30100i202201-202501

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-V1020i202201-202501

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-V1010i202201-202501

9011906A06

main90119-06A06

9015960621

main90159-60621

9017906274

main90179-06274

9018906197

main90189-06197

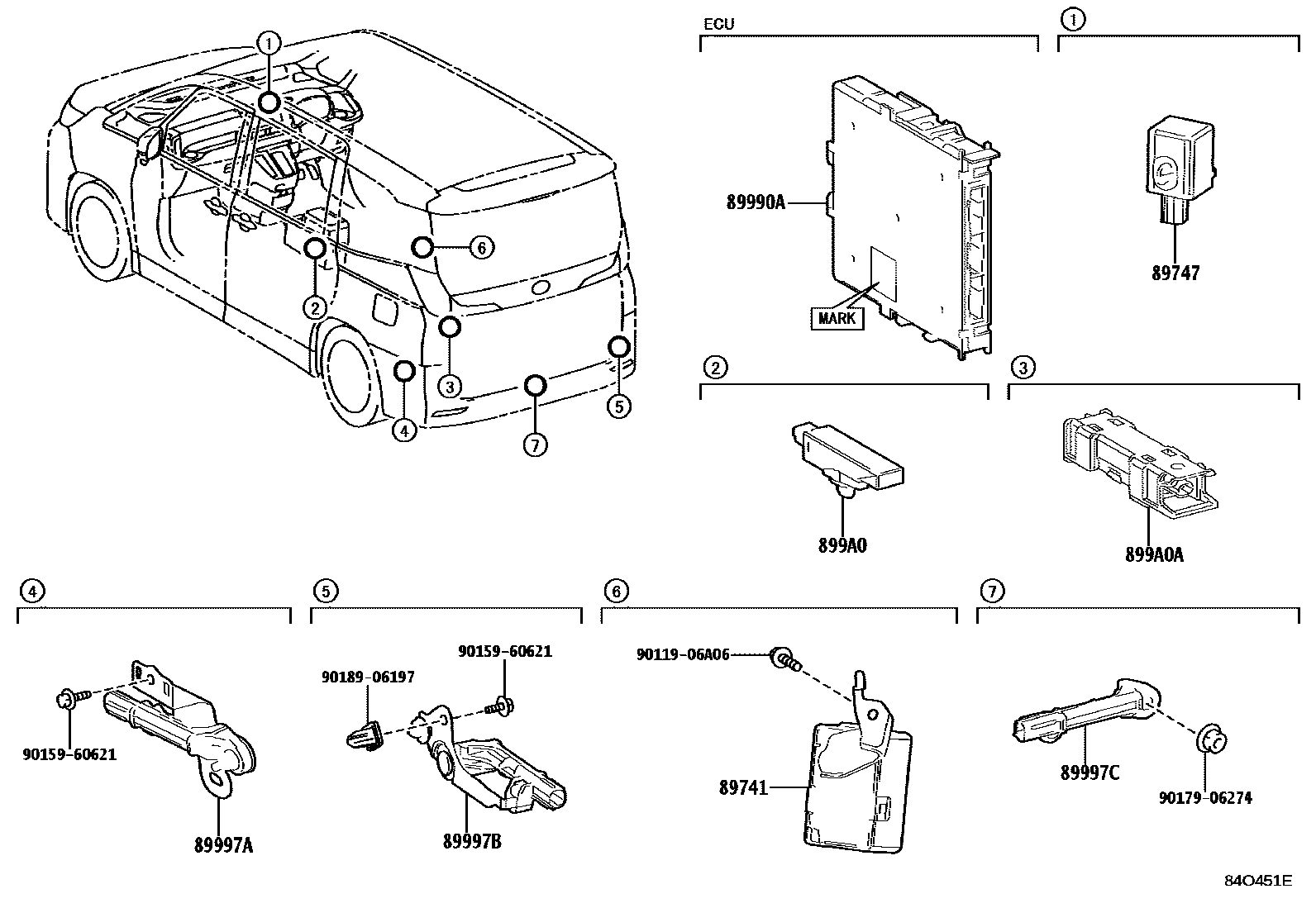

12 parts on this diagram · 1 diagram in section

WIRELESS DOOR LOCK for Toyota NOAH/VOXY

This section contains 12 genuine Toyota parts for the WIRELESS DOOR LOCK system of the Toyota NOAH/VOXY. Key components include: RECEIVER, DOOR CONTROL, BUZZER, WIRELESS DOOR LOCK, COMPUTER ASSY, SMART KEY, ANTENNA, ELECTRICAL KEY, NO.2, ANTENNA, ELECTRICAL KEY, NO.3.
