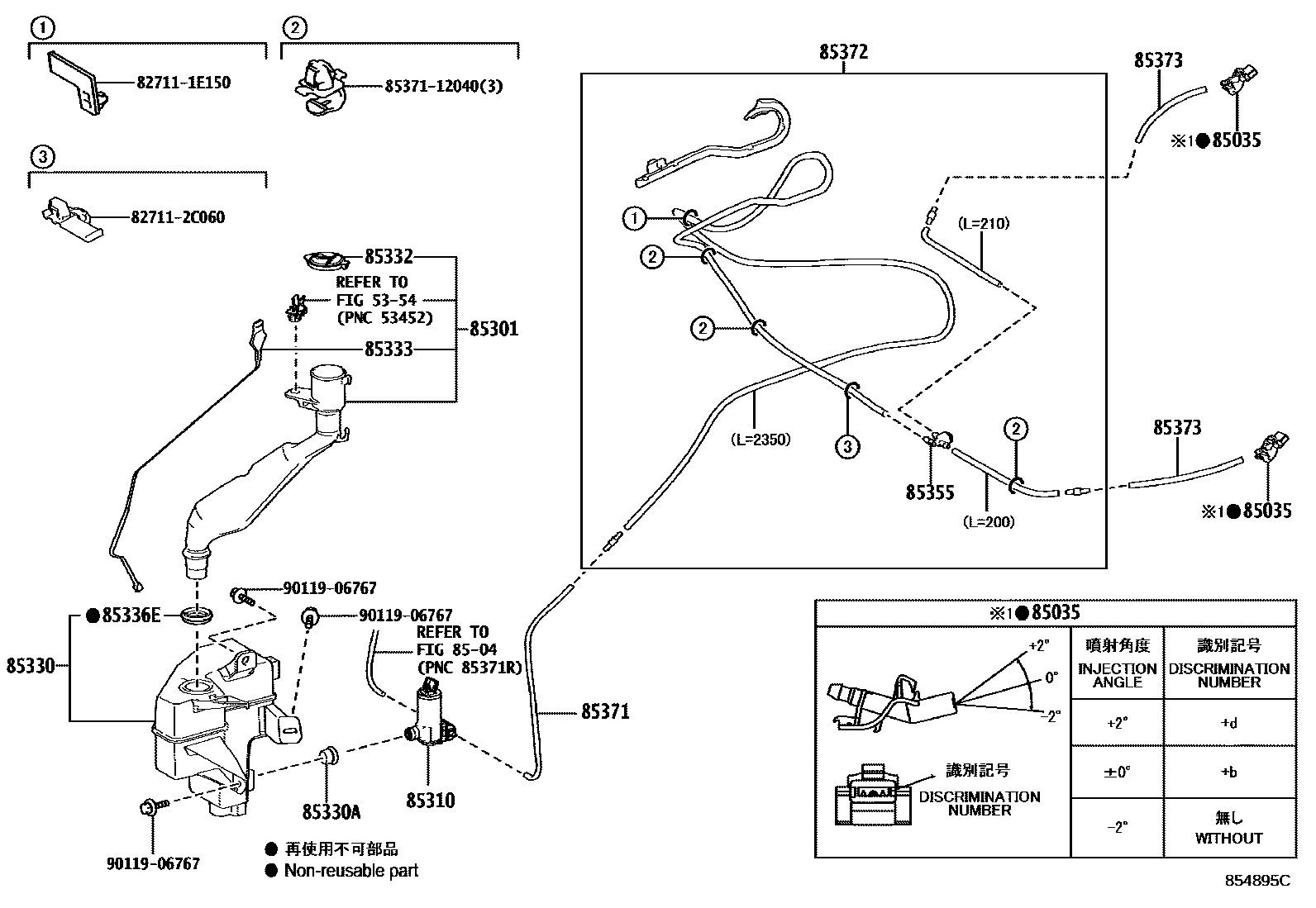

Toyota NOAH/VOXY — WINDSHIELD WASHER

5354

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iMZRA90..S202201-202501

ANGLE 0

sub85381-0K070

main85381-30230×2iMZRA90..S202201-202501

ANGLE -2

sub85381-0K080

main85381-30240×2iMZRA90..S202201-202501

ANGLE +2

8504

85301INLET SUB-ASSY, WASHER

main85301-V1010iMZRA90..S202201-202501

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47090iMZRA90202201-202207

main85330-47091iMZRA90..S202208-202501

85330JAR ASSY, WINDSHIELD WASHER

main85315-V1010iMZRA90..S202201-202501

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iMZRA90..G,R202201

85332CAP, WINDSHIELD WASHER JAR

main85316-V1010iMZRA90..S202201-202501

85333FILTER, WINDSHIELD WASHER JAR

main85312-V1010iMZRA90..S202201-202501

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-V1010iMZRA90..S202201-202501

85355VALVE, WINDSHIELD WASHER HOSE

main85321-52010iMZRA90..S202201-202501

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46127iMZRA90..S202201-202501

L=360

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main85370-V1010iMZRA90..S202201-202501

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iMZRA90..S202201-202501

L=1450(*H,L=150)

827111E150WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E150

827112C060WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C060

8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-12040

9011906767

main90119-06767

18 parts on this diagram · 1 diagram in section
