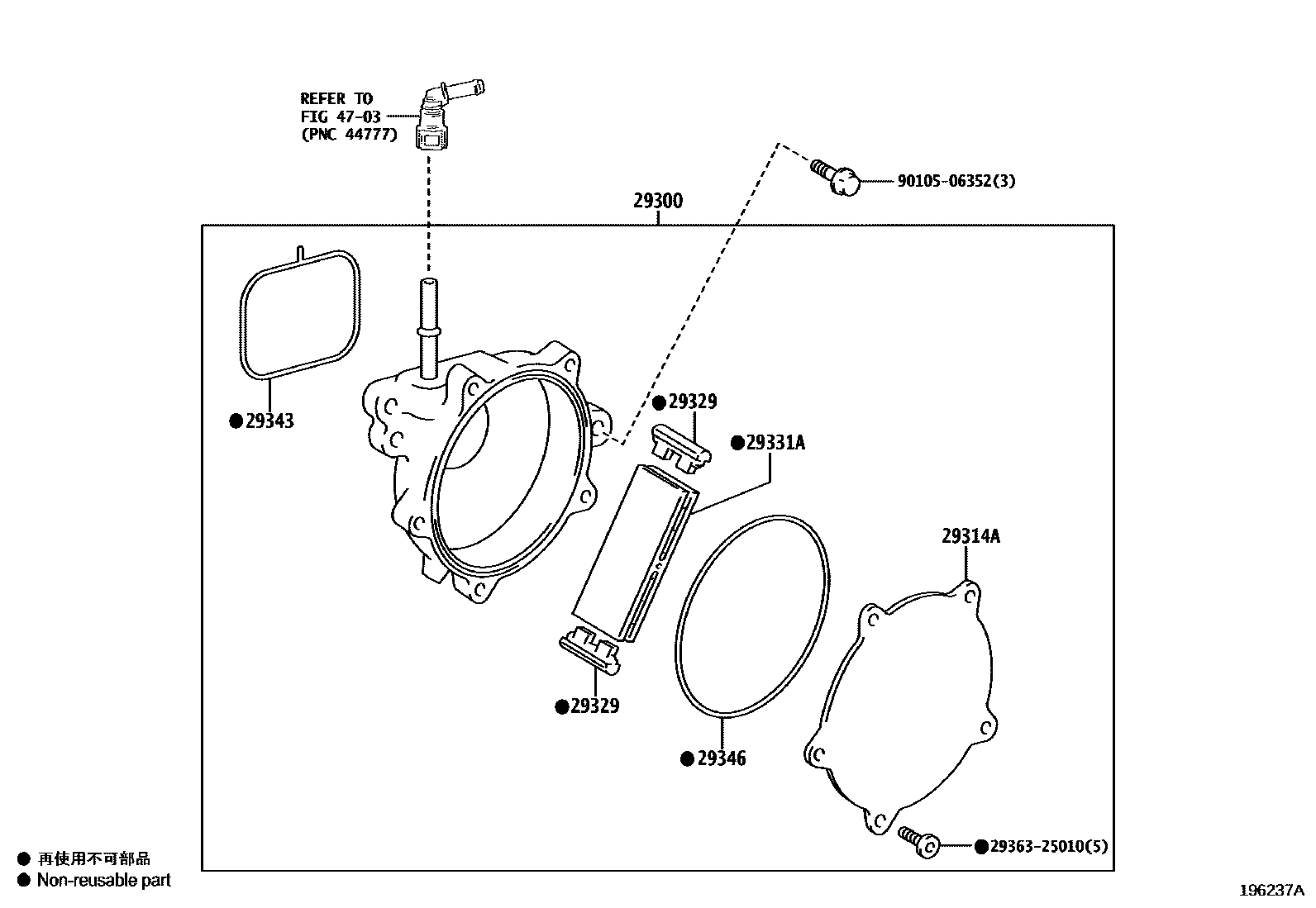

Toyota NOAH/VOXY — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-24011i202201-202501

29314ACOVER, END

main29314-25010i202201-202501

29329CAP, VACUUM PUMP VANE

main29329-24011×2i202201-202501

29331AVANE, VACUUM PUMP

main29331-24010i202201-202501

29343RING, O VACUUM PUMP, NO.1

main29343-25010i202201-202501

29346RING, O VACUUM PUMP COVER

main29346-25010i202201-202501

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

9 parts on this diagram · 1 diagram in section

VACUUM PUMP for Toyota NOAH/VOXY

This section contains 9 genuine Toyota parts for the VACUUM PUMP system of the Toyota NOAH/VOXY. Key components include: PUMP ASSY, VACUUM, COVER, END, CAP, VACUUM PUMP VANE, VANE, VACUUM PUMP, RING, O VACUUM PUMP, NO.1.
