0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 1/2 0006 1INSTRUMENT PANEL 2/2 0007 1STEERING 0008 1DOOR,ROOF & LUGGAGE 0009 1FLOOR & BACK DOOR

82715WBRACKET, WIRING HARNESS CLAMP

main82715-12X50iMZRA90..S202201-202501

84540SWITCH ASSY, NEUTRAL START

main84540-12240iMZRA90..S202201-202501

89419BSENSOR, SHIFT STROKE

main89419-12011iMZRA90202201-202203

MARK=CS1

main89419-K2010iMZRA90202201-202203

MARK=HK-82

89422ASENSOR, WATER TEMPERATURE

main89422-33040iMZRA90..S202201-202501

89467BSENSOR, AIR FUEL RATIO

main89467-28130iMZRA90..S202201-202501

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-28140iMZRA90..S202201-202501

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-28010iMZRA90..S202201-202501

8946AABRACKET, EXHAUST SENSOR CLAMP, NO.2

main8946A-28020iMZRA90..S202201-202501

89491SENSOR, ENGINE OIL LEVEL

main89491-33051iMZRA90202201-202204

main89491-33052iMZRA90..S202205-202501

89535BCOMPUTER, TRANSMISSION CONTROL

main89535-28030iMZRA90..NOAH202201-202404

*614

main89535-28050iMZRA90..R202201-202408

*614

main89535-28060iMZRA90..S202404-202501

*614

main89535-28080iMZRA90..R202408

*614

89539MBRACKET, TRANSMISSION CONTROL COMPUTER, NO.1

main89539-28030iMZRA90..S202201-202501

89539NBRACKET, TRANSMISSION CONTROL COMPUTER, NO.2

main89539-42090iMZRA90..S202201-202501

89615SENSOR, KNOCK CONTROL

main89615-20090iMZRA90..S202201-202501

9011906A12

main90119-06A12

9011906A23

main90119-06A23

9015350015

main90153-50015

9046814044

main90468-14044

9046815007

main90468-15007

9155180835

main91551-80835

9161160618

main91611-60618

9165140620

main91651-40620

9167180616

main91671-80616

9167380616

main91673-80616

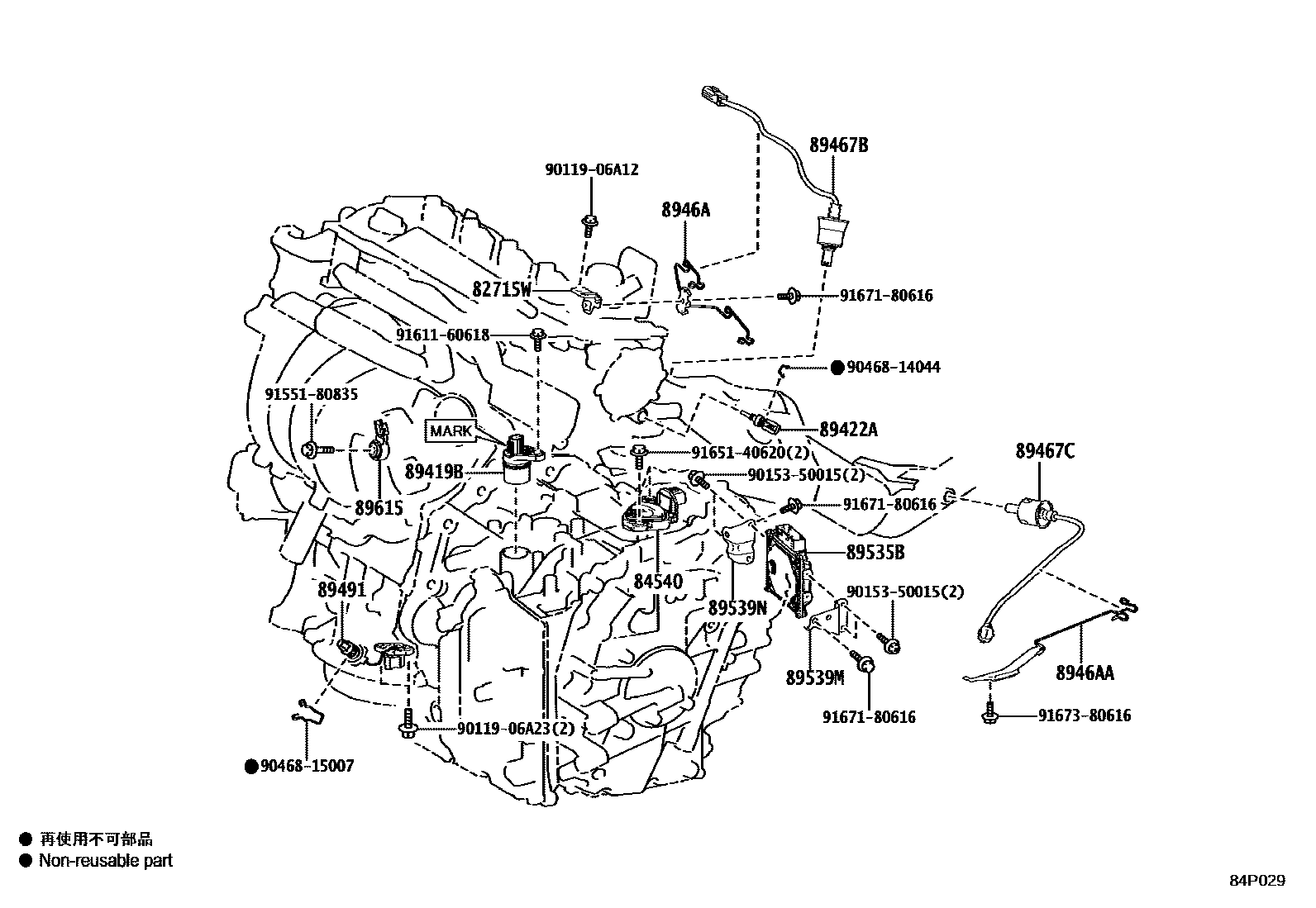

23 parts on this diagram · 9 diagrams in section
