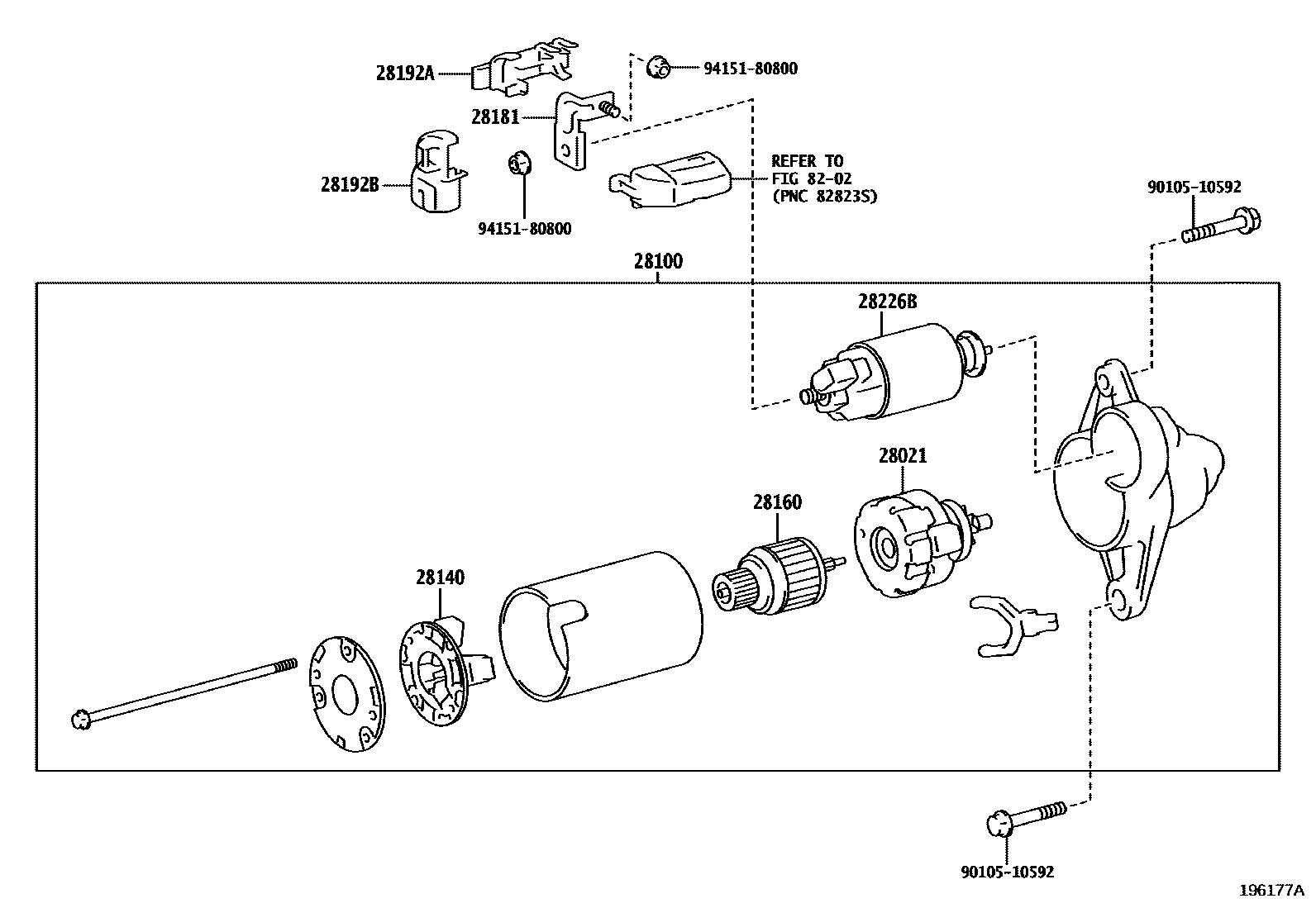

Toyota NOAH/VOXY — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-24120iM20AFKS..MZRA90..S202201-202501

28100STARTER ASSY

main28100-24120iM20AFKS..MZRA90..S202201-202501

12V 1.2KW

28140HOLDER ASSY, STARTER BRUSH

main28140-21070iM20AFKS..MZRA90..S202201-202501

28160ARMATURE ASSY, STARTER

main28160-21080iM20AFKS..MZRA90..S202201-202501

28181TERMINAL, STARTER

main28181-24010iM20AFKS..MZRA90..S202201-202501

28192ACOVER, STARTER, NO.1

main28192-24010iM20AFKS..MZRA90..S202201-202501

28192BCOVER, STARTER, NO.2

main28192-24020iM20AFKS..MZRA90..S202201-202501

28226BSTARTER KIT, REPAIR SERVICE

main28226-24120iM20AFKS..MZRA90..S202201-202501

8202

9010510592

main90105-10592

9415180800

main94151-80800

11 parts on this diagram · 1 diagram in section
