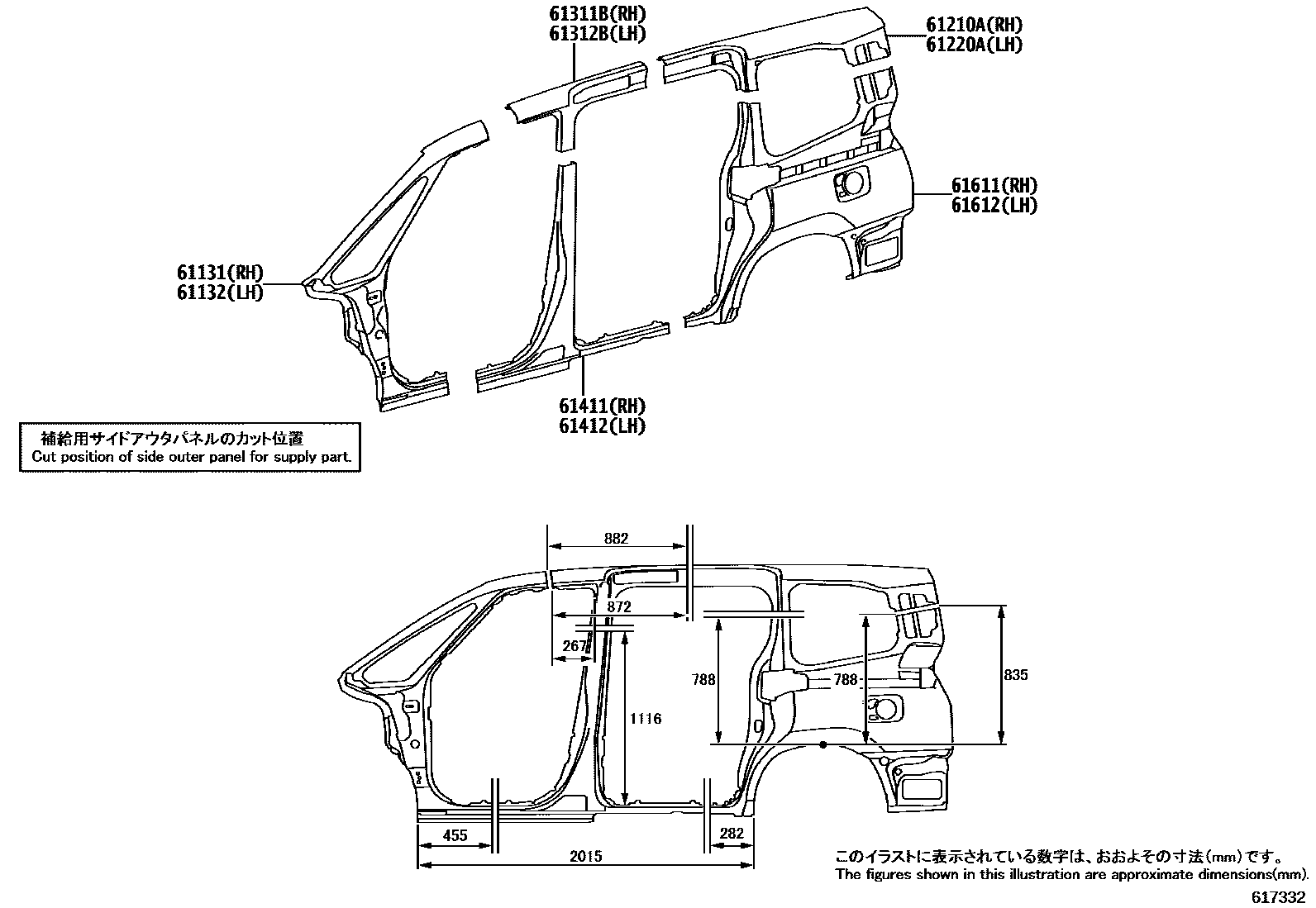

Toyota NOAH/VOXY — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61106-V1010iMZRA90..S202201-202501

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61107-V1010iMZRA90..S202201-202501

61210ARAIL ASSY, ROOF SIDE, RH

main61210-V1010iMZRA90..S202201-202501

61220ARAIL ASSY, ROOF SIDE, LH

main61220-V1010iMZRA90..S202201-202501

61311BPILLAR, CENTER BODY, OUTER RH

main61311-V1010iMZRA90..S202201-202501

61312BPILLAR, CENTER BODY, OUTER LH

main61312-V1010iMZRA90..S202201-202501

61411PANEL, ROCKER, OUTER RH

main61411-V1020iMZRA90..S202201-202501

61412PANEL, ROCKER, OUTER LH

main61412-V1020iMZRA90..S202201-202501

61611PANEL, QUARTER, RH

main61611-V1010iMZRA90..S202201-202501

main61611-V1020iMZRA90..R202201

61612PANEL, QUARTER, LH

main61602-V1010iMZRA90..S202201-202501

10 parts on this diagram · 3 diagrams in section
