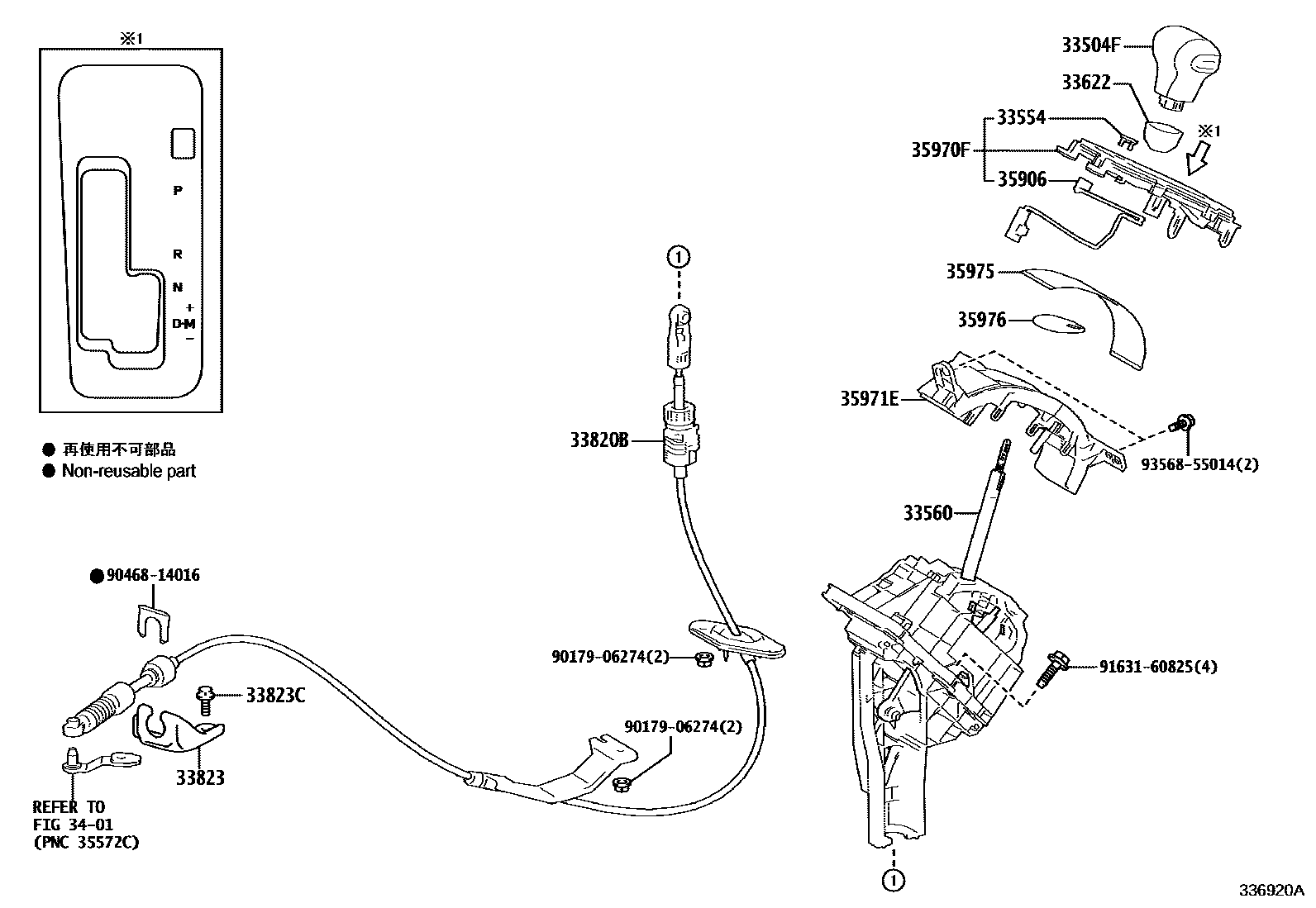

Toyota NOAH/VOXY — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33542-28090iMZRA90..S202201-202501

33554CAP, SHIFT LEVER

main33554-V1010iMZRA90..S202201-202501

main33554-V1020iMZRA90..R202201

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-28150iMZRA90..S202201-202501

33622COVER, SHIFT LEVER KNOB, NO.1

main33622-28040iMZRA90..S202201-202501

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-28490iMZRA90..S202201-202501

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMZRA90..S202201-202501

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80820×2iMZRA90..S202201-202501

3401

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-V1010iMZRA90..S202201-202501

35970FHOUSING ASSY, POSITION INDICATOR

main35970-V1010iMZRA90..S202201-202501

main35970-V1030iMZRA90..R202201

35971EHOUSING, POSITION INDICATOR

main35907-28020iMZRA90..S202201-202501

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-28050iMZRA90..S202201-202501

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-26030iMZRA90..S202201-202501

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
