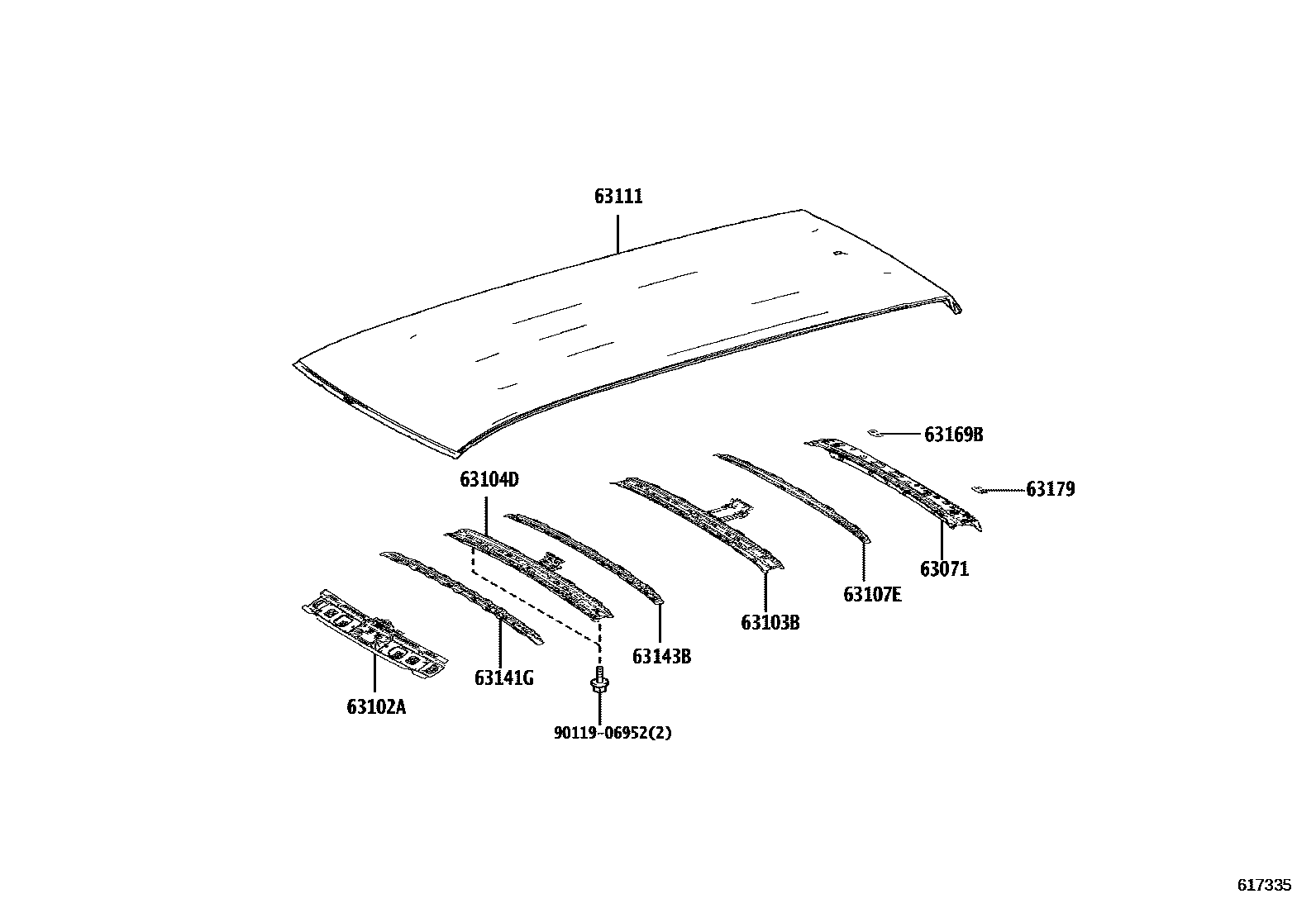

Toyota NOAH/VOXY — ROOF PANEL & BACK PANEL
63071FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103BREINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER
63104DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.2
63107EREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.5
63111PANEL, ROOF
63141GREINFORCEMENT, ROOF PANEL, NO.1
63143BREINFORCEMENT, ROOF PANEL, NO.3
63169BPLATE, ROOF PANEL REINFORCEMENT, RH
63179PLATE, ROOF PANEL REINFORCEMENT, LH
9011906952
main90119-06952
11 parts on this diagram · 1 diagram in section
