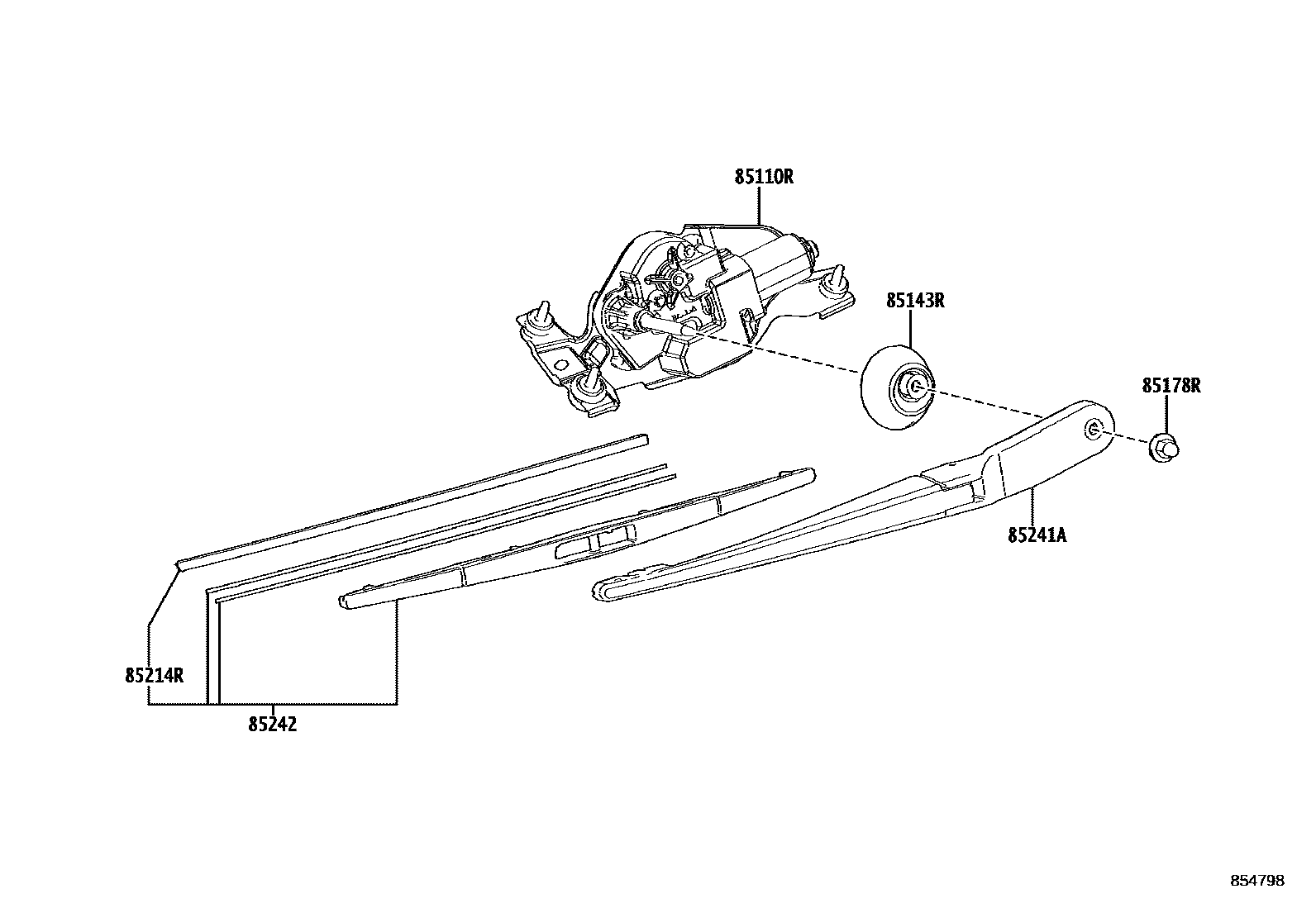

Toyota NOAH/VOXY — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-28120i202201-202501

85143RGROMMET, REAR WIPER MOTOR

main85143-V1010i202201-202501

85178RNUT (FOR REAR WIPER ARM SETTING)

main85113-58020i202201-202501

85214RRUBBER, REAR WIPER

main85214-28150i202201-202501

85241AARM, REAR WIPER

main85241-28150i202201-202501

85242BLADE, RR WIPER

main85242-28090i202201-202501

6 parts on this diagram · 1 diagram in section

REAR WIPER for Toyota NOAH/VOXY

This section contains 6 genuine Toyota parts for the REAR WIPER system of the Toyota NOAH/VOXY. Key components include: MOTOR ASSY, REAR WIPER, GROMMET, REAR WIPER MOTOR, NUT (FOR REAR WIPER ARM SETTING), RUBBER, REAR WIPER, ARM, REAR WIPER.
