Toyota NOAH/VOXY — REAR WASHER

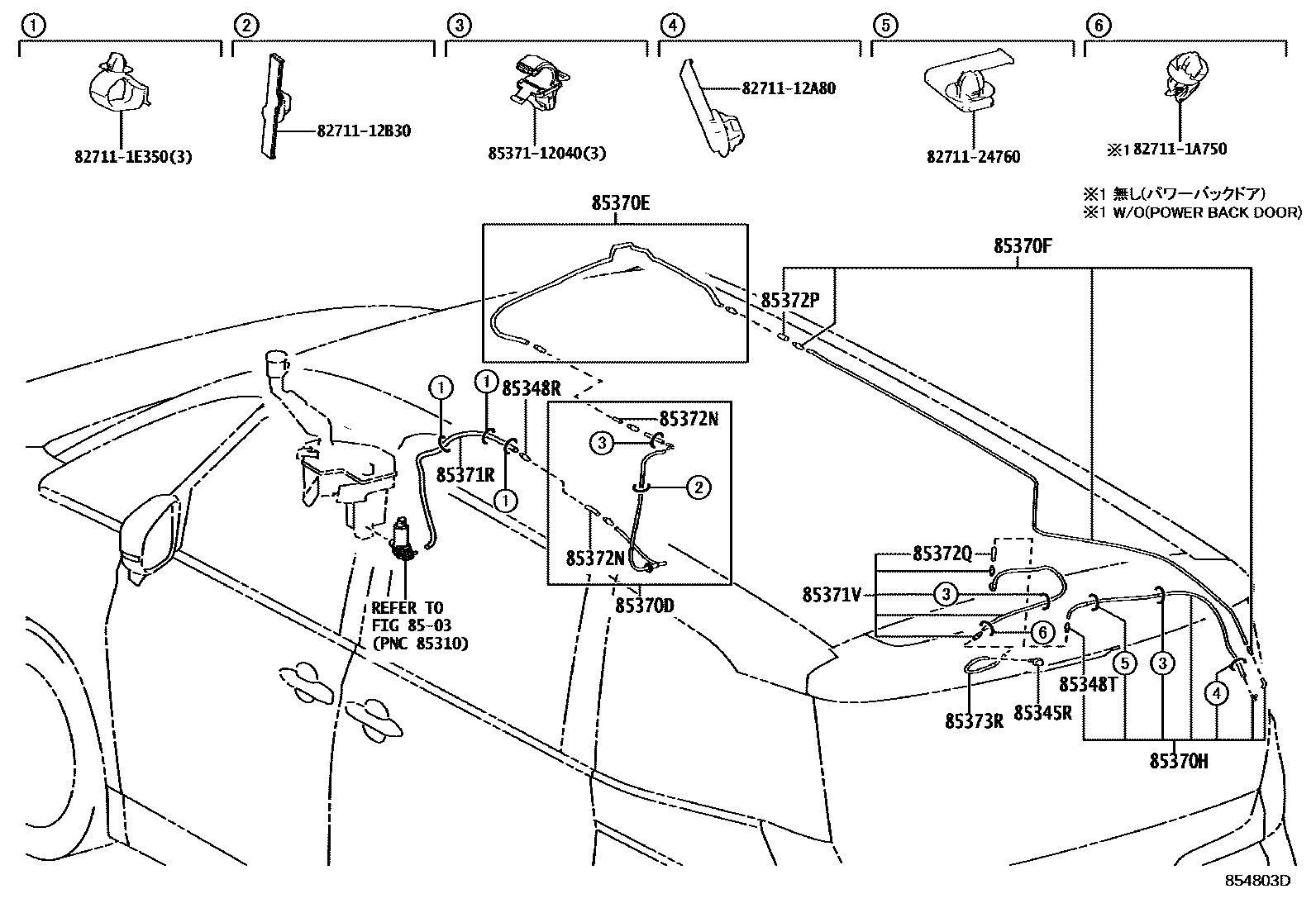

Parts diagram
8503WINDSHIELD WASHER
→ Go to FIG 85-03
85345RNOZZLE, REAR WASHER
main85391-28210i202201-202501
85348RJOINT, REAR WASHER HOSE, NO.1
main85317-V1010i202201-202501
85348TJOINT, REAR WASHER HOSE, NO.2
main85375-V1070i202201-202501
85370DHOSE ASSY, REAR WASHER, NO.1
main85370-V1030i202201-202501
85370EHOSE ASSY, REAR WASHER, NO.2
main85370-V1040i202201-202501
85370FHOSE ASSY, REAR WASHER, NO.3
main85370-V1060i202201-202501
85370HHOSE ASSY, REAR WASHER, NO.4
main85370-V1070i202201-202501
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
main90069-46244i202201-202501
L=780
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
main85370-V1050i202201-202501
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
main90069-46231×2i202201-202501
L=40
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
main90069-46231i202201-202501
L=40
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
main90069-46231i202201-202501
L=40
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
main90069-46232i202201-202501
L=200
8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12A80
8271112B30WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-12B30
827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A750
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-24760
8537112040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
main85371-12040

20 parts on this diagram · 1 diagram in section

REAR WASHER for Toyota NOAH/VOXY

This section contains 20 genuine Toyota parts for the REAR WASHER system of the Toyota NOAH/VOXY. Key components include: WINDSHIELD WASHER, NOZZLE, REAR WASHER, JOINT, REAR WASHER HOSE, NO.1, JOINT, REAR WASHER HOSE, NO.2, HOSE ASSY, REAR WASHER, NO.1.
