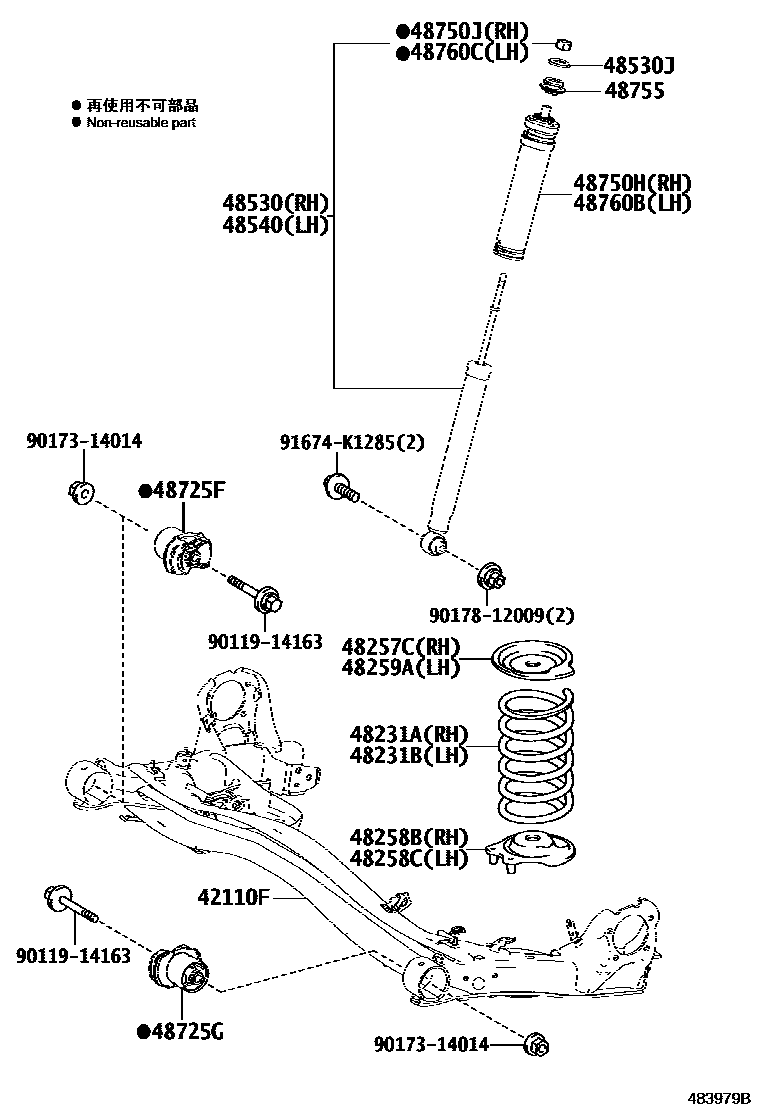

Toyota NOAH/VOXY — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
INDONESIA SPEC
48231BSPRING, COIL, REAR LH
INDONESIA SPEC
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48531-28770
MARK 48531-28780
MARK 48531-28870
MARK 48531-28880
MARK 48531-28890
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48531-28770
MARK 48531-28780
MARK 48531-28870
MARK 48531-28880
MARK 48531-28890
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48755SUPPORT, REAR SUSPENSION
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
9011914163
main90119-14163
9017314014
main90173-14014
9017812009
main90178-12009
91674K1285
main91674-K1285
21 parts on this diagram · 1 diagram in section
