Toyota NOAH/VOXY — REAR SPRING & SHOCK ABSORBER

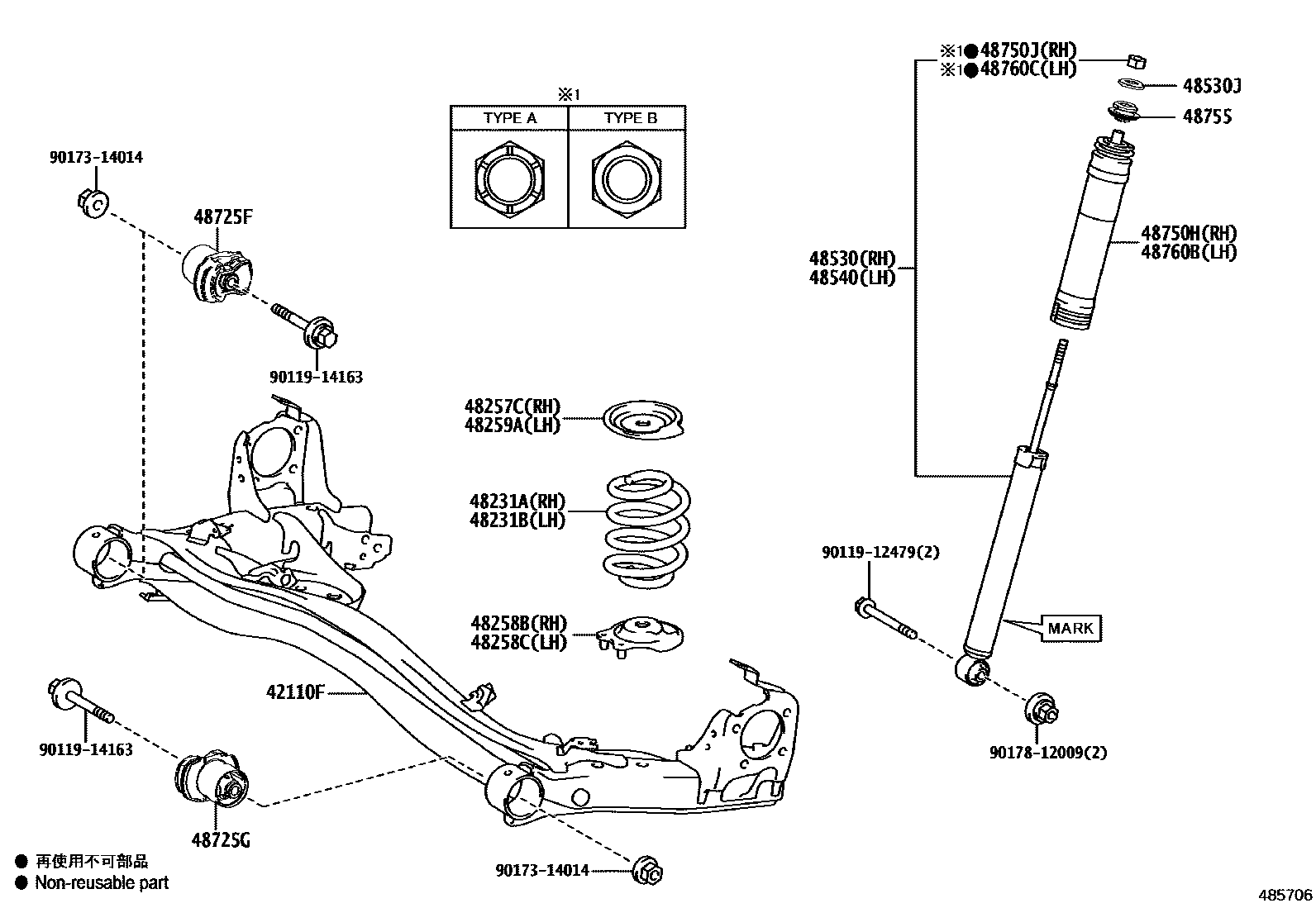

Parts diagram
42110FBEAM ASSY, REAR AXLE
main42101-28480i202201-202501
48231ASPRING, COIL, REAR RH
main48231-V1010i202201-202501
main48231-V1020i202201
48231BSPRING, COIL, REAR LH
main48231-V1010i202201-202501
main48231-V1020i202201
48257CINSULATOR, REAR COIL SPRING, UPPER RH
main48257-28070i202201-202501
48258BINSULATOR, REAR COIL SPRING, LOWER RH
main48258-28050i202201-202501
48258CINSULATOR, REAR COIL SPRING, LOWER LH
main48258-28050i202201-202501
48259AINSULATOR, REAR COIL SPRING, UPPER LH
main48257-28070i202201-202501
48530ABSORBER ASSY, SHOCK, REAR RH
main48530-V9005i202201-202501
MARK 48530-V1010
main48530-V9015i202201
MARK 48530-V1030
48530JRETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER)
main90948-02192i202201-202501
48540ABSORBER ASSY, SHOCK, REAR LH
main48530-V9005i202201-202501
MARK 48530-V1010
main48530-V9015i202201
MARK 48530-V1030
48725FBUSH, REAR AXLE CARRIER, RH
main48725-28080i202201-202501
48725GBUSH, REAR AXLE CARRIER, LH
main48725-28080i202201-202501
48750HSUPPORT ASSY, REAR SUSPENSION, RH
main48750-28021i202201-202501
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
main90177-12002i202201-202501
TYPE A:REFER ILLUST.
main94130-61200i202201-202501
TYPE B:REFER ILLUST.
48755SUPPORT, REAR SUSPENSION
main90905-40019i202201-202501
48760BSUPPORT ASSY REAR SUSPENSION, LH
main48750-28021i202201-202501
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
main90177-12002i202201-202501
TYPE A:REFER ILLUST.
main94130-61200i202201-202501
TYPE B:REFER ILLUST.
9011912479
main90119-12479
9011914163
main90119-14163
9017314014
main90173-14014
9017812009
main90178-12009

21 parts on this diagram · 1 diagram in section

REAR SPRING & SHOCK ABSORBER for Toyota NOAH/VOXY

This section contains 21 genuine Toyota parts for the REAR SPRING & SHOCK ABSORBER system of the Toyota NOAH/VOXY. Key components include: BEAM ASSY, REAR AXLE, SPRING, COIL, REAR RH, SPRING, COIL, REAR LH, INSULATOR, REAR COIL SPRING, UPPER RH, INSULATOR, REAR COIL SPRING, LOWER RH.
