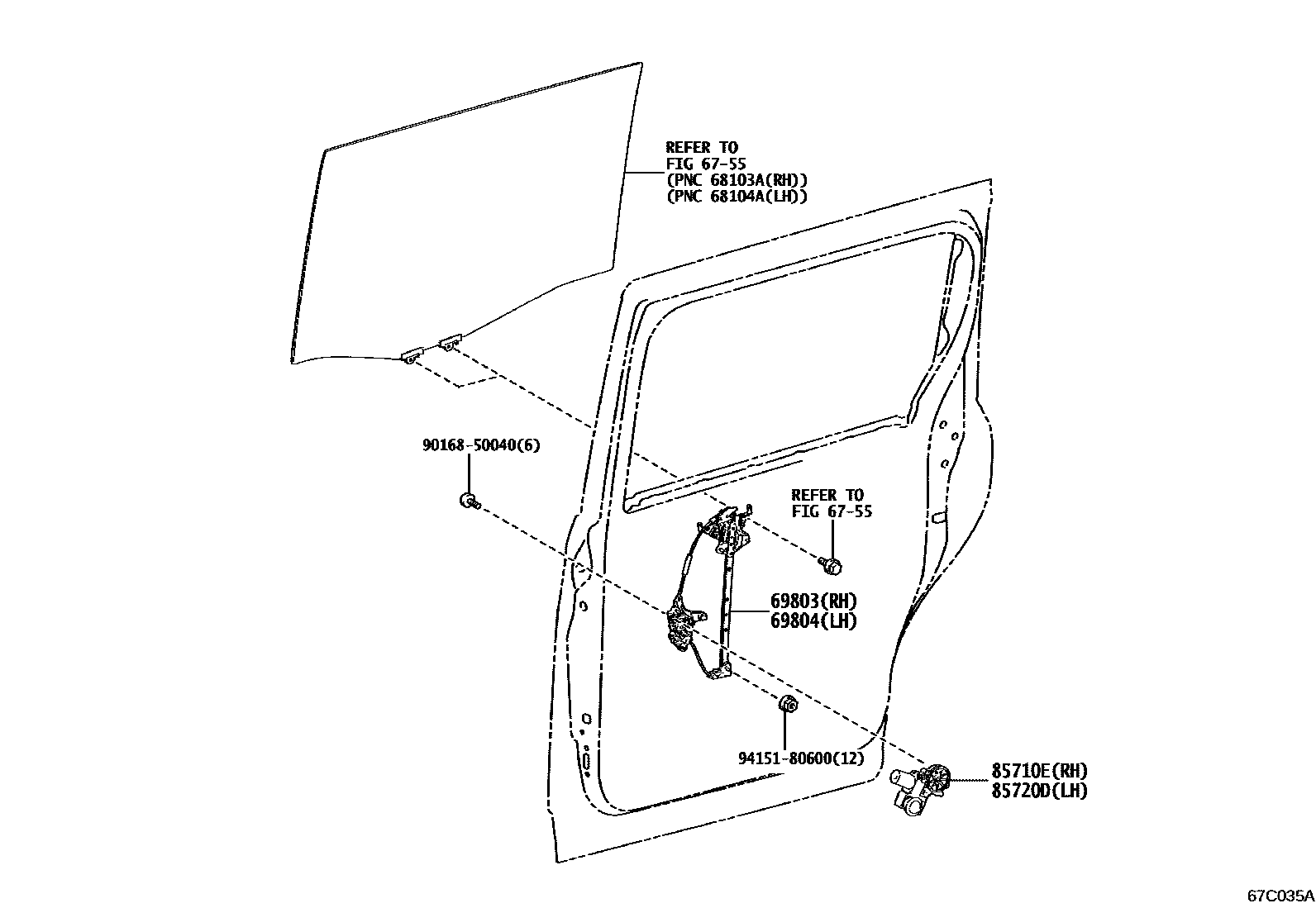

Toyota NOAH/VOXY — REAR DOOR WINDOW REGULATOR & HINGE

6755REAR DOOR PANEL & GLASS

→ Go to FIG 67-55

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-28050i202201-202501

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-28110i202201-202501

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-28170i202201-202501

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-28170i202201-202501

9016850040

main90168-50040

9415180600

main94151-80600

7 parts on this diagram · 1 diagram in section

REAR DOOR WINDOW REGULATOR & HINGE for Toyota NOAH/VOXY

This section contains 7 genuine Toyota parts for the REAR DOOR WINDOW REGULATOR & HINGE system of the Toyota NOAH/VOXY. Key components include: REAR DOOR PANEL & GLASS, REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH, REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH, MOTOR ASSY, POWER WINDOW REGULATOR, RH, MOTOR ASSY, POWER WINDOW REGULATOR, LH.
