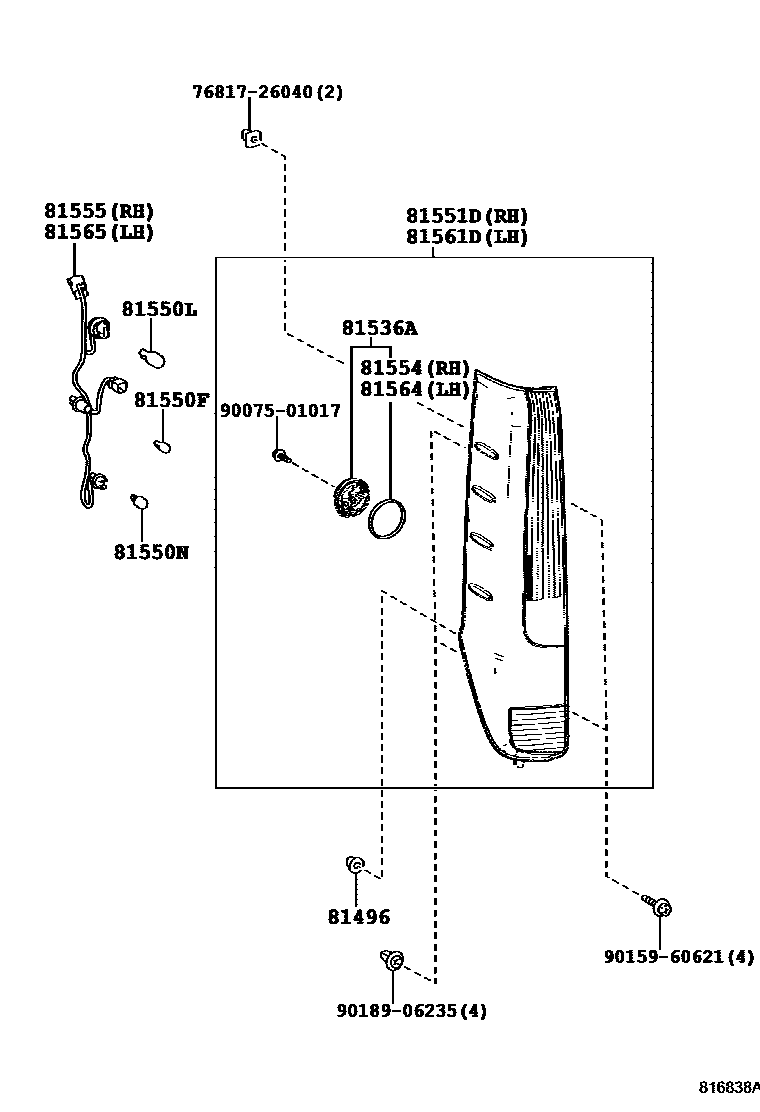

Toyota NOAH/VOXY — REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81496GUIDE, REAR COMBINATION LAMP

main81496-52020×2iZRR80201706

81536ALED, REAR COMBINATION LAMP

main81536-15120×6iZRR80..ZS201706-202112

main81536-28550×2iZRR80201401-201706

81550FBULB, TAILLAMP

main90981-11069×2iZRR80201401-201706

12V 5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iZRR80201401-201706

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059×2iZRR80201706

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-28550iZRR80201401-201706

main81551-28690iZRR80..NOAH201706-201805

main81551-28691iZRR80..NOAH201805-202005

main81551-28700iZRR80..ZS201706-202001

main81551-28701iZRR80..ZS202001

main81551-V1030iZRR80..NOAH202005-202011

main81551-V1031iZRR80..NOAH202011

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-28550iZRR80201401-201706

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28550iZRR80201401-201706

main81555-28690iZRR80..NOAH201706

main81555-28700iZRR80..ZS201706

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-28630iZRR80201401-201706

main81561-28690iZRR80..NOAH201706-201805

main81561-28691iZRR80..NOAH201805-202005

main81561-28700iZRR80..ZS201706-202001

main81561-28701iZRR80..ZS202001

main81561-V1030iZRR80..NOAH202005-202011

main81561-V1031iZRR80..NOAH202011

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-28550iZRR80201401-201706

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28550iZRR80201401-201706

main81555-28690iZRR80..NOAH201706

main81555-28700iZRR80..ZS201706

7681726040CLIP, BACK DOOR OUTSIDE GARNISH

main76817-26040

9007501017

main90075-01017

9015960621

main90159-60621

9018906235

main90189-06235

15 parts on this diagram · 3 diagrams in section
