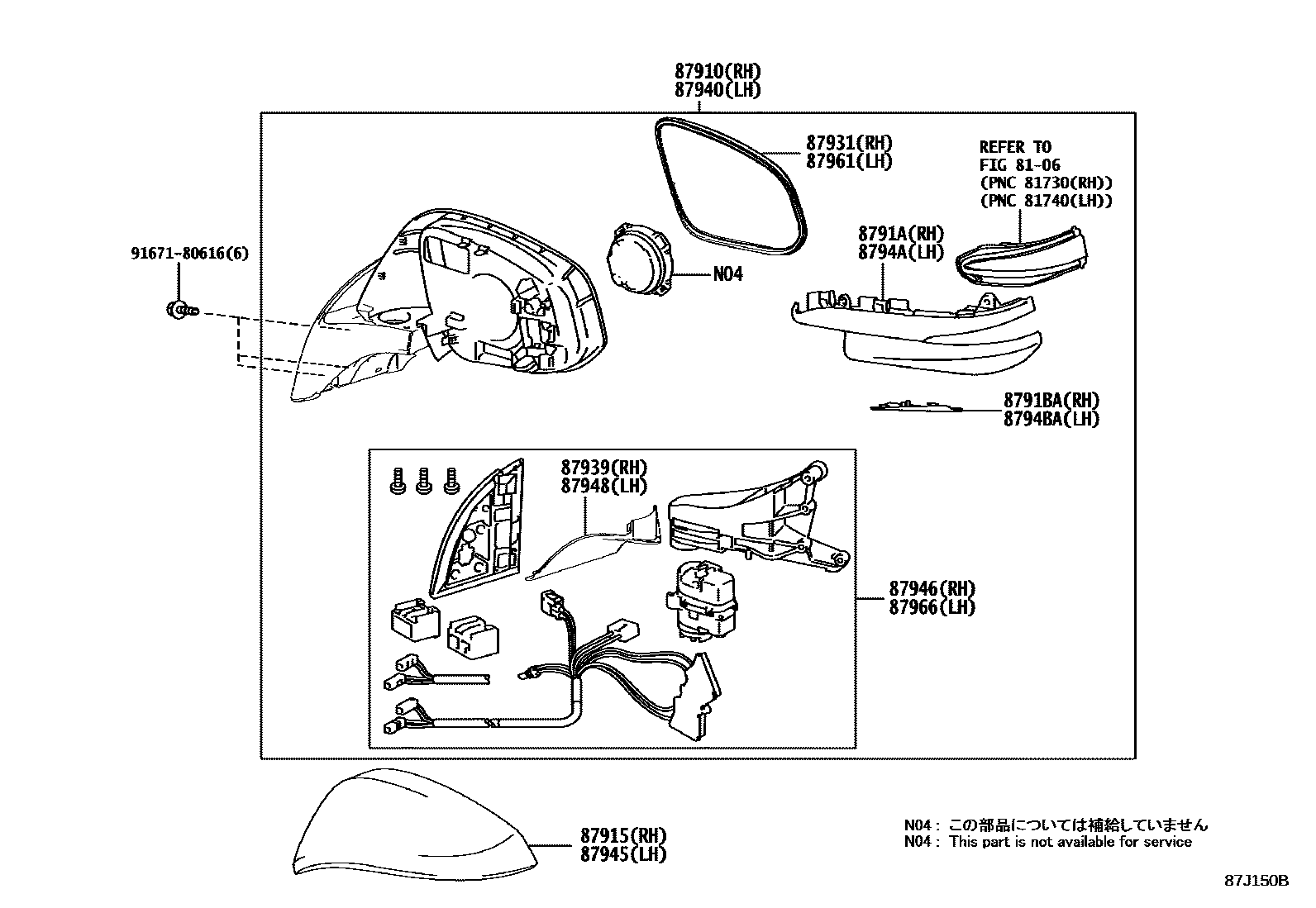

Toyota NOAH/VOXY — MIRROR
8106
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
INAZUMA SPARKING BLACK GF,224
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
DK.VIOLET M.M.,9AF
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
BLACKISH AGEHA M.M.,221
INAZUMA SPARKING BLACK GF,224
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
DK.VIOLET M.M.,9AF
87948COVER, OUTER MIRROR HOLE, LH
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
9167180616
main91671-80616
16 parts on this diagram · 2 diagrams in section
