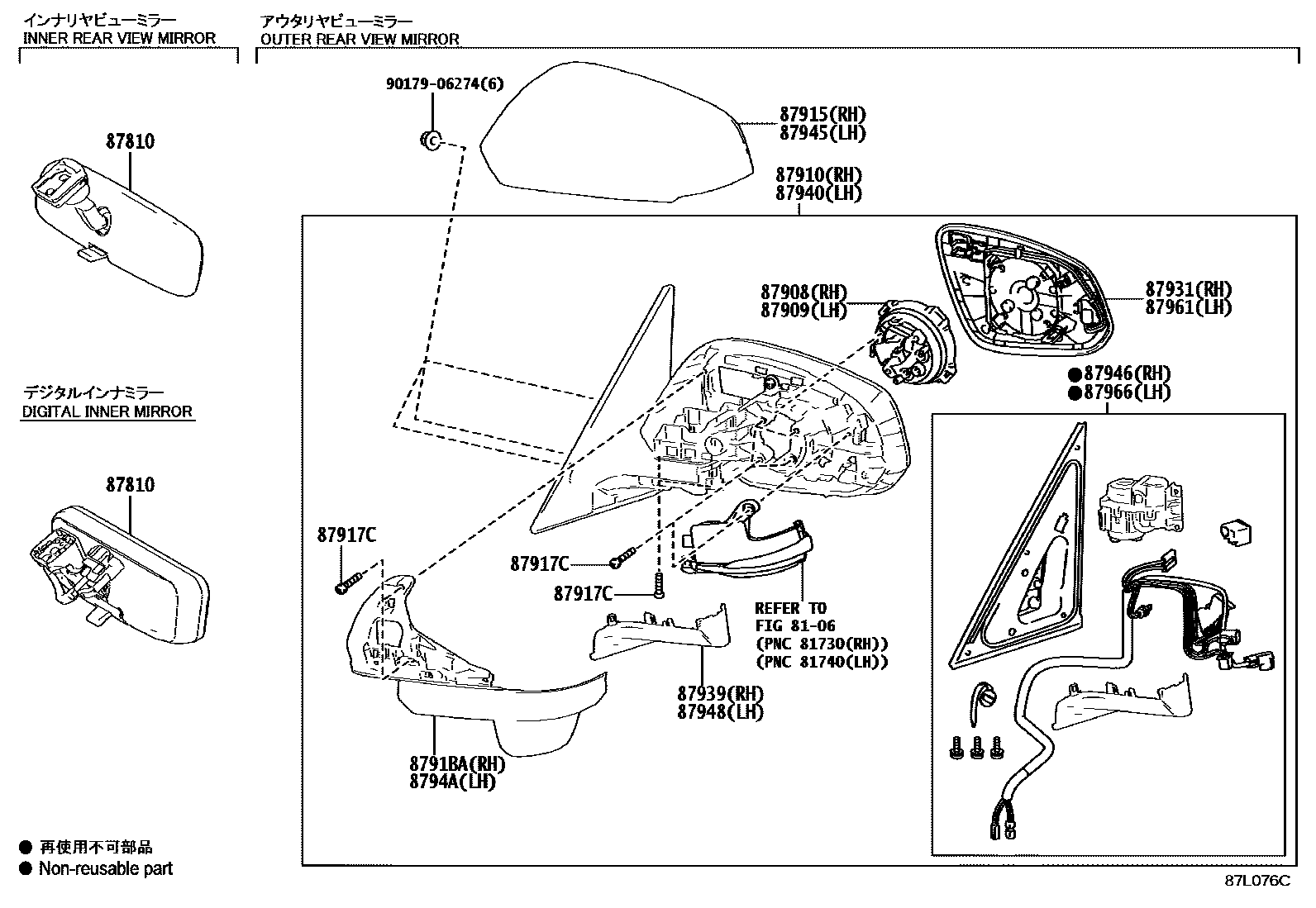

Toyota NOAH/VOXY — MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
MASSIVE GRAY,1L6
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
RED M.M.,3R3
STEEL BLONDE ME.,4X1
GLITTER BLACK GF.,226
87917CSCREW, OUTER MIRROR
FOR RH MIRROR
8791BACOVER, OUTER MIRROR, RH NO.3
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
METAL STREAM ME,1K0
MASSIVE GRAY,1L6
ATTITUDE BLACK MC.,218
SPARKLING BLACK PEARL CS.,220
RED M.M.,3R3
STEEL BLONDE ME.,4X1
GLITTER BLACK GF.,226
87946RETRACTOR, OUTER MIRROR, RH
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
87966RETRACTOR, OUTER MIRROR, LH
9017906274
main90179-06274
18 parts on this diagram · 1 diagram in section
