Toyota NOAH/VOXY — METER

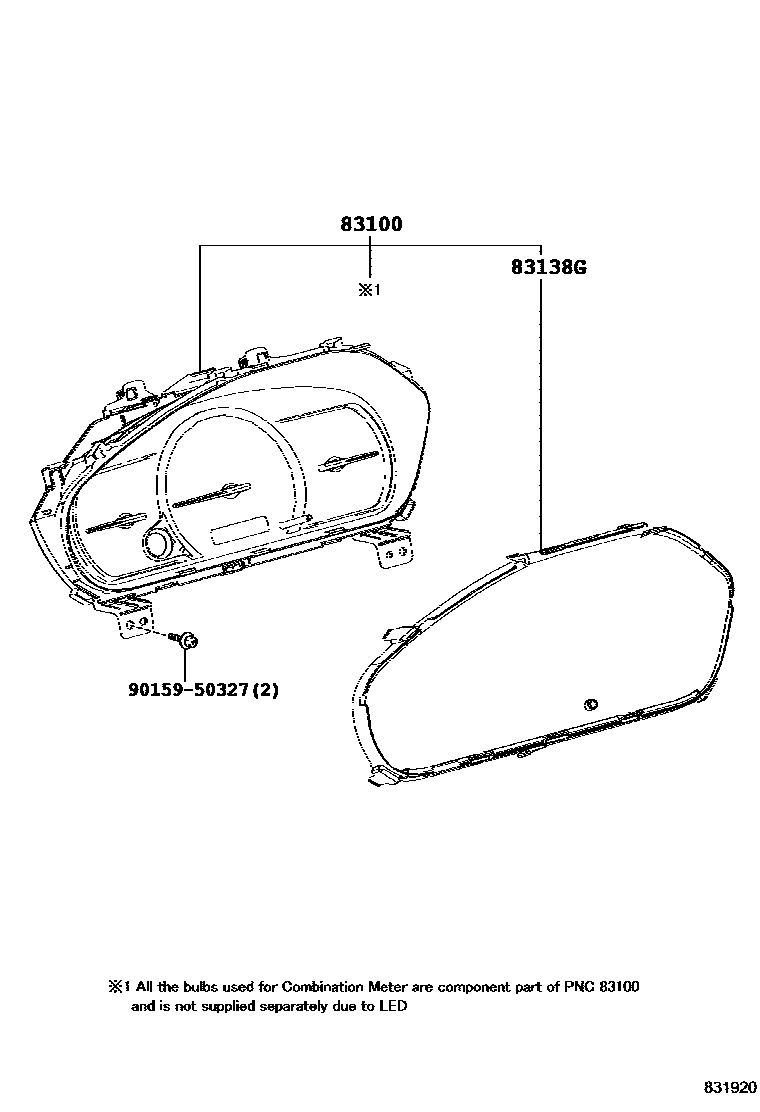

Parts diagram

83100METER ASSY, COMBINATION

main83800-28L90i201401-201601

main83800-28L91i201601-201706

main83800-28L92i201706-201901

YAZAKI

main83800-28L93i201901-202004

YAZAKI

main83800-28M00i201401-201601

main83800-28M01i201601-201706

main83800-28M02i201706-201901

YAZAKI

main83800-28M03i201901-202004

YAZAKI

main83800-28N90i202005

YAZAKI

main83800-28P00i202005

YAZAKI

83138GGLASS, COMBINATION METER

main83852-28L90i201401-201706

main83852-28M00i201401-201706

9015950327

main90159-50327

3 parts on this diagram · 1 diagram in section
