Toyota NOAH/VOXY — MANIFOLD

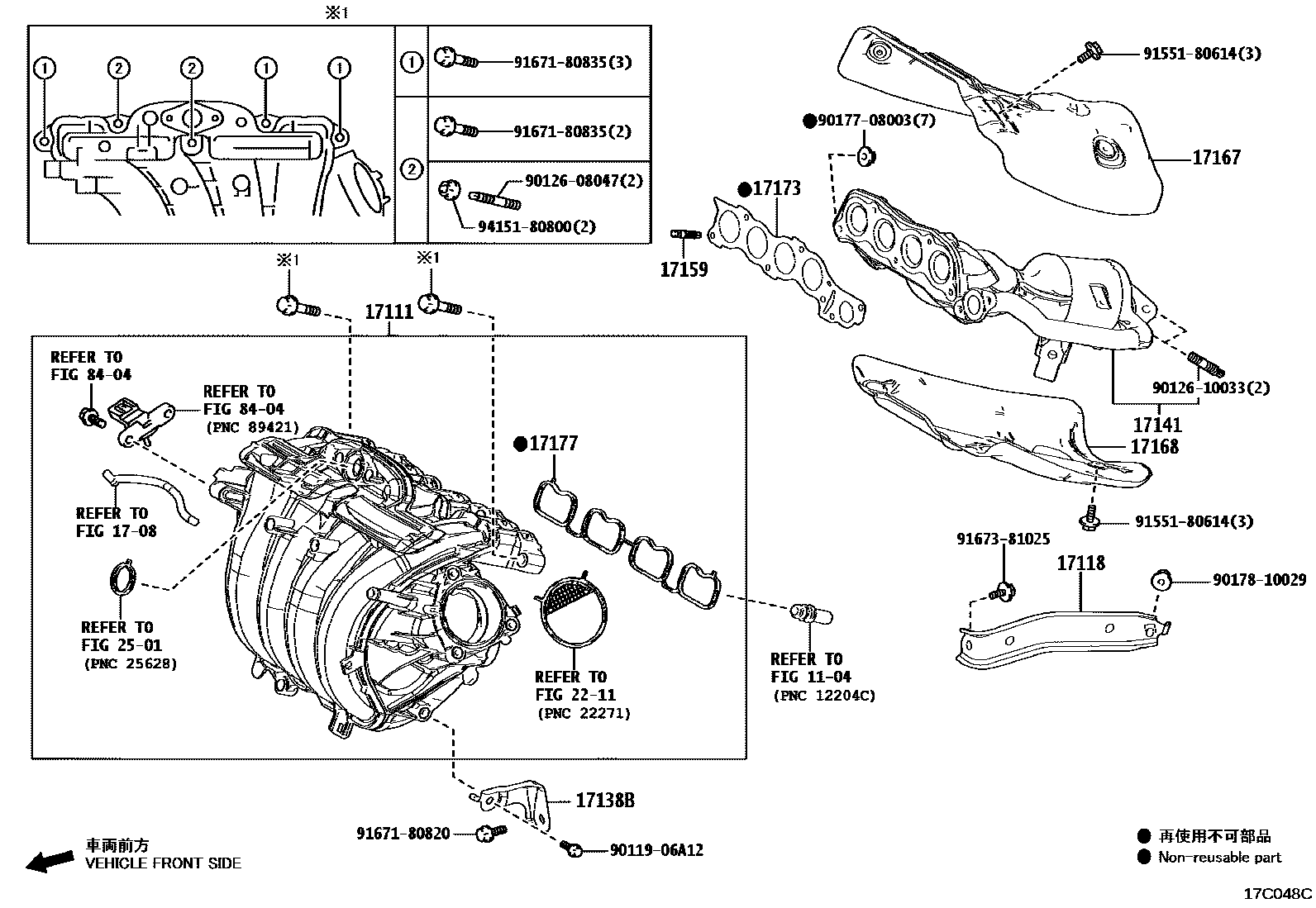

Parts diagram

1104

1708

17111MANIFOLD, INTAKE

main17120-24010i202201-202501

17118STAY, MANIFOLD

main17118-24040i202201-202501

17138BSTAY, INTAKE MANIFOLD

main17138-24010i202201-202501

17141MANIFOLD, EXHAUST

main17141-24240i202201-202501

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052×7i202201-202501

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-24070i202201-202501

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-24050i202201-202501

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-24010i202201-202501

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020i202201-202501

2211

2501

8404

9011906A12

main90119-06A12

9012608047

main90126-08047

9012610033

main90126-10033

9017708003

main90177-08003

9017810029

main90178-10029

9155180614

main91551-80614

9167180820

main91671-80820

9167180835

main91671-80835

9167381025

main91673-81025

9415180800

main94151-80800

24 parts on this diagram · 1 diagram in section
