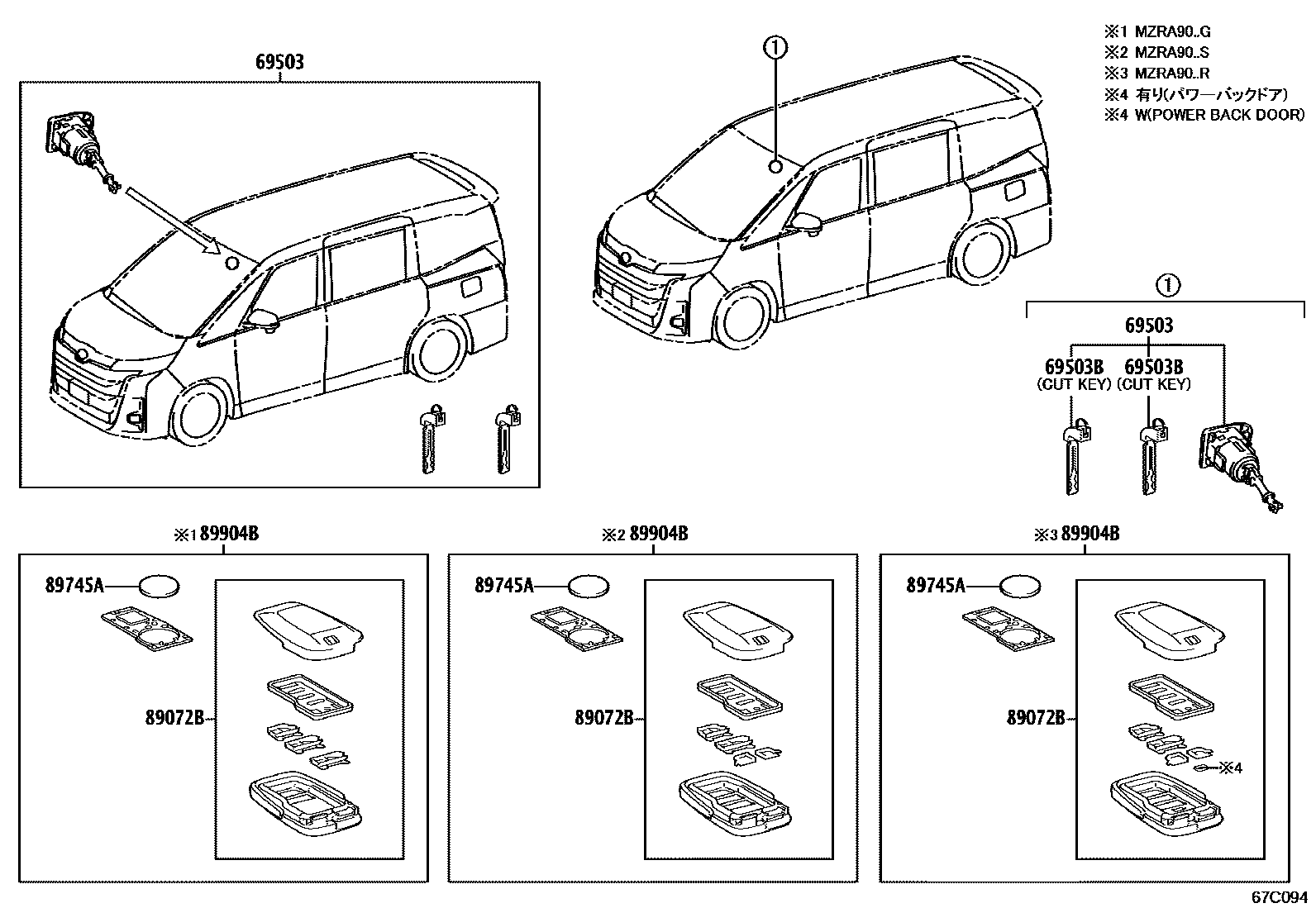

Toyota NOAH/VOXY — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-V1020iMZRA90202201-202208

main69005-V1021iMZRA90..S202209-202501

69503BKEY, CUT

main69515-K0010×2iMZRA90..S202201-202501

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-V1020×2iMZRA90..G202201

main89072-V1030×2iMZRA90..S202201-202501

main89072-V1110×2iMZRA90..R202201-202401

main89072-V1111×2iMZRA90..R202402

89745ABATTERY, TRANSMITTER

main89745-K0010iMZRA90..S202201-202501

CR2450

main89745-K0020iMZRA90..R202201

CR2450

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main8990H-52240iMZRA90..G202404-202405

main8990H-52241iMZRA90..G202406

main8990H-52260iMZRA90..S202404-202405

main8990H-52261iMZRA90..S202406

main8990H-V1090iMZRA90..G202201-202306

main8990H-V1091iMZRA90..G202307-202404

main8990H-V1100iMZRA90..S202201-202306

main8990H-V1101iMZRA90..S202307-202404

main8990H-V1110iMZRA90..R202201-202211

main8990H-V1111iMZRA90..R202212-202401

main8990H-V1112iMZRA90..R202402-202410

main8990H-V1113iMZRA90..R202411

5 parts on this diagram · 1 diagram in section
