Toyota NOAH/VOXY — INSTRUMENT PANEL & GLOVE COMPARTMENT

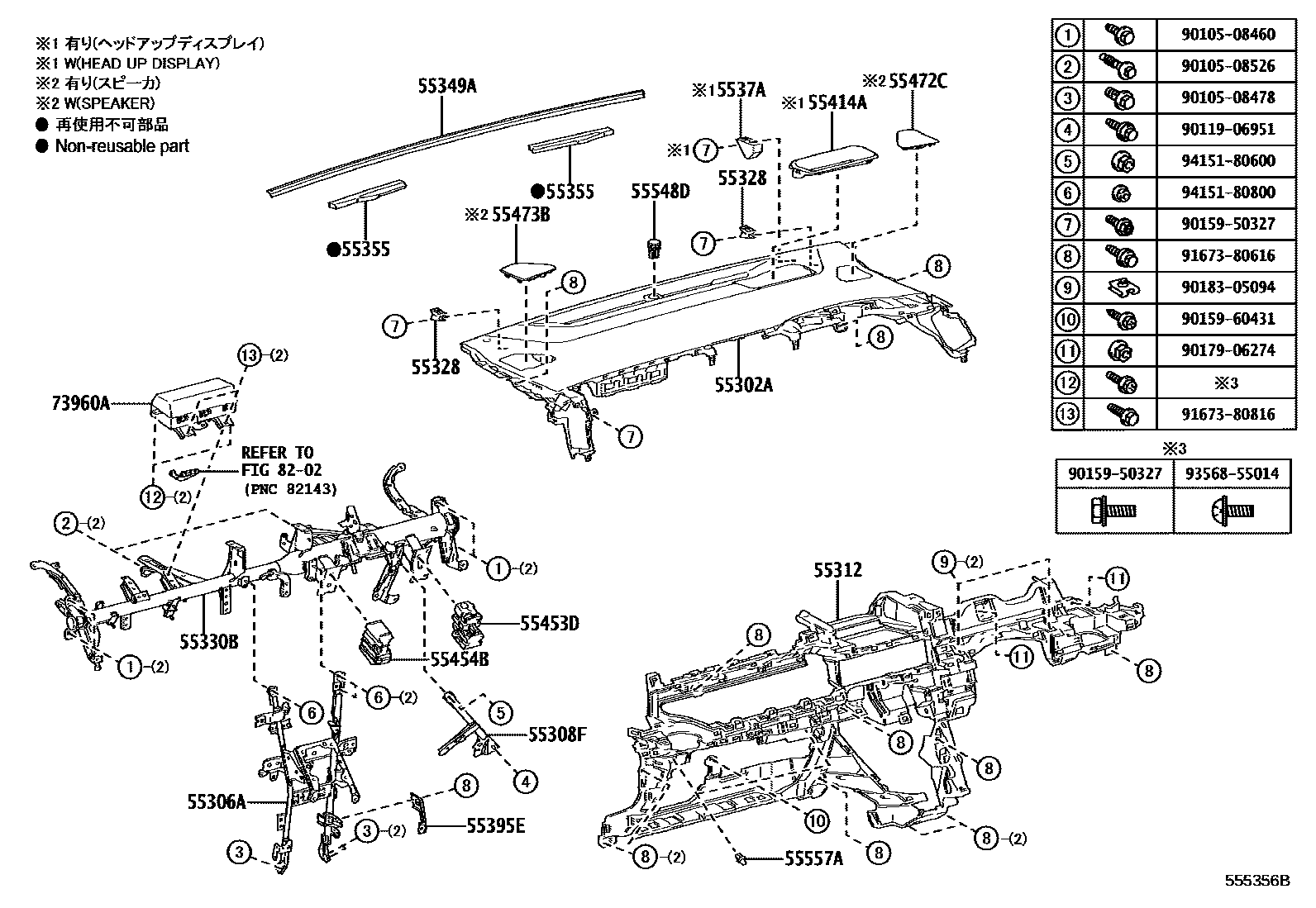

Parts diagram

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-V1010-C0i202201

BLACK,TRIM0#,2#

main55302-V1020-C0i202201-202501

BLACK,TRIM2#

main55302-V1030-C0i202201

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-V1010i202201

55308FBRACE SUB-ASSY, INSTRUMENT PANEL, NO.3

main55308-V1010i202201-202501

55312PANEL, INSTRUMENT, LOWER

main55312-V1010i202201-202501

55328PIN, INSTRUMENT PANEL, NO.1

main55328-28130×2i202201-202501

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-28240i202201-202501

55349ACUSHION, INSTRUMENT PANEL

main55349-V1010i202201-202501

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-V1010×2i202201-202501

5537ABRACKET, INSTRUMENT PANEL GUIDE, NO.3

main5537A-V1010i202201

55395EBRACKET, CONSOLE MOUNTING, NO.3

main55395-V1010i202201-202501

55414APANEL, INSTRUMENT CLUSTER FINISH, END

main55414-V1010-C0i202201

BLACK,TRIM2#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-V1010i202201-202501

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-V1010i202201-202501

55472CPANEL, INSTRUMENT PANEL SPEAKER, NO.1

main55472-V1010-C0i202201-202501

BLACK,TRIM2#

55473BPANEL, INSTRUMENT PANEL SPEAKER, NO.2

main55473-V1010-C0i202201-202501

BLACK,TRIM2#

55548DCOVER, INSTRUMENT PANEL HOLE

main55548-26030i202201-202501

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-26010×2i202201-202501

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-V1010i202201-202501

8202

9010508460

main90105-08460

9010508478

main90105-08478

9010508526

main90105-08526

9011906951

main90119-06951

9015950327

main90159-50327

9015960431

main90159-60431

9017906274

main90179-06274

9018305094

main90183-05094

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

32 parts on this diagram · 4 diagrams in section
