Toyota NOAH/VOXY — INSIDE TRIM BOARD

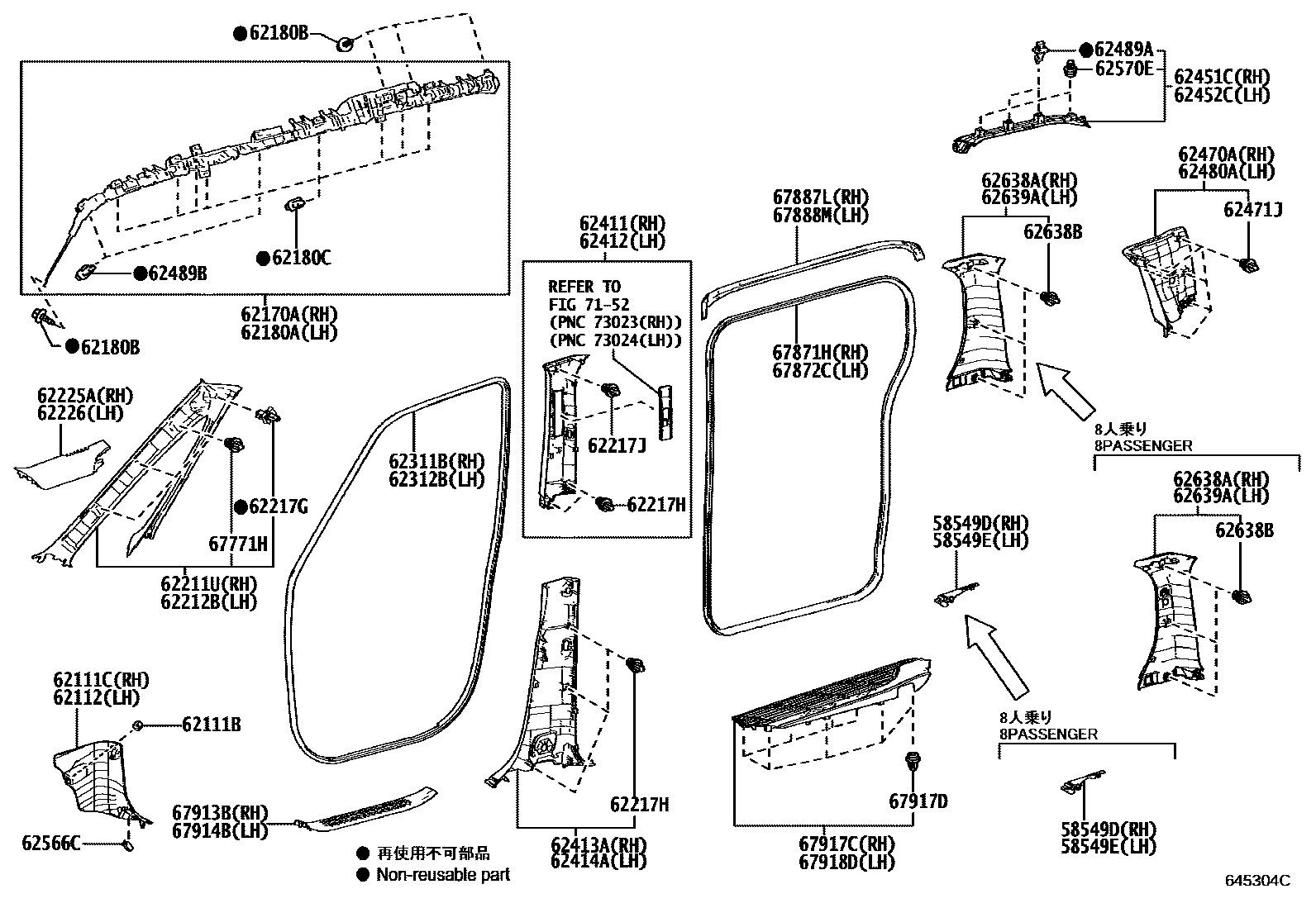

Parts diagram
58549DCOVER, REAR FLOOR MAT SEAT BELT ANCHOR, RH
main58549-V1010-C0i202201
BLACK,TRIM2#
main58549-V1030-C0i202201
BLACK,TRIM0#,2#
58549ECOVER, REAR FLOOR MAT SEAT BELT ANCHOR, LH
main58549-V1020-C0i202201-202501
BLACK,TRIM2#
main58549-V1040-C0i202201
BLACK,TRIM0#,2#
62111BCLIP(FOR COWL SIDE TRIM)
main90467-06147×2i202201
62111CBOARD, COWL SIDE TRIM, RH
main62111-V1010-C0i202201-202501
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
main62112-V1020-C0i202201
BLACK,TRIM2#
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-V1010i202201
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-V1010i202201-202501
62180BBOLT, W/WASHER
main90119-06869×8i202201-202501
62180CCLIP, CURTAIN SHIELD AIRBAG
main90467-18017×16i202201
62211UGARNISH ASSY, FRONT PILLAR, RH
main62210-V1010-C0i202201
BLACK,TRIM0#,2#
main62210-V1010-C1i202201-202501
BLACK,TRIM2#
main62210-V1020-C1i202201
BLACK,TRIM2#
62212BGARNISH ASSY, FRONT PILLAR, LH
main62220-V1010-C0i202201
BLACK,TRIM0#,2#
main62220-V1010-C1i202201-202501
BLACK,TRIM2#
main62220-V1020-C1i202201
BLACK,TRIM2#
62217GCLIP, FRONT PILLAR GARNISH
main62217-42050×2i202201
62217HCLIP, CENTER PILLER GARNISH
main90467-10161×10i202201-202501
62217JCLIP, CENTER PILLER GARNISH
main90467-10167×2i202201-202501
62225AGARNISH, FRONT PILLAR, LOWER RH
main62225-V1010-C0i202201-202501
BLACK,TRIM2#
62226GARNISH, FRONT PILLAR, LOWER LH
main62226-V1010-C0i202201-202501
BLACK,TRIM2#
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-28120i202201-202501
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-28120i202201-202501
62411GARNISH, CENTER PILLAR, RH
main62410-V1010-C0i202201-202207
BLACK,TRIM2#
main62410-V1010-C1i202207-202501
BLACK,TRIM2#
62412GARNISH, CENTER PILLAR, LH
main62420-V1010-C0i202201-202207
BLACK,TRIM2#
main62420-V1010-C1i202207
BLACK,TRIM2#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-V1010-C0i202201-202403
BLACK,TRIM2#
main62413-V1011-C0i202404-202501
BLACK,TRIM2#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-V1010-C0i202201-202403
BLACK,TRIM2#
main62414-V1011-C0i202404
BLACK,TRIM2#
62451CGARNISH, ROOF SIDE RAIL, REAR RH
main62451-V1010-B0i202201
LT.GRAY,TRIM0#,2#
main62451-V1010-C0i202201-202501
BLACK,TRIM2#
62452CGARNISH, ROOF SIDE RAIL, REAR LH
main62452-V1010-B0i202201
LT.GRAY,TRIM0#,2#
main62452-V1010-C0i202201-202501
BLACK,TRIM2#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-V1010-B0i202201
LT.GRAY,TRIM0#,2#
main62470-V1010-C0i202201-202501
BLACK,TRIM2#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-09245×10i202201-202501
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-V1010-B0i202201
LT.GRAY,TRIM0#,2#
main62480-V1010-C0i202201-202501
BLACK,TRIM2#
62489ACLIP, ROOF SIDE INNER GARNISH
main62489-60020×4i202201-202501
62489BCLIP, ROOF SIDE INNER GARNISH
main62489-28010×4i202201-202501
62566CCLAMP, COWL SIDE TRIM
main67923-28020×2i202201-202501
62570ECLIP, REAR WINDOW SIDE GARNISH
main90467-10161×4i202201-202501
62638AGARNISH, QUARTER PILLAR, RH
main62638-V1010-C0i202201-202501
BLACK,TRIM2#
main62638-V1020-C0i202201
BLACK,TRIM0#,2#
62638BCLIP
main90467-10161×6i202201-202501
62639AGARNISH, QUARTER PILLAR, LH
main62639-V1010-C0i202201-202501
BLACK,TRIM2#
main62639-V1020-C0i202201
BLACK,TRIM0#,2#
67771HRETAINER, DOOR TRIM
main67771-12060×6i202201-202501
67871HWEATHERSTRIP, SLIDE DOOR, NO.1 RH
main67871-28090i202201-202302
main67871-28091i202303-202501
67872CWEATHERSTRIP, SLIDE DOOR, NO.1 LH
main67872-28140i202201-202302
main67872-28141i202303-202501
67887LWEATHERSTRIP, SLIDE DOOR, NO.2 RH
main67887-V1010i202201-202501
67888MWEATHERSTRIP, SLIDE DOOR, NO.2 LH
main67888-V1010i202201-202501
67913BPLATE, FRONT DOOR SCUFF, RH
main67913-V1010-C0i202201-202501
BLACK,TRIM2#
67914BPLATE, FRONT DOOR SCUFF, LH
main67914-V1010-C0i202201-202501
BLACK,TRIM2#
67917CPLATE, REAR DOOR SCUFF, RH
main67917-V1010-C0i202201-202501
BLACK,TRIM2#
67917DCLIP, REAR DOOR SCUFF PLATE
main90467-09231×16i202201-202501
67918DPLATE, REAR DOOR SCUFF, LH
main67918-V1010-C0i202201-202501
BLACK,TRIM2#
7152

45 parts on this diagram · 2 diagrams in section
