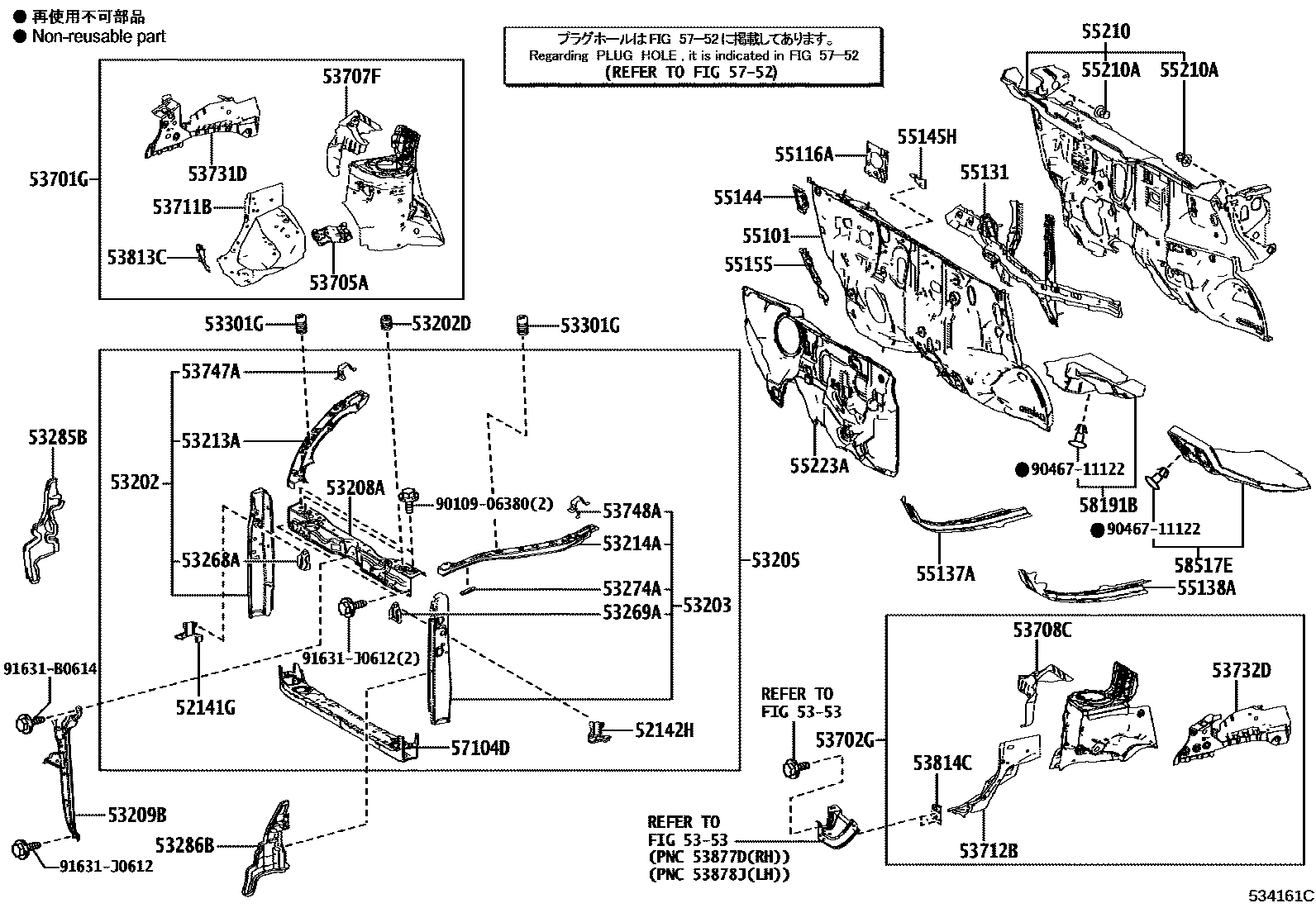

Toyota NOAH/VOXY — FRONT FENDER APRON & DASH PANEL

52141GSTAY, FRONT BUMPER, RH

main52141-28150iZRR80201401-201706

52142HSTAY, FRONT BUMPER, LH

main52142-28160iZRR80201401-201706

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-28150iZRR80201401-201706

53202DCUSHION, RADIATOR SUPPORT

main90541-15024×2iZRR80201401-201706

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-28150iZRR80201401-201706

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-28200iZRR80201401-201706

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-28040iZRR80201401-201706

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-28090iZRR80201401-201706

53213ASUPPORT, RADIATOR, UPPER RH

main53213-28070iZRR80201401-201706

53214ASUPPORT, RADIATOR, UPPER LH

main53214-28060iZRR80201401-201706

53268AREINFORCEMENT, RADIATOR MOUNTING, RH

main53268-28020iZRR80201401-201706

53269AREINFORCEMENT, RADIATOR MOUNTING, LH

main53269-28040iZRR80201401-201706

53274AREINFORCEMENT, RADIATOR SUPPORT, LH

main53266-28080iZRR80201401-201706

53285BSEAL, RADIATOR SIDE AIR, NO.1

main53285-28080iZRR80201401-201706

main53285-28081iZRR80..NOAH201706

main53285-28091iZRR80..ZS201706

53286BSEAL, RADIATOR SIDE AIR, NO.2

main53286-28080iZRR80201401-201706

main53286-28081iZRR80..NOAH201706

main53286-28091iZRR80..ZS201706

53301GCUSHION, HOOD BUMPER

main90541-15037×2iZRR80201401-201706

5353

53701GAPRON SUB-ASSY, FRONT FENDER, RH

main53701-28890iZRR80201401-201706

53702GAPRON SUB-ASSY, FRONT FENDER, LH

main53702-28790iZRR80201401-201706

53705ABRACE SUB-ASSY, FENDER APRON, RH

main53719-28020iZRR80201401-201706

53707FGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER RH

main53707-28110iZRR80201401-201706

53708CGUSSET SUB-ASSY, FRONT FENDER APRON, LOWER LH

main53708-28100iZRR80201401-201706

53711BAPRON, FRONT FENDER, FRONT RH

main53711-28110iZRR80201401-201706

53712BAPRON, FRONT FENDER, FRONT LH

main53712-44031iZRR80201401-201706

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-28070iZRR80201401-201706

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-28060iZRR80201401-201706

53747AEXTENSION, APRON FENDER SIDE, RH

main53747-28050iZRR80201401-201706

53748AEXTENSION, APRON FENDER SIDE, LH

main53748-28060iZRR80201401-201706

53813CEXTENSION, FRONT FENDER, RH

main53813-28100iZRR80201401-201706

53814CEXTENSION, FRONT FENDER, LH

main53814-28090iZRR80201401-201706

55101PANEL SUB-ASSY, DASH

main55111-28A10iZRR80201401-201706

55116APLATE, BRAKE PEDAL SUPPORT MOUNTING

main55116-28110iZRR80201401-201706

55131REINFORCEMENT, DASH PANEL

main55103-28050iZRR80201401-201706

55137ABRACE, DASH TO FRAME, RH

main55137-28080iZRR80201401-201706

55138ABRACE, DASH TO FRAME, LH

main55138-28080iZRR80201401-201706

55144BRACKET, COWL SIDE TRIM MOUNTING, NO.2

main55143-28010iZRR80201401-201706

55145HBASE, INSTRUMENT PANEL REINFORCEMENT MOUNTING

main55145-28030iZRR80201401-201706

55155BRACKET, ACCELERATOR PEDAL

main55157-28010iZRR80201401-201706

55210INSULATOR ASSY, DASH PANEL

main55210-28250iZRR80201401-201706

main55210-28251iZRR80201706

55210ACLIP

main90467-13079×4iZRR80201401-201706

55223AINSULATOR, DASH PANEL, OUTER

main55223-28110iZRR80201401-201706

main55223-28111iZRR80201706

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-28130iZRR80201401-201706

5752

58191BFOOTREST, FRONT FLOOR

main58191-28070iZRR80201401-201502

main58191-28071iZRR80201502-201706

58517EPAD, HEEL

main58517-28070iZRR80201401-201411

main58517-28071iZRR80201411-201706

9010906380

main90109-06380

9046711122

main90467-11122

91631B0614

main91631-B0614

91631J0612

main91631-J0612

49 parts on this diagram · 1 diagram in section
