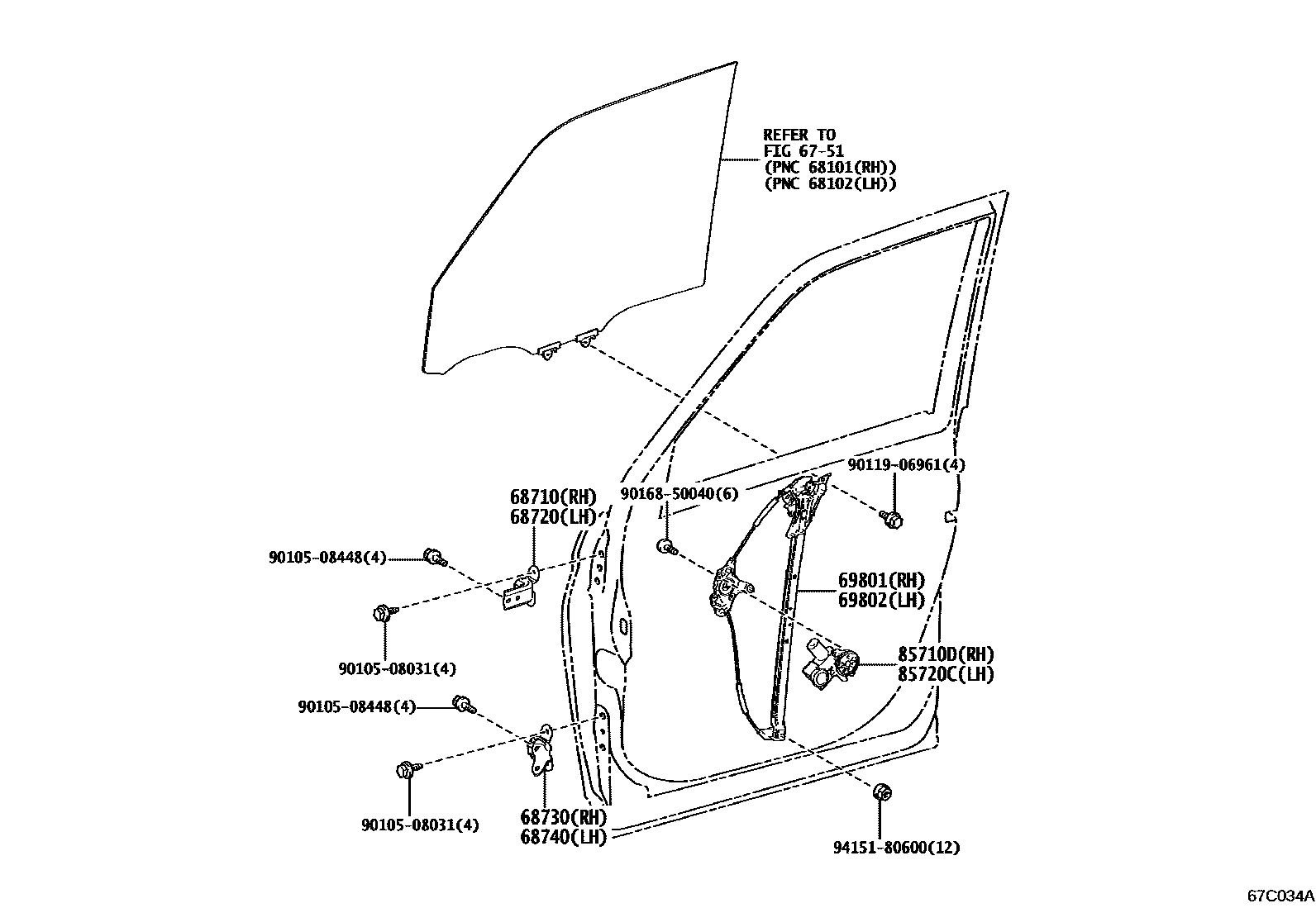

Toyota NOAH/VOXY — FRONT DOOR WINDOW REGULATOR & HINGE

6751

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iMZRA90..S202201-202501

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iMZRA90..S202201-202501

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iMZRA90..S202201-202501

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iMZRA90..S202201-202501

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-28140iMZRA90..S202201-202501

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-28120iMZRA90..S202201-202501

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-28130iMZRA90..S202201-202501

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-28160iMZRA90..S202201-202501

9010508031

main90105-08031

9010508448

main90105-08448

9011906961

main90119-06961

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
