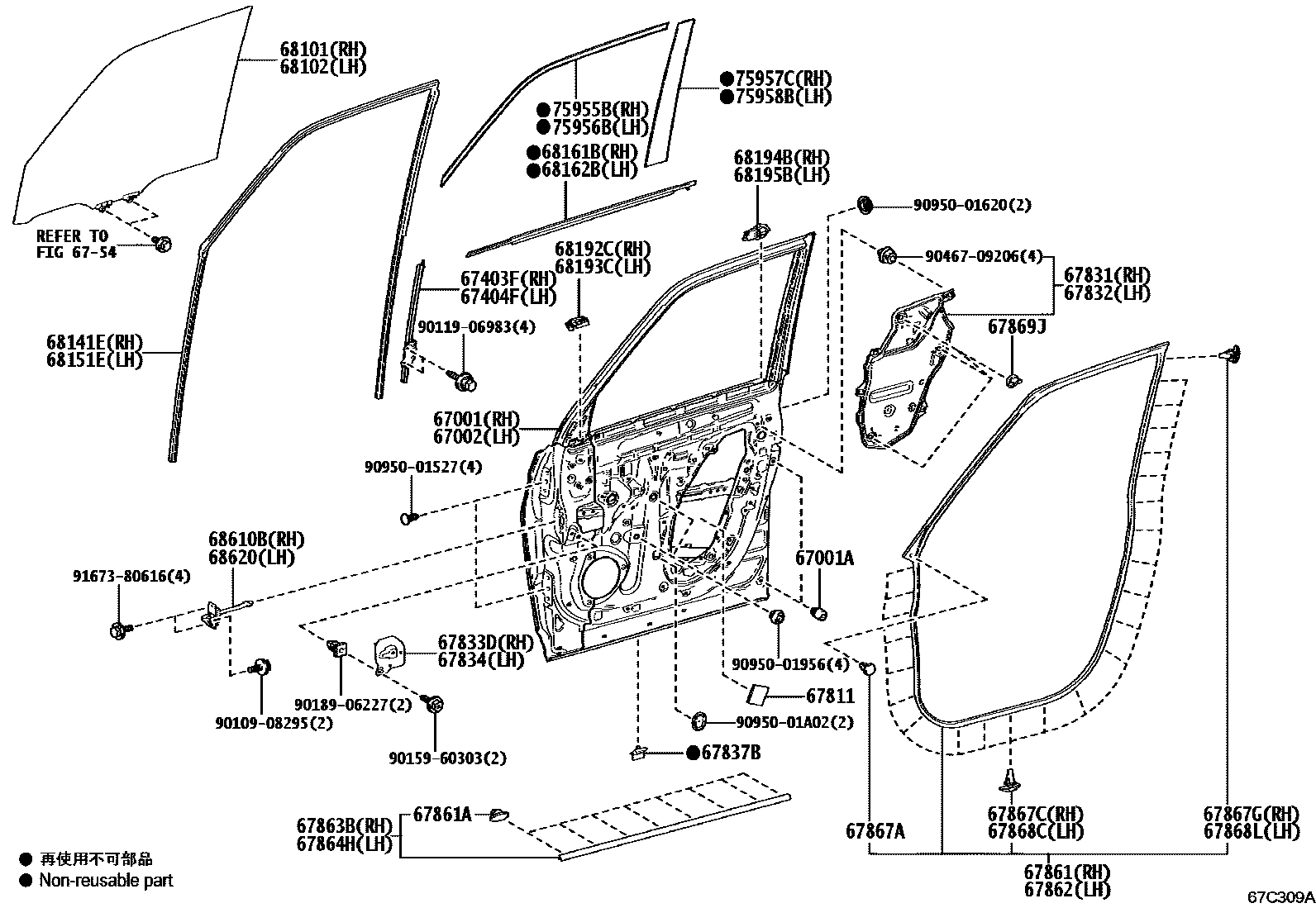

Toyota NOAH/VOXY — FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
6754
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67837BSEAL, FRONT DOOR DUST PROOF
67861WEATHERSTRIP, FRONT DOOR, RH
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
67862WEATHERSTRIP, FRONT DOOR, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864HWEATHERSTRIP, FRONT DOOR, NO.2 LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869JCLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68141ERUN, FRONT DOOR GLASS, RH
68151ERUN, FRONT DOOR GLASS, LH
68161BWEATHERSTRIP, FRONT DOOR GLASS, OUTER RH
68162BWEATHERSTRIP, FRONT DOOR GLASS, OUTER LH
68192CSEAL, FRONT DOOR BELT, FRONT RH
68193CSEAL, FRONT DOOR BELT, FRONT LH
68194BSEAL, FRONT DOOR BELT, REAR RH
68195BSEAL, FRONT DOOR BELT, REAR LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH
75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH
75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH
75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH
9010908295
main90109-08295
9011906983
main90119-06983
9015960303
main90159-60303
9018906227
main90189-06227
9046709206
main90467-09206
9095001527
main90950-01527
9095001620
main90950-01620
9095001956
main90950-01956
9095001A02
main90950-01A02
9167380616
main91673-80616
49 parts on this diagram · 2 diagrams in section
