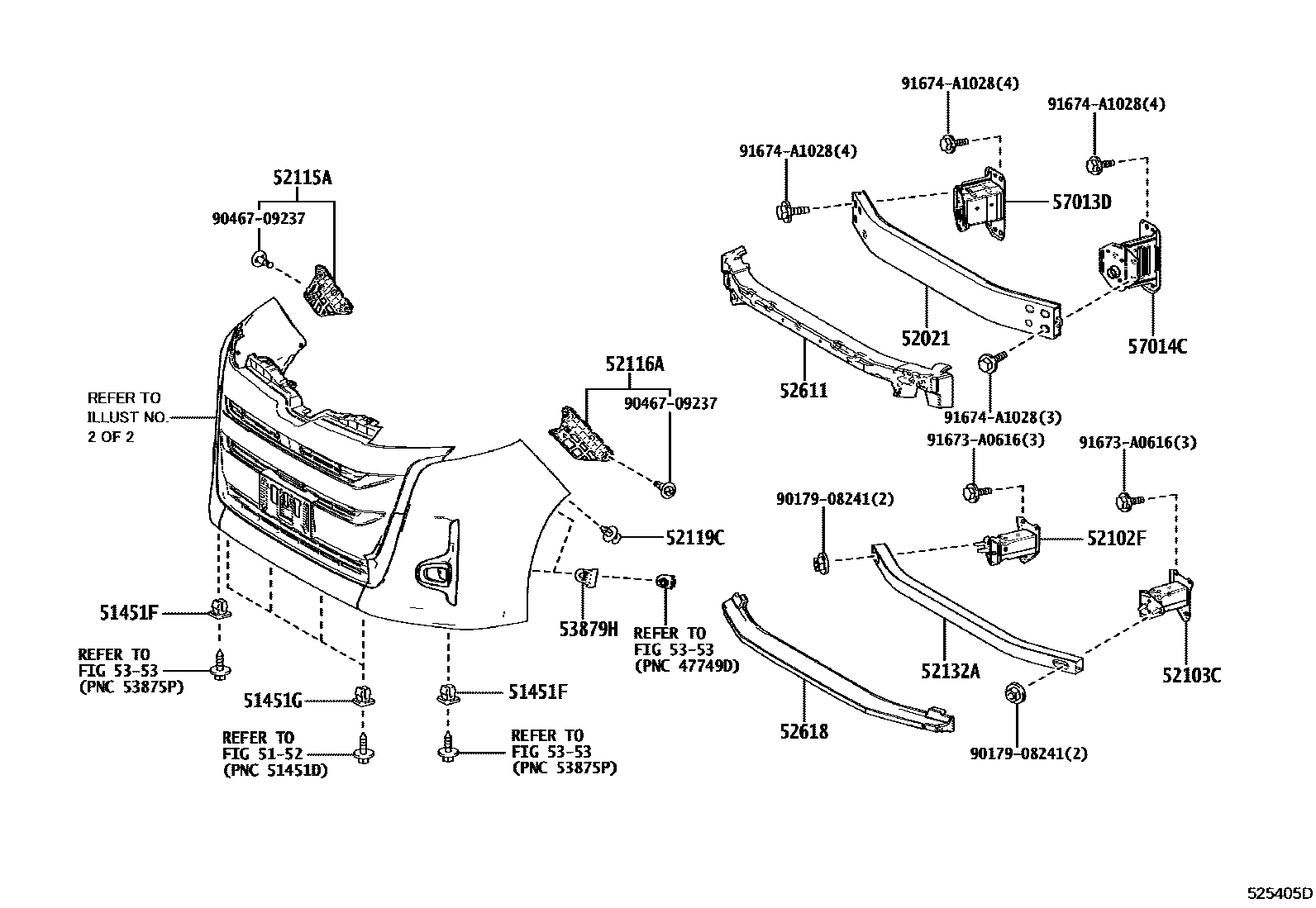

Toyota NOAH/VOXY — FRONT BUMPER & BUMPER STAY
51451FGROMMET, NO.1
51451GGROMMET, NO.2
5152SUSPENSION CROSSMEMBER & UNDER COVER
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52102FEXTENSION SUB-ASSY, FRONT BUMPER, RH
52103CEXTENSION SUB-ASSY, FRONT BUMPER, LH
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119CCLIP, FRONT BUMPER COVER
52132AREINFORCEMENT, FRONT BUMPER, NO.2
52611ABSORBER, FRONT BUMPER ENERGY
52618ABSORBER, FRONT BUMPER, LOWER
5353HOOD & FRONT FENDER
53879HRETAINER, FRONT FENDER LINER
57013DBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014CBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
9017908241
main90179-08241
9046709237
main90467-09237
91673A0616
main91673-A0616
91674A1028
main91674-A1028
20 parts on this diagram · 6 diagrams in section
FRONT BUMPER & BUMPER STAY for Toyota NOAH/VOXY
This section contains 38 genuine Toyota parts for the FRONT BUMPER & BUMPER STAY system of the Toyota NOAH/VOXY. Key components include: GROMMET, NO.1, GROMMET, NO.2, SUSPENSION CROSSMEMBER & UNDER COVER, REINFORCEMENT SUB-ASSY, FRONT BUMPER, EXTENSION SUB-ASSY, FRONT BUMPER, RH.
