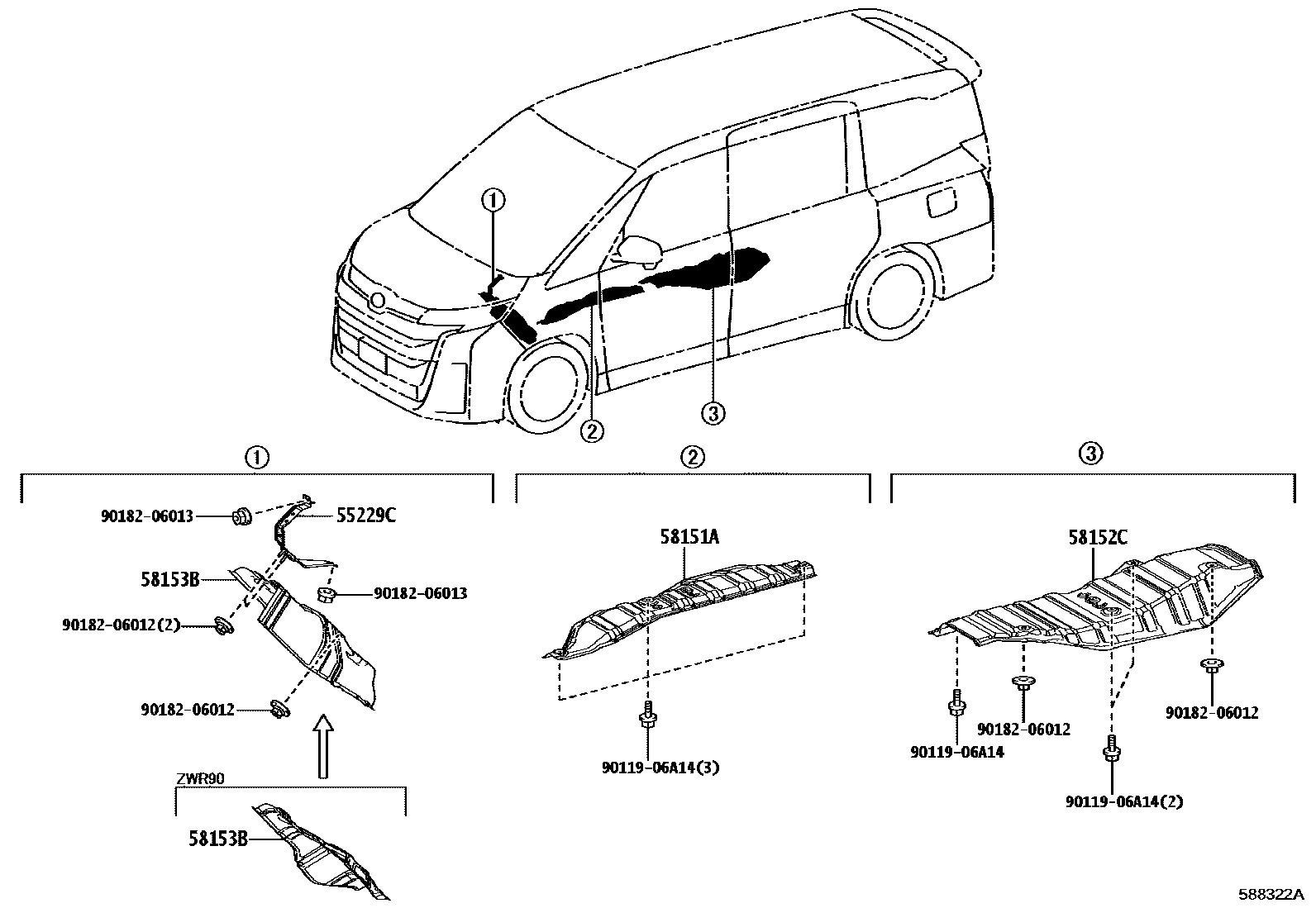

Toyota NOAH/VOXY — FLOOR INSULATOR

55229CPLATE, DASH PANEL INSULATOR, NO.4

main55204-V1010iMZRA90..S202201-202501

58151AINSULATOR, FLOOR HEAT, NO.1

main58151-V1011iMZRA90..S202201-202501

58152CINSULATOR, FLOOR HEAT, NO.2

main58152-V1010iMZRA90..S202201-202501

58153BINSULATOR, FLOOR HEAT, NO.3

main58153-V1010iMZRA90..S202201-202501

9011906A14

main90119-06A14

9018206012

main90182-06012

9018206013

main90182-06013

7 parts on this diagram · 1 diagram in section
