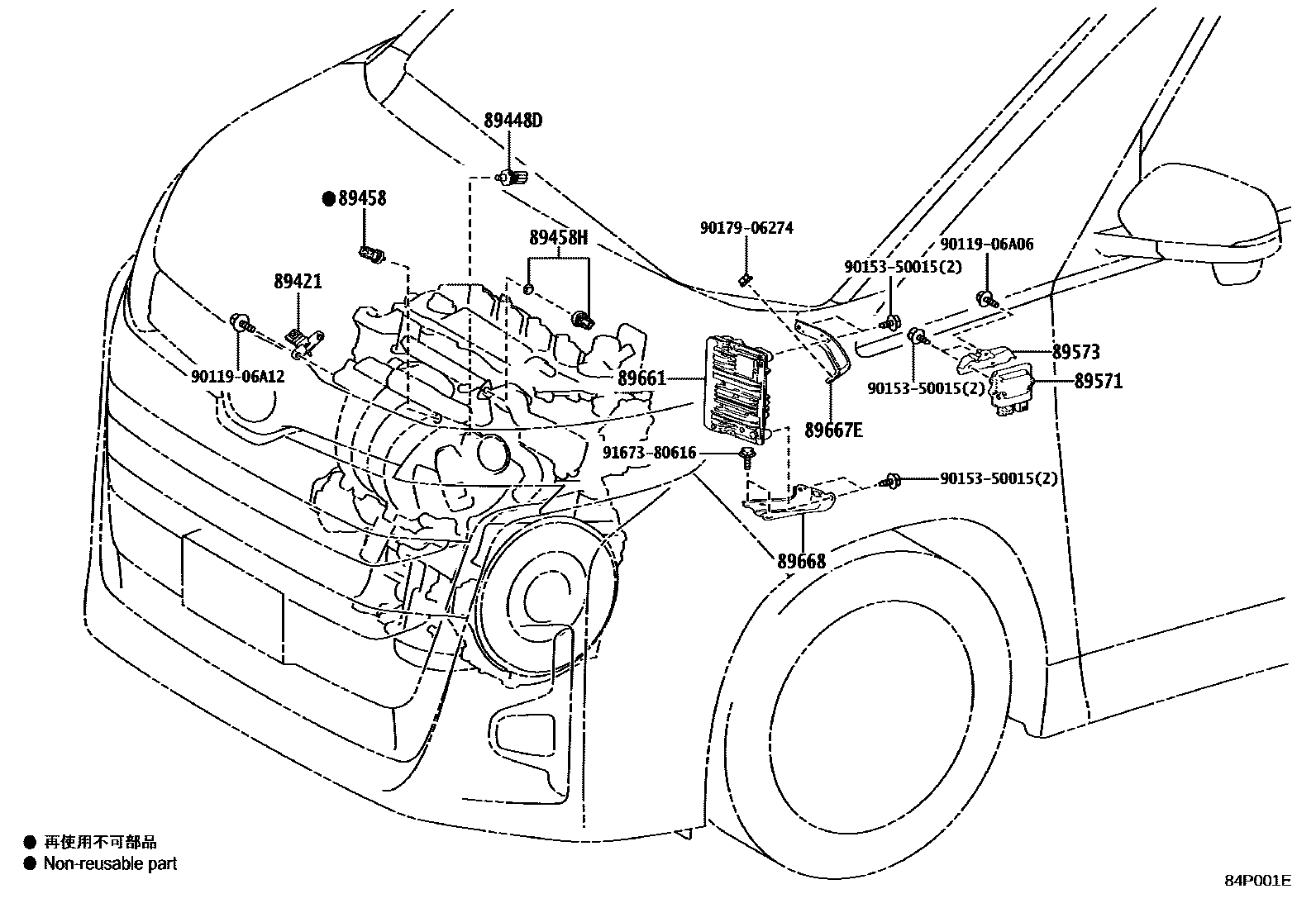

Toyota NOAH/VOXY — ELECTRONIC FUEL INJECTION SYSTEM
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89448DSENSOR, OIL PRESSURE & TEMPERATURE
89458SENSOR, FUEL PRESSURE
89458HSENSOR, FUEL PRESSURE, NO.2
89571COMPUTER, FUEL PUMP CONTROL
89573BRACKET, FUEL PUMP CONTROL COMPUTER
89661COMPUTER, ENGINE CONTROL
DENSO TEN,*614
DENSO TEN,*614
DENSO,*614
DENSO,*614
89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
9011906A06
main90119-06A06
9011906A12
main90119-06A12
9015350015
main90153-50015
9017906274
main90179-06274
9167380616
main91673-80616
14 parts on this diagram · 1 diagram in section
