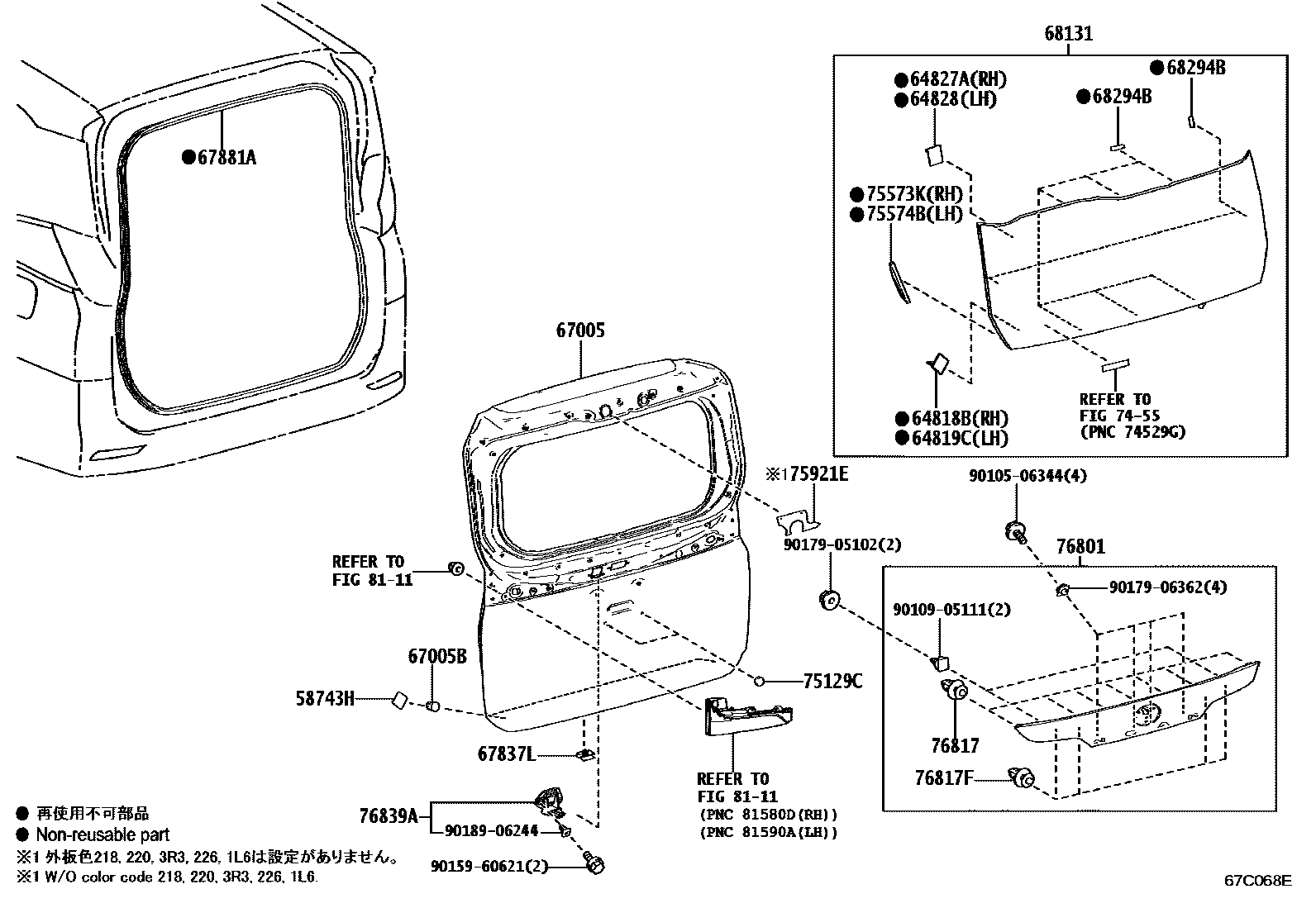

Toyota NOAH/VOXY — BACK DOOR PANEL & GLASS
58743HPROTECTOR, BACK DOOR PANEL
64818BSPACER, BACK DOOR GLASS, NO.1
64819CSPACER, BACK DOOR GLASS, NO.2
64827ACLIP, BACK WINDOW GLASS, RH
64828CLIP, BACK WINDOW GLASS, LH
67005PANEL SUB-ASSY, BACK DOOR
67005BCUSHION(FOR BACK DOOR PANEL)
67837LSEAL, DOOR DUST PROOF
68294BDAM, BACK DOOR GLASS ADHESIVE
7455CAUTION PLATE
75129CCUSHION, REAR LICENCE PLATE
75573KMOULDING, BACK WINDOW, OUTSIDE RH
75574BMOULDING, BACK WINDOW, OUTSIDE LH
75921ETAPE, BLACK OUT, NO.1 RH
76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE
76817CLIP, BACK DOOR OUTSIDE GARNISH
76817FCLIP, BACK DOOR OUTSIDE GARNISH, NO.2
76839ACOVER, BACK DOOR GARNISH
8111REAR COMBINATION LAMP
9010506344
main90105-06344
9010905111
main90109-05111
9015960621
main90159-60621
9017905102
main90179-05102
9017906362
main90179-06362
9018906244
main90189-06244
27 parts on this diagram · 3 diagrams in section
BACK DOOR PANEL & GLASS for Toyota NOAH/VOXY
This section contains 42 genuine Toyota parts for the BACK DOOR PANEL & GLASS system of the Toyota NOAH/VOXY. Key components include: PROTECTOR, BACK DOOR PANEL, SPACER, BACK DOOR GLASS, NO.1, SPACER, BACK DOOR GLASS, NO.2, CLIP, BACK WINDOW GLASS, RH, CLIP, BACK WINDOW GLASS, LH.
