Toyota NOAH/VOXY — ALTERNATOR

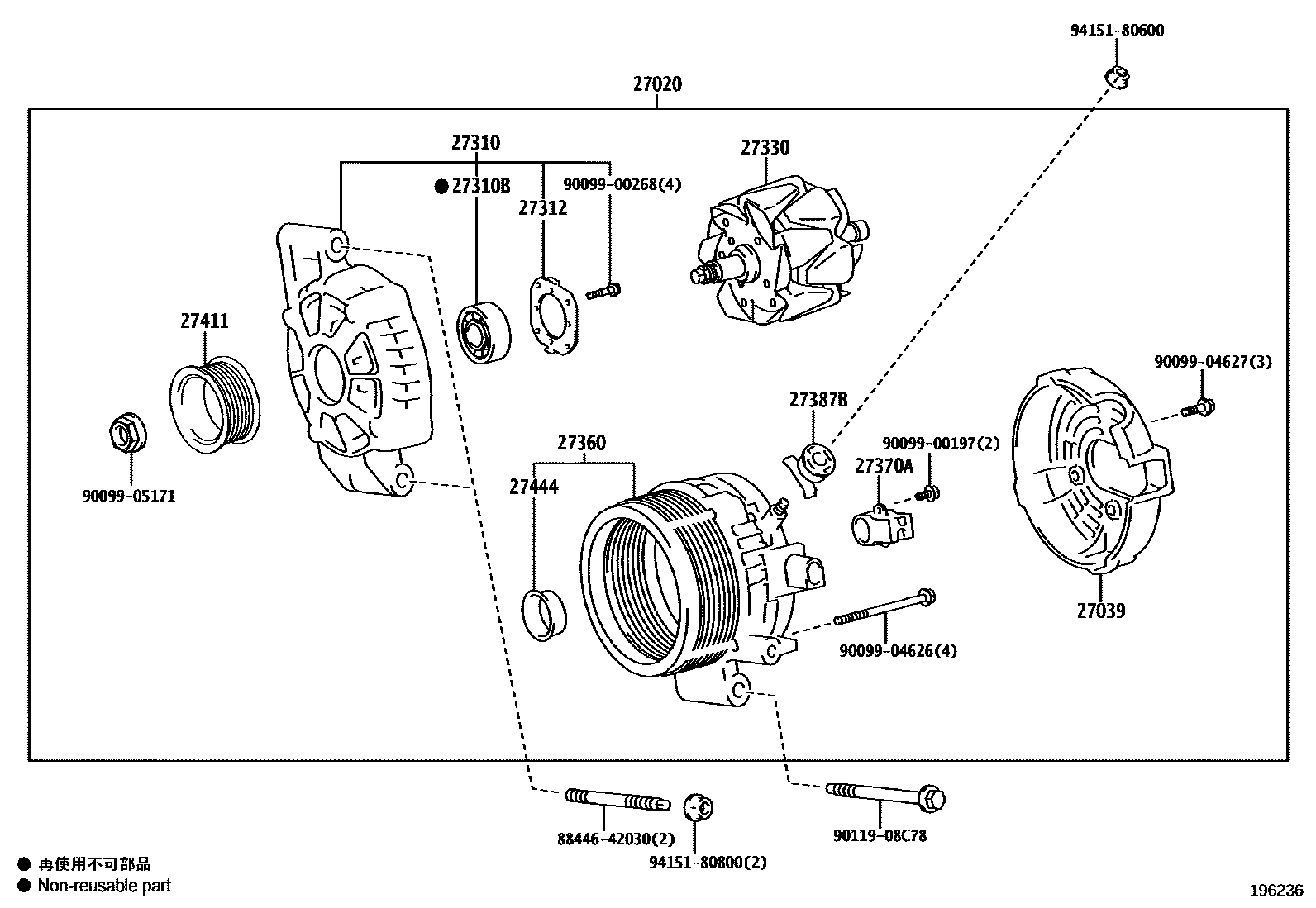

Parts diagram

27020ALTERNATOR ASSY

main27060-24070i202201-202501

12V 130A

27039COVER, ALTERNATOR REAR END

main27039-37220i202201-202501

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24130i202201-202501

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i202201-202501

27312PLATE, RETAINER

main27312-72100i202201-202501

27330ROTOR ASSY, ALTERNATOR

main27330-37220i202201-202501

27360COIL ASSY, ALTERNATOR

main27360-24130i202201-202501

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i202201-202501

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-20130i202201-202501

27411PULLEY, ALTERNATOR

main27411-50190i202201-202501

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190i202201-202501

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9009905171

main90099-05171

9011908C78

main90119-08C78

9415180600

main94151-80600

9415180800

main94151-80800

20 parts on this diagram · 1 diagram in section
